Overview

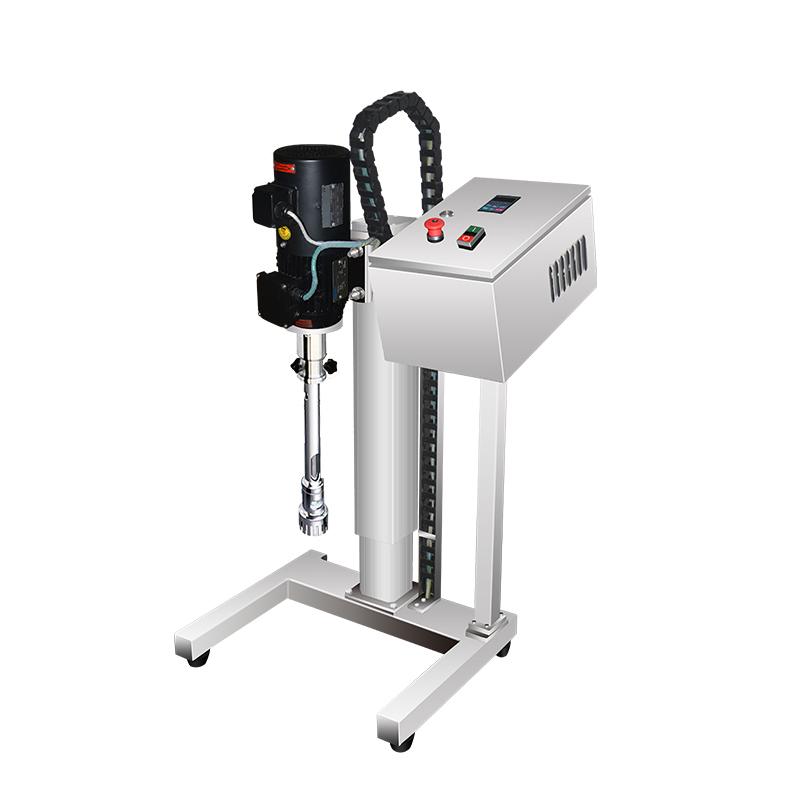

HUXI HR-60Z/60T5 (Electric Lifting) Pilot High Shear Dispersion Mulser is designed for pilot, simulation production and small batch production in factories. The working head is matched by a high-speed swirl/spin rotor and a precise stator working chamber. It relies on high-line speed to generate strong hydraulic shearing, centrifugal extrusion, high-speed cutting and collision, so that the material is fully dispersed, emulsified, homogenized, crushed and mixed in one go, and finally a stable and qualified product is obtained.
Features
1. A variety of working heads are available to meet different experimental requirements.
2. Rotation speed adopts frequency conversion speed regulation and digital Display mode, the minimum can reach 50rpm;
3. Electric hydraulic lifting mode, easy to operate and easy to use;
4. The high-speed variable-frequency motor realizes the variable-frequency start-up protection function, meeting the requirements of continuous operation in the experiment.
5. The instrument is equipped with a red mushroom head emergency stop button. When the machine is in a malfunctioning state, use this button to cut off the power supply, so that the equipment stops running immediately, achieving the role of protecting personal and equipment safety.
6. Wide range of applications: Fine chemicals, Petrochemicals, pesticides and fertilizers, biology, Household chemicals, food industry and other fields.
Principle
The working head is composed of a high-speed swirl/spin rotor and a precise stator working chamber, which relies on high linear speed to generate strong hydraulic shearing, centrifugal extrusion, high-speed cutting and collision, so that the material is fully dispersed, emulsified, homogenized, and crushed.
Applications
Fine Chemicals, Petrochemicals, Pesticides and Fertilizers, Biology, Household chemicals, Food Industry
Steps
1. Select the appropriate working head.
2. Set the frequency conversion speed regulation to the required Rotation speed;
3. Use the electro-hydraulic lifting method to adjust the position of the working head;
4. Start the equipment for dispersion, emulsification, homogenization, crushing and mixing operations;
5. Use the emergency stop button to cut off the power in the event of a failure.
Notice
• Power supply voltage 220V 50HZ;
• Permissible Ambient Temperature 5~ 40 ℃;
• Allowable relative humidity not exceeding 80%;
• The maximum processing viscosity does not exceed 8000CP;
• Use the emergency stop button to protect safety in the event of a failure.
• Avoid overload operation to take advantage of overload protection.
