Overview

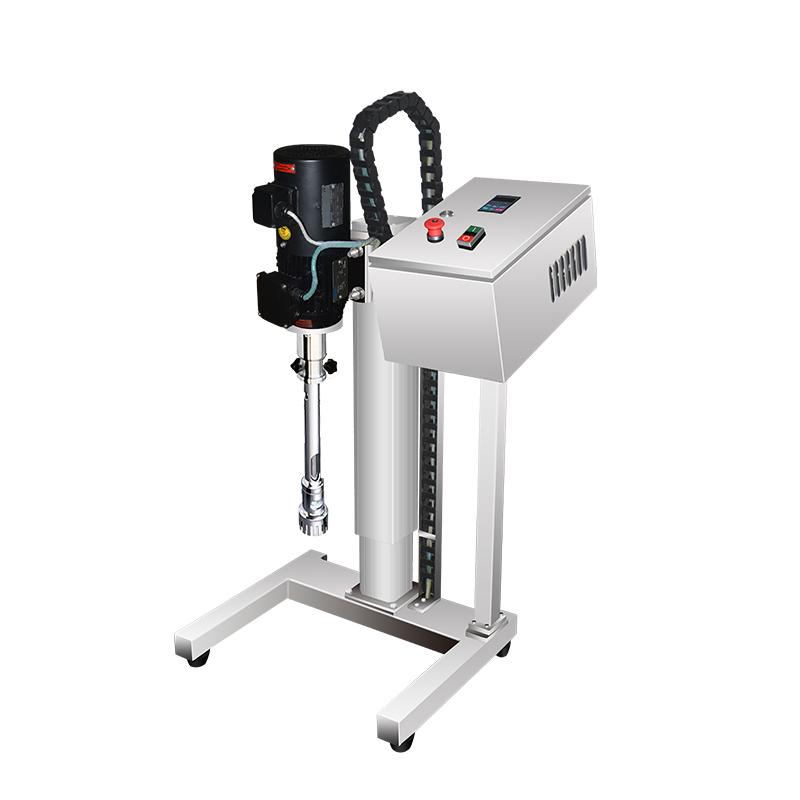

HUXI HR-90Z/90T2 (Electric Lifting) Pilot High Shear Dispersion Mulser is designed for pilot, simulation production and small batch production in factories. The working head is made of a high-speed swirl/spin rotor and a precise stator working chamber. It relies on high-line speed to generate strong hydraulic shearing, centrifugal extrusion, high-speed cutting and collision, so that the material is fully dispersed, emulsified, homogenized, crushed and mixed in one go, and finally a stable and qualified product is obtained.
Features
1. A variety of working heads are available to meet different experimental needs
2. Rotation speed adopts frequency conversion speed regulation and digital Display mode, the minimum can reach 50rpm
3. Electro-hydraulic lifting method, easy to operate and easy to use
4. The high-speed variable frequency motor realizes the variable frequency start protection function, meeting the requirements of continuous operation in the experiment
5. The instrument is equipped with a red mushroom head emergency stop button. When the machine is in a faulty state, use this button to cut off the power supply, so that the equipment stops running immediately, achieving the role of protecting personal and equipment safety
6. Wide range of applications: Fine chemicals, Petrochemicals, pesticides and fertilizers, biology, Household chemicals, food industry and other fields
Principle
The working head is composed of a high-speed swirl/spin rotor and a precise stator working chamber, which relies on high linear speed to generate strong hydraulic shearing, centrifugal extrusion, high-speed cutting and collision, so that the material is fully dispersed, emulsified, homogenized, and crushed.
Applications
Fine Chemicals, Petrochemicals, Pesticides and Fertilizers, Biology, Household chemicals, Food Industry
Steps
1. Select the appropriate working head according to the experimental requirements
2. Set frequency conversion speed regulation parameters, adjust Rotation speed through digital display
3. Use the electro-hydraulic lifting method to adjust the position of the working head
4. Start the device for decentralized emulsification
5. In case of failure, press the red mushroom head emergency stop button to cut off the power supply.
Notice
• Permissible Ambient Temperature 5~ 40 ℃, relative humidity not more than 80%
• Maximum processing viscosity is 8000CP, working head viscosity is 6000mpas
• Processing capacity is 10~ 50L
• Power supply voltage 220V 50HZ
Equipment with overload protection function
• The process type is batch processing
• Encasement method is wooden box
