Overview

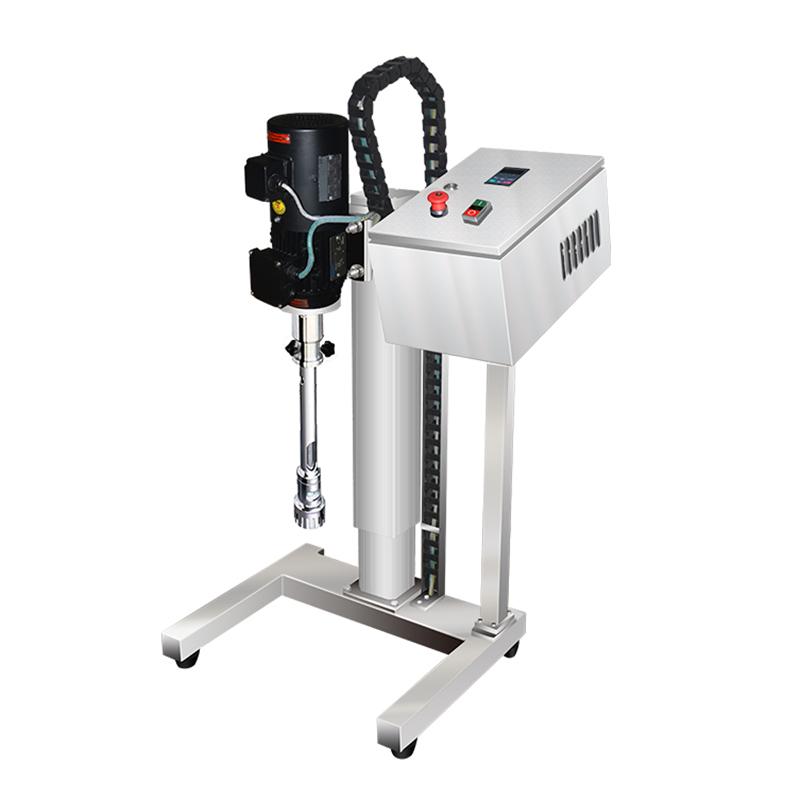

HUXI HR-90Z/90JQ (Electric Lifting) Pilot High Shear Dispersion Mulser is designed for pilot, simulation production and small batch production in factories. The working head is made of high-speed swirl/spin rotor and precision stator working chamber, relying on high line speed to generate strong hydraulic shear, centrifugal extrusion, high-speed cutting and collision, so that the material is fully dispersed, emulsification, homogenization, crushing and mixing in one go, and finally a stable and qualified product is obtained.
Features
1. A variety of working heads are available to meet different experimental requirements.
2. Rotation speed adopts frequency conversion speed regulation and digital Display mode, the minimum can reach 50rpm;
3. Electric hydraulic lifting mode, easy to operate and easy to use;
4. The high-speed variable-frequency motor realizes the variable-frequency start-up protection function, meeting the requirements of continuous operation in the experiment.
5. The instrument is equipped with a red mushroom head emergency stop button. When the machine is in a malfunctioning state, use this button to cut off the power supply, so that the equipment stops running immediately, achieving the role of protecting personal and equipment safety.
6. Wide range of applications: pipe fine chemicals, Petrochemicals, pesticides and fertilizers, biology, Household chemicals, food industry and other fields.
Principle
The working head is composed of a high-speed swirl/spin rotor and a precise stator working chamber, which relies on high linear speed to generate strong hydraulic shearing, centrifugal extrusion, high-speed cutting and collision, so that the material is fully dispersed, emulsified, homogenized, and crushed.
Applications
Fine Chemicals, Petrochemicals, Pesticides and Fertilizers, Biology, Household chemicals, Food Industry
Steps
1. Select the appropriate working head.
2. Set the variable frequency speed regulation parameters;
3. Use the electro-hydraulic lifting method to adjust the working position;
4. Start the equipment for decentralized emulsification operation;
5. Use the red mushroom head emergency stop button in case of emergency.
Notice
• Power supply voltage 220V 50HZ;
• Processing capacity range is 10~ 50L;
• The maximum processing viscosity does not exceed 8000CP;
• Speed range is controlled at 50~ 4000rpm;
• Permissible Ambient Temperature 5~ 40 ℃;
• Allowable relative humidity not exceeding 80%;
• Use the emergency stop button to cut off the power supply in the event of a failure;
• Note that the motor protection level is IP54;
• Batch processing process type;
• Travel is 600mm.
