Overview

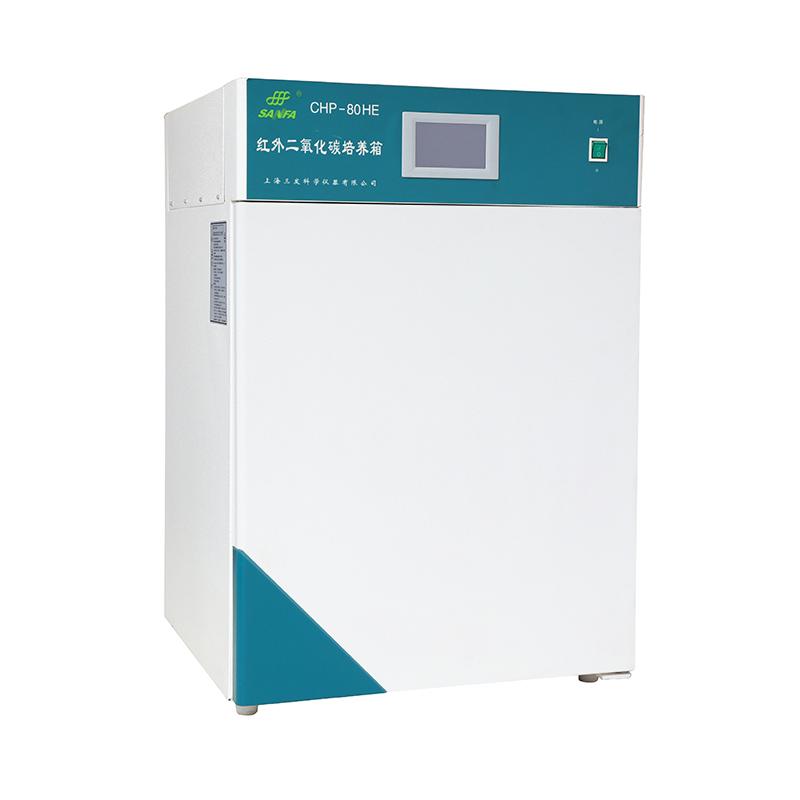

The SANFA CHP-80S Co2 Incubator is a professional instrument designed to foster cells, tissues and bacteria with Water-jacketed Heating mode and an intelligent controller that ensures precise temperature and CO2 concentration control.
Features
1. Microcomputer intelligent controller, integrated temperature control, CO2 gas, door temperature, water level, UV Lamp, timing control and over temperature, water level, Safety protection alarm function
2. The CO2 inlet is equipped with a microbial effective Filter, which can penetrate 99.99% of the 0.3um particles, effectively penetrating bacteria and dust (optional)
3. Built-in ultraviolet sterilization lamp, which can be disinfected regularly to kill floating bacteria in circulating air and humidifying disc water vapor to prevent pollution
4. Glass door heating to prevent condensation formation and reduce the risk of microbial contamination
5. Antibacterial stainless steel liner, four-corner arc design, easy to clean, adjustable shelf
6. Upgraded touch color screen intelligent temperature control instrument supports programmable, running Linear dispersion display, temperature/Humidity /CO2 concentration three groups Linear dispersion view and abnormal alarm switch function, more accurate temperature control, equipped with imported infrared concentration Probe, CO2 concentration is more stable
7. Optional RS-485 interface, connect printer and computer to record temperature parameter changes (optional)
Principle
The Co2 incubator precisely adjusts the temperature and CO2 concentration in the box through the intelligent controller, and uses the natural evaporation Humidification mode to maintain Humidity. CO2 gas enters the box through the microbial Filter, the infrared Sensor monitors the concentration, and the UV Lamp regularly sterilizes to ensure the stable and sterile foster environment.
Applications
Microbial research, agricultural scientific research, tissue and cell fostering, AIDS research, tumor research, heart disease research, virus propagation, bacterial fostering, genetic engineering, testtube babies, cloning technology, immunology
Steps
1. Connect the power supply to ensure that the working Ambient Temperature is within the range of + 5~ 35 ℃
2. Set intelligent controller parameters, including temperature, CO2 concentration, timing, etc
3. Turn on the CO2 intake system and check the Filter status (if optional)
4. Start the UV sterilization lamp for disinfection in the box
5. Place the foster on the adjustable shelf and close the box door
6. Monitor operation Linear dispersion and alarm function to ensure parameter stability
7. Clean the liner after use and maintain it regularly
Notice
• Power supply voltage 220V 50Hz to avoid overload
• Ambient Temperature should be kept at + 5~ 35 ℃ to prevent equipment failure
• Regularly check CO2 Intake Filter and UV Lamp to ensure effective operation
• Avoid frequent opening of doors to reduce CO2 concentration fluctuations and pollution risks
• Use mild detergent when cleaning to avoid damage to the antibacterial stainless steel liner
• Monitor the alarm function to deal with overtemperature, abnormal water level, etc. in a timely manner
• Optional functions such as RS-485 interface need to be installed and used according to instructions
