Overview

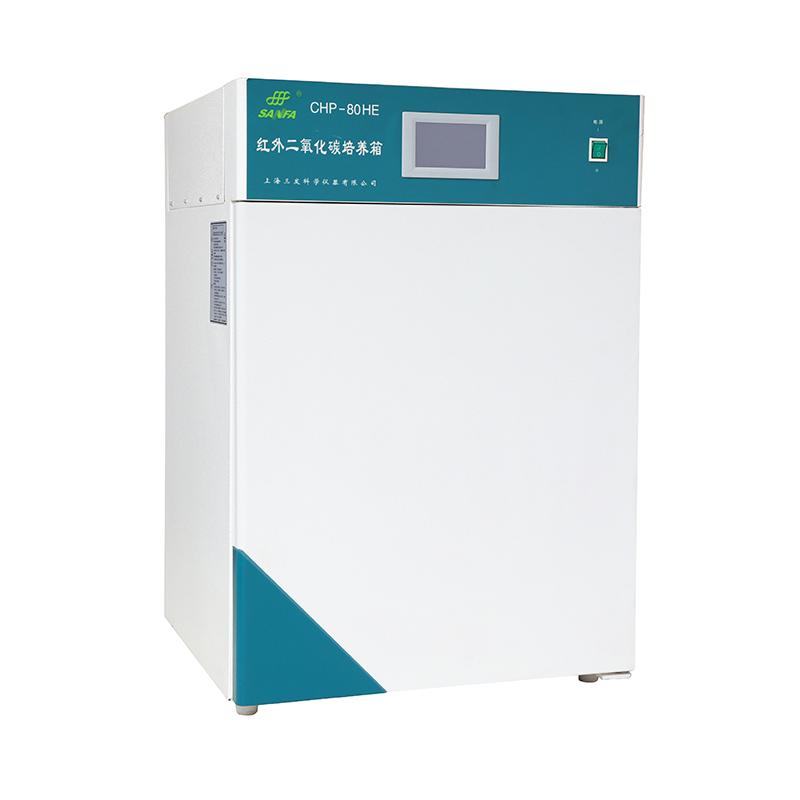

The SANFA CHP-80E Co2 Incubator is a specialized instrument for cell, tissue and bacterial fostering, using intelligent control technology with precise temperature, CO2 concentration control and multiple Safety protection functions.
Features
1. Microcomputer intelligent controller, integrated temperature control, CO2 gas, door temperature, water level, UV Lamp, timing control and over temperature, water level, Safety protection and alarm functions.
2. The CO2 inlet is equipped with a microbial effective Filter, which has an efficiency of 99.99% for 0.3um particles and effectively filtrates bacteria and dust (optional).
3. Built-in ultraviolet sterilization lamp, which can regularly disinfect the box to kill floating bacteria in the circulating air and humidifying disc water vapor to prevent pollution.
4. The heating function of the box door prevents the condensation of the inner Glass door and reduces the risk of microbial contamination.
5. Antibacterial stainless steel liner, four-corner arc design, easy to clean, adjustable shelf.
6. Upgraded touch color screen intelligent temperature control instrument, supports programming, operation Linear dispersion display, temperature/Humidity /CO2 concentration Linear dispersion view and abnormal alarm, temperature control is more accurate, CO2 concentration is more stable, Safety protection is perfect.
7. Optional RS-485 interface, connecting printer and computer to record temperature parameter changes.
Principle
The Co2 incubator precisely adjusts the temperature, CO2 concentration and Humidity in the box through a microcomputer intelligent controller, and monitors the CO2 concentration with an infrared Sensor to ensure uniformity and Stability. The UV sterilization lamp is regularly disinfected, the CO2 intake Filter removes impurities, and the box door heating prevents condensation, providing a sterile, constant environment for cell fostering.
Applications
Microbial research, agricultural scientific research, tissue and cell fostering, AIDS research, tumor research, heart disease research, virus propagation, bacterial fostering, genetic engineering, testtube babies, cloning technology, microbiology, immunology
Steps
1. Connect the power supply to ensure that the Working Ambient Temperature is within the range of + 5~ 35 ℃.
2. Turn on the device and set the temperature (RT + 5~ 60 ° C) and CO2 concentration (0~ 20%) through the intelligent controller.
3. Start the UV sterilization lamp for regular disinfection.
4. Place the foster on the adjustable shelf and close the box door.
5. Monitor the operating status and deal with any abnormal alarms in a timely manner.
6. Optional connection to a computer or printer to record parameters.
Notice
• Power supply voltage is 220V 50Hz to avoid voltage instability.
• Ambient Temperature should be kept at + 5~ 35 ℃, beyond the range may affect performance.
• Regularly check the CO2 Intake Filter and replace it in time if there is any contamination (optional function).
• When using UV sterilization lamps, avoid direct exposure to prevent damage.
• When cleaning the liner, use the arc design for easy operation and avoid the use of corrosion cleaners.
• Monitor CO2 concentration and temperature to prevent over limit alarms.
• After the box door is closed, ensure that the heating function is normal and prevent condensation from forming.
