Overview

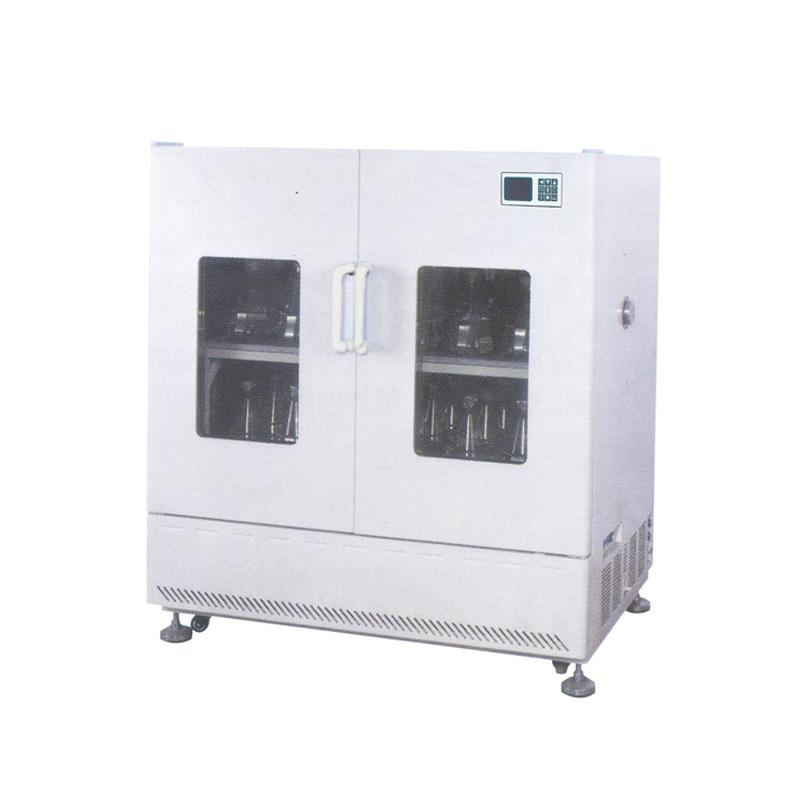

SANFA ZHP-Y2122F double-decked thermostatic Shaker is an intelligent device that integrates thermostatic foster and oscillation. It is widely used in bacterial foster, fermentation, hybridization, biochemical reaction and enzyme and cell tissue research that require temperature and Oscillation Frequency. It can perform motion and static foster on microbial cells and various strains.
Features
1. Set thermostatic foster and oscillation in one machine dual-use.
2. Microcomputer Control Temperature and Oscillation Frequency, With Timing Function, LCD Display Display Temperature and Frequency in Real Time, With Over Temperature, Power Outage, Leakage, Sensor Fault Alarm Functions.
3. The Compressor and circulating fan use imported products, environmentally friendly and fluorine-free refrigeration.
4. AC brushless motor, long life, wide speed regulation, constant torque, constant Rotation speed, maintenance-free.
5. Concept aesthetic design, with observation window, liner and Shaker Table are made of antibacterial stainless steel, four corners arc for easy cleaning.
6. Equipped with a door switch, the oscillation system stops working when the box door is opened, and automatically starts when it is closed.
7. Rotation speed circuit is reasonably controlled to ensure that the Shaker starts slowly and accelerates smoothly to prevent liquid splashing.
8. Independent temperature limit alarm system (optional), automatically cut off the power supply when the temperature exceeds the limit.
9. The upgraded model can be equipped with an optional RS-485 interface to connect a printer and a computer to record temperature parameters.
Principle
The Microcomputer Control system precisely adjusts the Temperature and Oscillation Frequency to foster oscillation in a thermostatic environment. The equipment adopts a rotary oscillation method combined with environmentally friendly fluorine-free refrigeration technology to ensure Temperature uniformity and Stability, while ensuring safe operation through intelligent protection mechanisms.
Applications
Bacterial fostering, fermentation, hybridization, biochemical reactions, enzyme research, cell tissue research
Standards
No specific criteria are mentioned
Steps
1. Connect the power supply (~ 220V 50Hz).
2. Set the required temperature (4~ 60 ℃) and Oscillation Frequency (30~ 300rpm).
3. Set the Timer Range (1~ 9999min) as needed.
4. Place the sample on the tray and close the box door to automatically start the oscillation.
5. Monitor operating parameters through the LCD display.
Notice
• Ambient Temperature should be kept between 10 and 30 ° C.
• The oscillation system automatically stops when the box door is opened, and automatically starts when it is closed.
• Avoid over-temperature operation, optional independent temperature limit alarm system.
• Power supply voltage meets requirements (~ 220V 50Hz) before use.
• Pay attention to the stainless steel material of liner and Shaker Table when cleaning, and use the four-corner arc design for easy operation.
