Overview

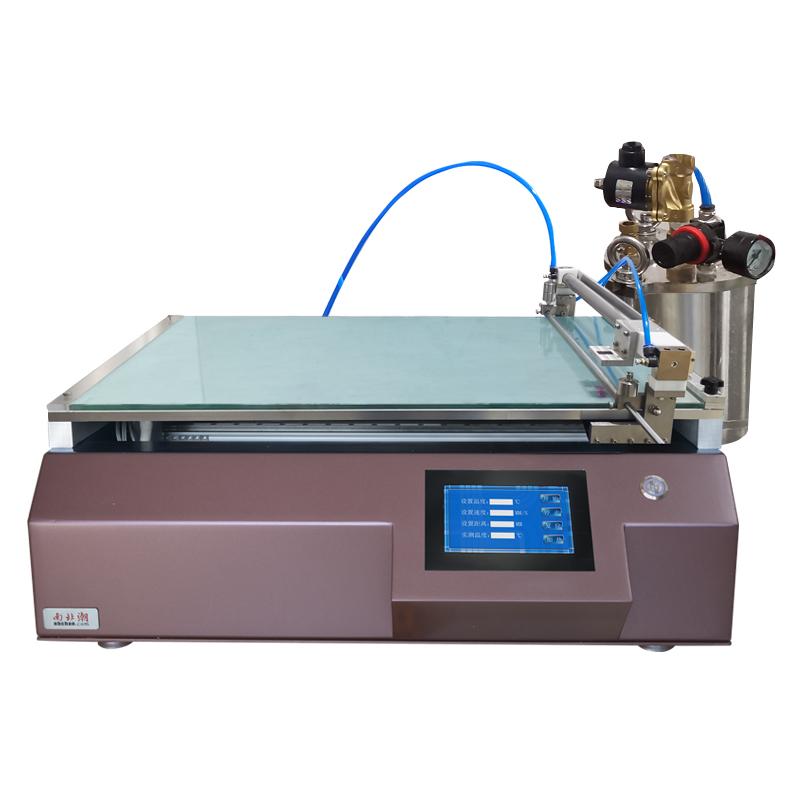

Touch Lab TBJ-A1 bar Lab Film Applicator is China Automatic Film Applicator, model TBJ-A1-DJ1, a newly upgraded product, used to Spreader accurate wet-film on different substrates, and can repeatedly and continuously prepare smooth, flat and flawless test samples. It has been favored by many enterprises, R & D institutions and Universities & colleges.
Features
1. The coating method is bar Spreader, the thickness range is 1~ 571.5μm, and the accuracy is +/- 0.001mm.
2. coating speed 5~ 200mm/s, can be customized less than 5mm/s
3. effective coating area 800 * 480mm, can be customized
4. Control mode is LCD Touchscreen, the base material is fixed with mechanical fixture
5. Add Mixing Tank volume 1L, equipped with automatic mixing function, the material is 304 stainless steel with wall thickness of 4mm
6. The feeding system adopts the principle of air source pressure outflow, and the motion mode is reciprocating linear motion, with a speed of 2~ 150mm/s.
7. The amount of material can be adjusted by adjusting the air pressure and the running speed of the discharge port
8. A variety of Accessories can be selected, such as leakage tank, substrate fixing fixture, fine-tuning horizontal height support foot device, etc
9. Customizable functions include automatic lame plating device, UV curing device, air knife drying, remote control, upper infrared heating, double extrusion Spreader
Principle
The equipment adopts the bar coating method and realizes the Spreader movement through the synchronous belt shaft drive. The feeding system uses the air source pressure to flow the material out of the Mixing Tank, adopts the reciprocating linear motion mode, and controls the spitting volume by adjusting the air pressure and the running speed of the discharge port to ensure the uniform and accurate Spreader.
