JINGKELIAN QXP 0-100S ISO double-channel GrindoMeter stainless steel material 0~ 100μm range

Name: JINGKELIAN QXP 0-100S ISO double-channel GrindoMeter stainless steel material 0~ 100μm range
Brand: JingKeLian
SKU: NB037187
Price: 251.0 USD
Availability: InStock

$ 251.00Ex works

Adopt double-channel design, range 0~ 100 μm, Graduation 10 µm, stainless steel material, surface roughness Ra1.6, suitable for accurate particle fineness determination.

Model

Get Quote

Category : Fineness Gauge

Brand : JingKeLian

SKU : NB037187

Service :The delivery and service By NBCLab.Com

Overview

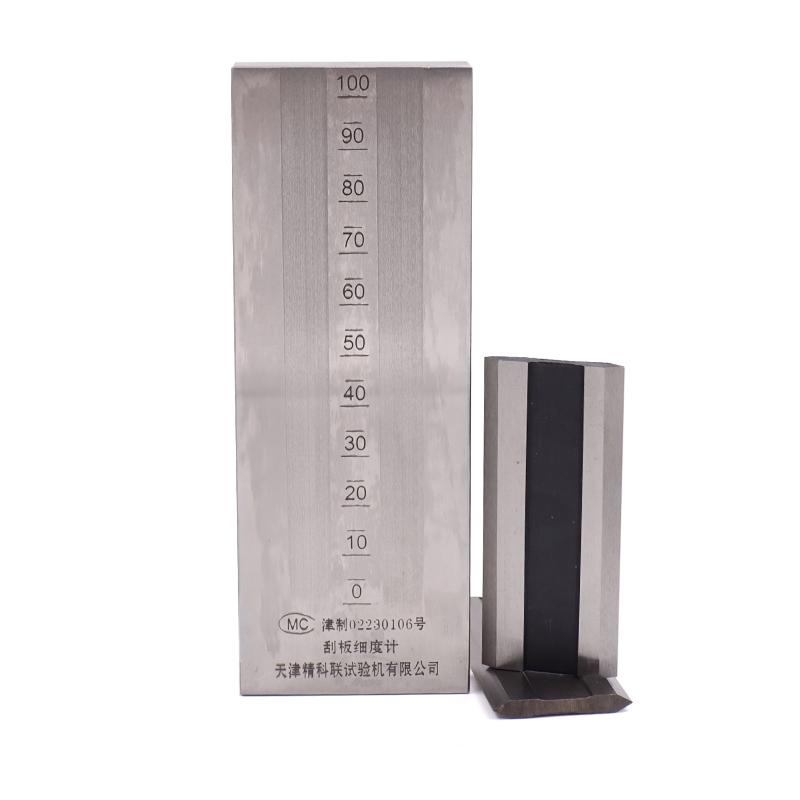

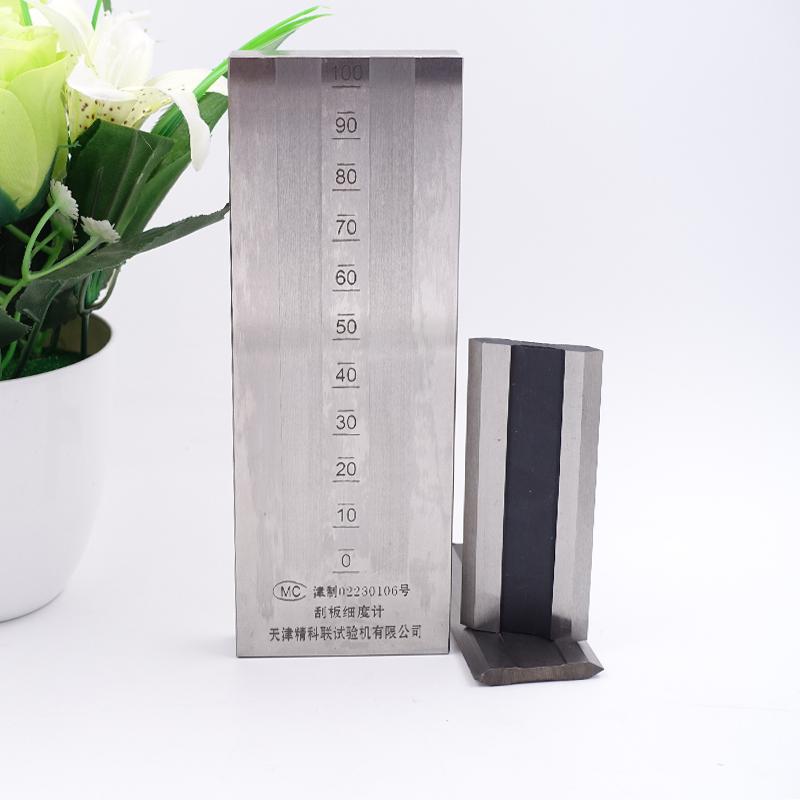

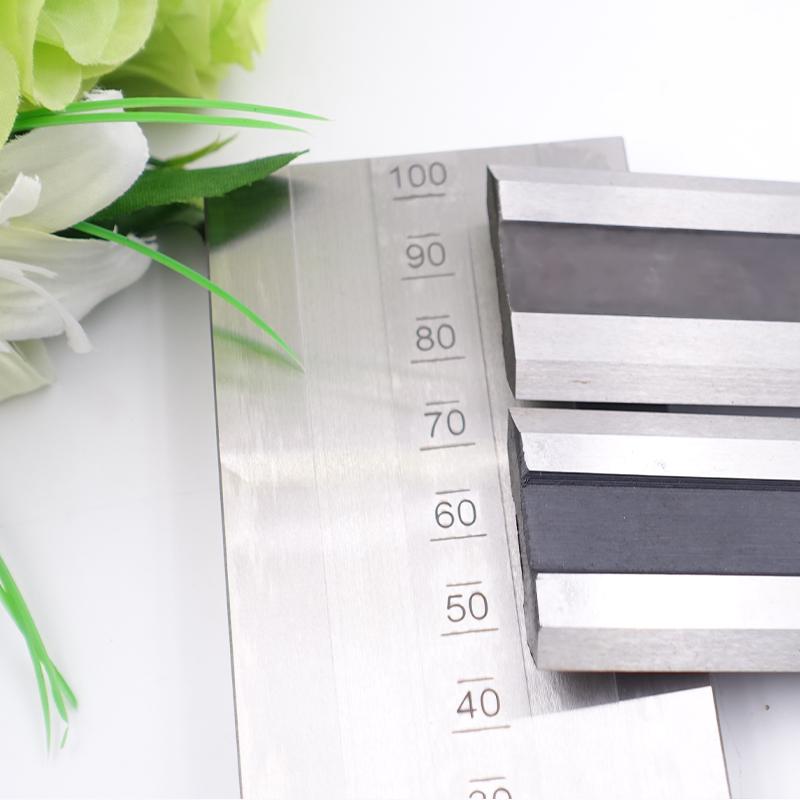

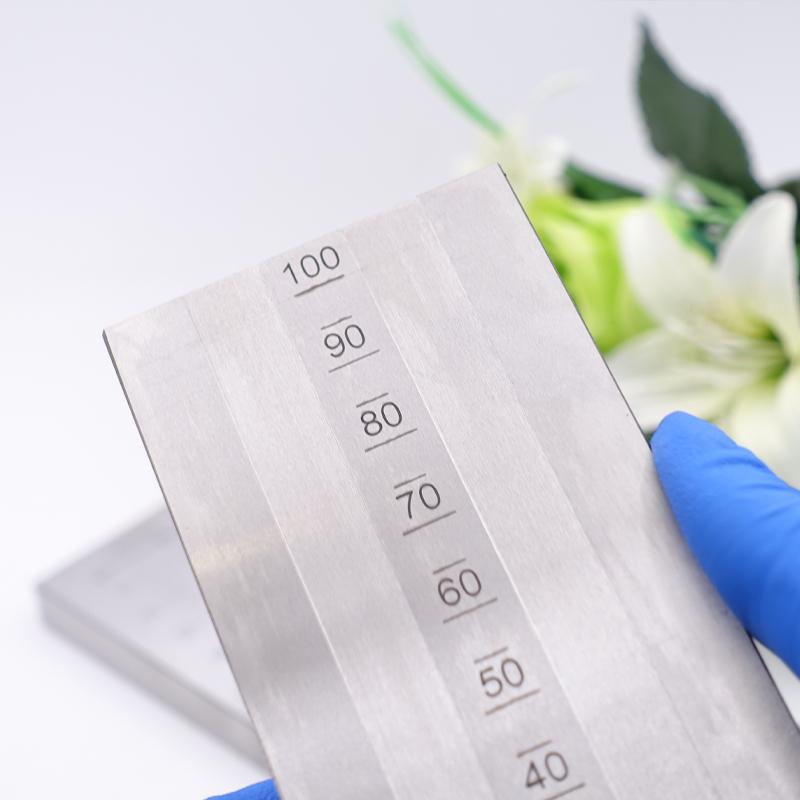

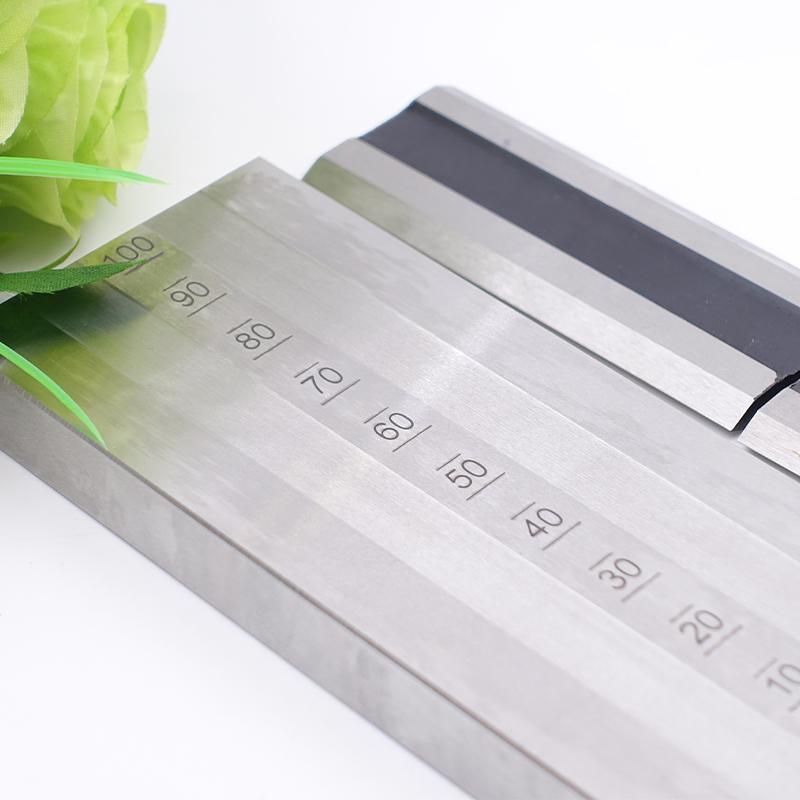

JINGKELIAN QXP 0-100S ISO double-channel Grindometer is manufactured according to the relevant provisions of the international standard ISO1524-1983 (E) for the determination of particle fineness of Paints and related products. The model has a double-channel structure with a range of 0 to 100 μm and a Graduation of 10 µm.

Features

1. double-channel design, suitable for different measurement needs 2. Stainless steel material, strong durability 3. Accurate marking standard error and groove ratio error control 4. The surface roughness reaches Ra = 1.6 5. The front of the scraper can be used for daily inspection of the straightness of the drawdown blade

Principle

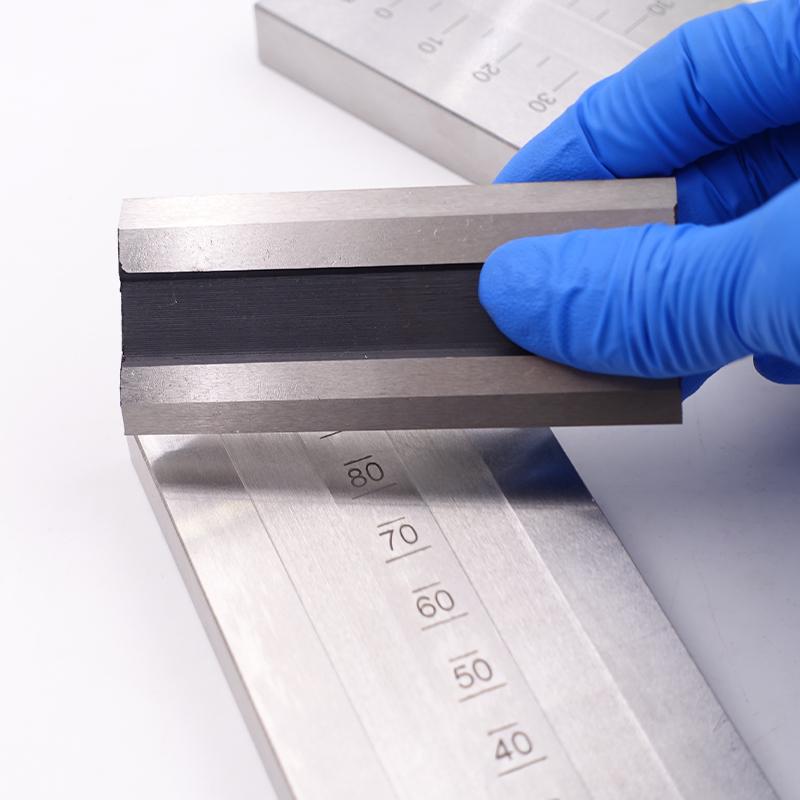

The Grindometer measures particle fineness according to the distribution of the sample on the scale online by placing the sample in the scraper groove and scraping the surface of the sample with a drawdown blade. The double-channel design provides more accurate measurement results.

Applications

Determination of particle fineness of Paints and related products

Standards

ISO1524-1983(E)

Steps

1. Place the sample in the scraper groove 2. Use a drawdown blade to flatten the sample surface 3. Read the fineness value displayed on the scale online 4. Record measurement results

Notice

• The front of the scraper can be used for daily inspection of the straightness of the drawdown blade • Wash the drawdown blade after use, apply anti-rust oil and store it in the box • The front of the scraper and the edge of the drawdown blade must not be bumped • Grindometer should be inspected by our factory after one year of use

Scraper Type
double-channel
Range
0~100μm
Scale unit
μm
Graduation
10µm
Scraper material
stainless steel
Scraper Size
175*65*13mm
Groove Size
140*12.5mm
Drawdown blade Size
90*40*6mm
Applicable standard
ISO1524-1983(E)
