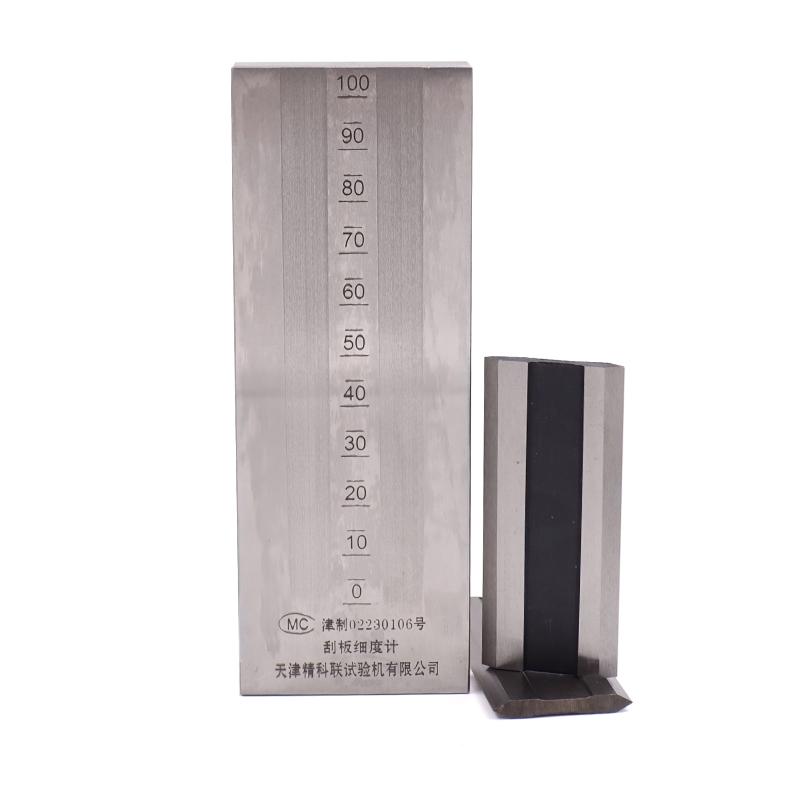

JINGKELIAN QXP 0-25S ISO double-channel GrindoMeter Graduation 2.5µm

Name: JINGKELIAN QXP 0-25S ISO double-channel GrindoMeter Graduation 2.5µm
Brand: JingKeLian
SKU: NB037189
Price: 260.0 USD
Availability: InStock

$ 260.00Ex works

With double-channel design, Graduation 2.5 µm, range 0-25 µm, surface roughness Ra1.6, drawdown blade linear tolerance 2 µm, suitable for fine particle determination.

Model

Get Quote

Category : Fineness Gauge

Brand : JingKeLian

SKU : NB037189

Service :The delivery and service By NBCLab.Com

Overview

JINGKELIAN QXP 0-25S ISO double-channel Grindometer is manufactured in accordance with the relevant provisions of international standard ISO1524-1983 (E) for the determination of particle fineness of Paints and related products. The product is a double-channel Grindometer with a range of 0 to 25 μm and a Graduation of 2.5 µm.

Features

1. Adopt double-channel design 2. Made of stainless steel 3. High Accuracy measurement 4. Compliance with international standards

Principle

Grindometer is scraped on the scraper groove by drawdown blade, and the particle fineness is measured according to the particle distribution of Paints in the groove. The front of the scraper can be used for daily inspection of the straightness of the drawdown blade.

Applications

Determination of particle fineness of Paints and related products

Standards

ISO1524-1983(E)

Notice

• The front of the scraper can be used for daily inspection of the straightness of the drawdown blade • Wash the drawdown blade after use, apply anti-rust oil and store it in the box • The front of the scraper and the edge of the drawdown blade must not be bumped • Grindometer should be inspected by our factory after one year of use

Scraper Type
double-channel
Range
0~25μm
Scale unit
μm
Graduation
2.5μm
Scraper material
stainless steel
Scraper Size
175*65*13mm
Groove Size
140*12.5mm
Drawdown blade Size
90*40*6mm
Applicable standard
ISO1524-1983(E)

[Q] Is the price listed on the website the final cost for overseas purchases?

[A] No, it isn't. This is the ex-factory price of the product in the Chinese Mainland. In addition to this price, buyers from different countries need to account for additional costs such as shipping fees, tariffs, and others. For specific regional quotes, please consult our customer service or fill out a quotation form.

[Q] What is the specific process for purchasing the product?

[A] First, please click on the quotation form on the website and fill in detailed information. Our customer service personnel will then send you a quotation based on your specific country and region, confirming payment and delivery methods. Following this, we proceed with contract signing, payment, and shipment. You can then await delivery.

[Q] What should I do if the instrument I purchase needs repair?

[A] After-sales repair for overseas instruments is an unavoidable issue. Our repair terms stipulate that the sender is responsible for the shipping and insurance costs incurred for the repair. Repairs within the warranty period are free, while repair costs beyond the warranty period are determined based on the actual situation.
