Overview

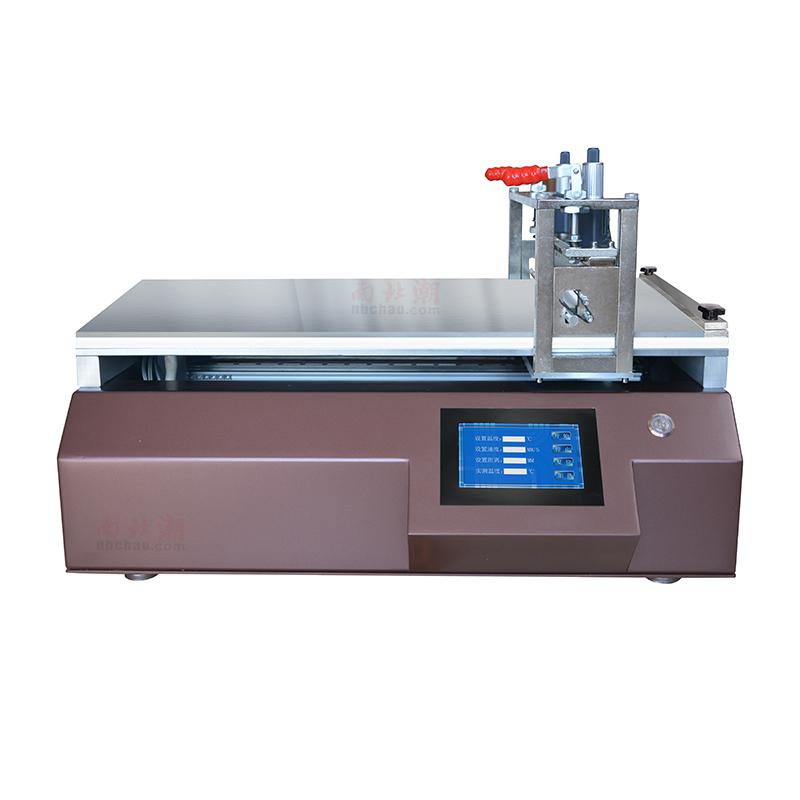

TBJ-X2-DJ1 Automatic Film Applicator is an experimental small Lab Film Applicator, using imported accessories, affordable, widely used in multinational R & D institutions, universities and scientific research institutions. By controlling the speed and stable pressure, ensure the uniformity and smoothness of Spreader coating, improve film reproducibility, and solve the problem of artificial film inconsistency.
Features
1. Using imported accessories, the price is good and cheap.
2. Blade Coating accuracy up to +/- 0.003mm, thickness range 0~ 10mm, can be lifted.
3. The coating speed range is 5~ 180mm/s, and customization is supported below 5mm/s.
4. The effective coating area is 600 * 500mm, and the bar and Blade Coating methods are supported.
5. Vacuum Area 600 * 500mm, aperture φ 1.2mm, hole spacing 20 * 20mm.
6. The coating rod accuracy is 0.001mm, and the effective application width is 300mm.
7. Host power supply 220V 50Hz, weight Net weight 65KG, speed control stepless variable speed.
8. The coating table is made of aluminum alloy, and optional Accessories include leakage tank, base material fixing fixture, etc.
9. Customizable features such as jet system devices, UV solid inclusion devices, and automatic inking systems.
Principle
The Automatic Film Applicator ensures the uniformity and smoothness of the Spreader coating by controlling the speed of the Spreader and the steady pressure applied to the Film Applicator. The design is to enable the operator to easily Spreader accurate wet-film on different substrates, improve the reproducibility of the film, and avoid the coating differences caused by the inconsistent speed and pressure of artificial films.
Applications
Multinational enterprise R & D institutions, universities, scientific research institutions
