Overview

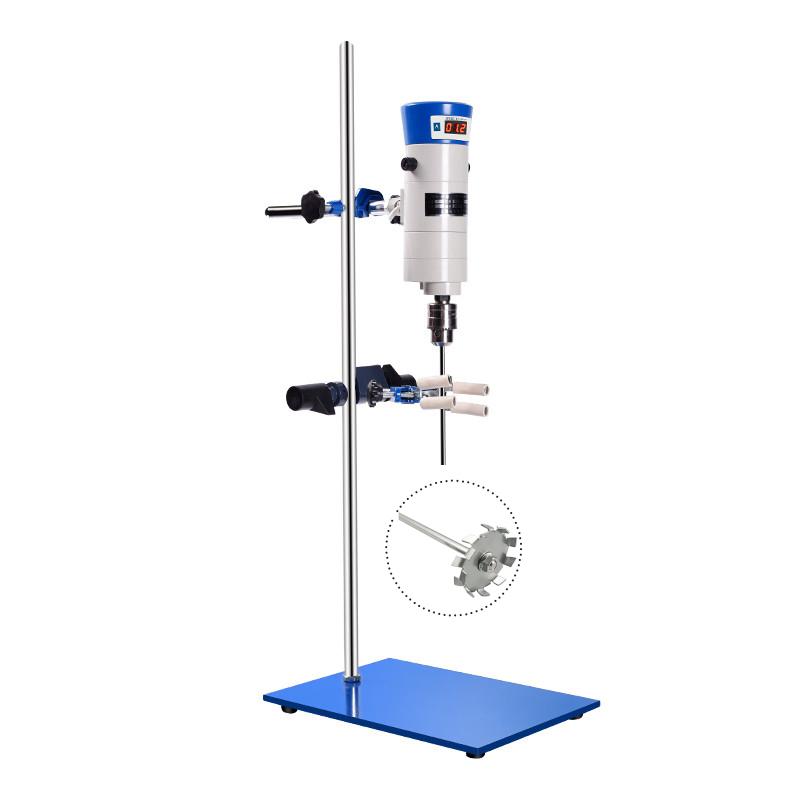

HUXI JB50-SH/20030052 digital display constant speed powerbasic stirrer is a liquid mixing and stirring equipment suitable for biological, physical and chemical, cosmetics, health products, food and other experimental fields. The product design is novel and the manufacturing process is professional. It has the characteristics of large torque output at low speed and good continuous use performance. It adopts a series micro motor to ensure safe and reliable operation. The numerical control touch stepless governor is convenient for speed regulation and digital display Rotation speed. It is an ideal equipment for scientific research, product development, quality control and production process in factories, scientific research institutions, Universities & colleges and medical units.
Features
1. Impellers have a wide range of types, specifications and adaptations;
2. Impeller special rolling head, easy to uninstall and operate;
3. Open rack: media container with wide selectivity, easy mixing and mixing;
4. Instrument specifications are diverse to meet the mixing requirements of different sample capacities and viscosities.
5. Segmental variable speed control: Rotation speed of experimental operation can be selected arbitrarily, with wide application range and convenient speed regulation;
6. Aluminum metal casing ensures mechanical accuracy for long-term use and electrical performance for continuous use;
7. The drive motor adopts a series micro motor with large Power and compact structure, which runs safely and reliably;
8. Novel product design, professional manufacturing process, large torque output at low speed, good continuous use performance;
9. Multi-stage Non-metallic gears are used to transmit force, torque is doubled, running state is stable, and noise is low;
Principle
The Stirrer provides power through the drive motor, and adopts a series-excited micro-motor to ensure high power and compact structure, and runs safely and reliably. The control motion state adopts a numerical control touch-type stepless governor to realize stepless speed regulation and digital display of Rotation speed to ensure correct data collection. The output boosting mechanism adopts multi-stage Non-metallic gears to transmit boosting force, which doubles the torque, stable running state and low noise, and combines the special pin of the stirringrod to achieve simple and flexible unloading operation.
Applications
Biological, physical and chemical, cosmetics, health products, food and other experimental fields, factories, scientific research institutions, Universities & colleges, medical units
Steps
1. Select the appropriate Impeller type and specification according to the experimental requirements.
2. Use the Impeller special rolling head to install the Impeller to ensure flexible unloading;
3. Place the Stirrer on an open rack and select the appropriate media container.
4. Connect the power supply and start the device.
5. Rotation speed is set by numerical control touch stepless governor, and the running status is displayed digitally;
6. Monitor the mixing process to ensure uniform mixing.
7. After the experiment, turn off the power and remove the Impeller for cleaning.
Notice
• Power supply voltage is AC 220 V 50 Hz before use to avoid voltage mismatch;
• When selecting Impeller, it is necessary to match the specifications according to the sample capacity and viscosity to prevent overload;
• Use a special rolling head when installing and uninstalling the Impeller, and the operation should be gentle to avoid damage;
• Rotation speed setting during operation to avoid exceeding the range of 100~ 1300rpm;
• Regularly check the aluminum metal casing and multi-stage Non-metallic gears to ensure mechanical accuracy and electrical performance;
• Monitor equipment temperature during continuous use to prevent overheating from affecting performance;
Disconnect the power supply during cleaning and maintenance to ensure safe operation.
