Overview

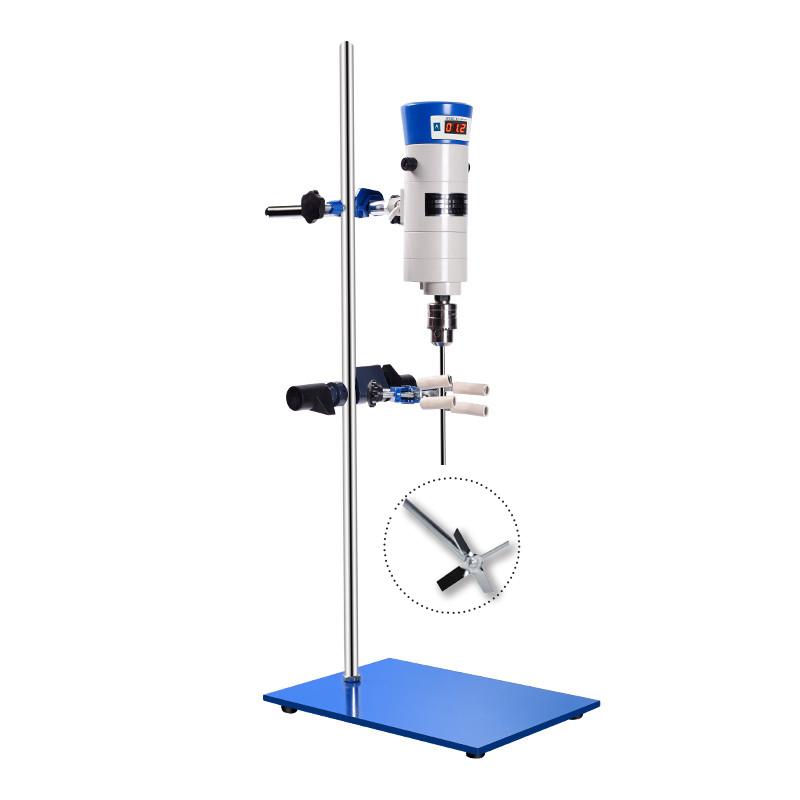

HUXI JB50-SH/20030035 digital display constant speed powerbasic stirrer is a liquid mixing and stirring equipment suitable for biological, physical and chemical, cosmetics, health products, food and other experimental fields. The product design is novel and the manufacturing process is professional. It has the characteristics of large torque output at low speed and good continuous use performance. It adopts a series micro motor to ensure safe and reliable operation. The numerical control touch stepless governor is convenient for speed regulation and digital display Rotation speed. It is an ideal equipment for scientific research, product development, quality control and production process application in factories, scientific research institutions, Universities & colleges and medical units.
Features
1. A wide variety of Impellers, various specifications, and a wide range of adaptations
2. Impeller special rolling head, easy to uninstall and operate
3. Open rack: wide selection of media containers, easy mixing and mixing
4. Various instrument specifications to meet the mixing requirements of different sample capacities and different viscosities
5. Segmental variable speed control: Rotation speed of experimental operation can be selected arbitrarily, with wide application range and convenient speed regulation
6. Aluminum metal casing ensures mechanical accuracy for long-lasting use and electrical performance for continuous use
7. The drive motor adopts a series micro motor with large Power and compact structure, which runs safely and reliably
8. Novel product design, professional manufacturing process, large torque output at low speed, good continuous use performance
9. Multi-stage Non-metallic gears are used to transmit force, torque is doubled, running state is stable, and noise is low
Principle
The Stirrer provides power through a series-excited micro-motor, uses a multi-stage Non-metallic gear transmission boosting mechanism to achieve a doubling of torque, and controls the operating state through a numerical control touch stepless governor to realize arbitrary Rotation speed adjustment and digital display Rotation speed to ensure that the collected data is correct.
Applications
Biology, Physicochemistry, Cosmetics, Health Products, Food, Factories, Research Institutions, Universities & colleges, Medical Units
Steps
1. Choose the right Impeller according to the experimental needs
2. Install the Impeller with a special rolling head to ensure convenient and flexible unloading
3. Place the Stirrer in a suitable position and connect it to the power supply
4. Rotation speed required by numerical control touch stepless governor
5. Observe the digital display Rotation speed status and start stirring operation
6. Turn off the power after the experiment is completed, and remove the Impeller for cleaning and maintenance
Notice
• Power supply voltage AC 220V 50Hz before use
Processing capacity does not exceed 15L
• Speed range controlled within 100~ 1300rpm
• Select the appropriate Impeller type based on the viscosity of the medium
• Regularly check the fastening state of the special rolling head for Impeller
• Note that the device Max. Torque is 94N.cm to avoid overload
• Keep the aluminum metal case clean to ensure good heat dissipation
