Overview

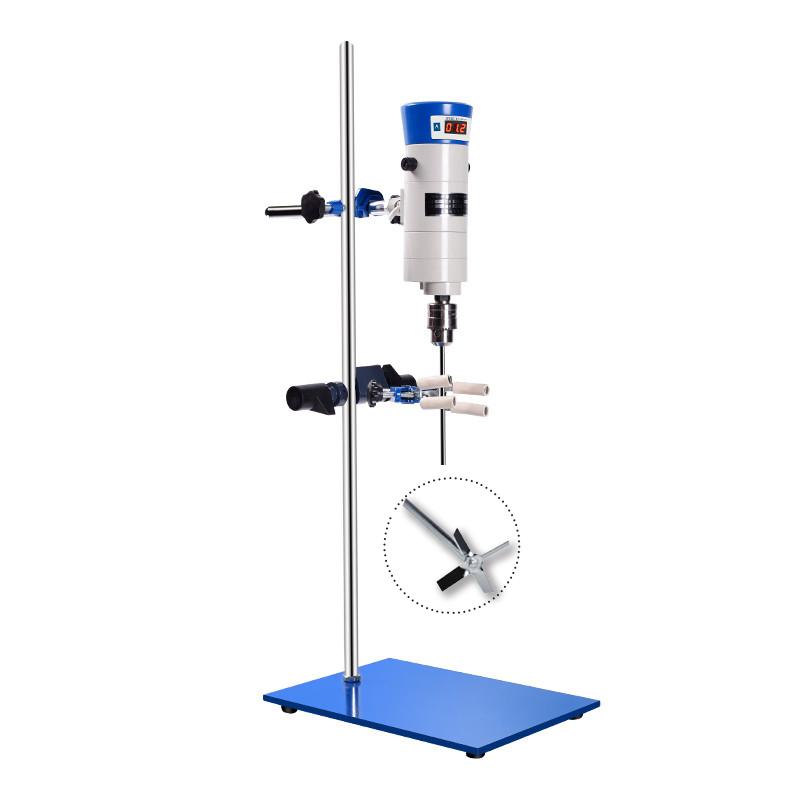

HUXI JB50-SH/20030037 digital display constant speed powerbasic stirrer is a laboratory special stirring equipment, suitable for biological, physical and chemical, cosmetics, health products, food and other experimental fields, for mixing and stirring of liquid experimental media. The product design is novel, the manufacturing process is professional, the low-speed running torque output is large, and the continuous use performance is good. It is an ideal equipment for scientific research, product development, quality control and production process application in factories, scientific research institutions, Universities & colleges and medical units.
Features
1. A wide variety of Impellers, various specifications, and a wide range of adaptations
2. Impeller special rolling head, easy to uninstall and operate
3. Open rack: wide selection of media containers, easy mixing and mixing
4. Various instrument specifications to meet the mixing requirements of different sample capacities and different viscosities
5. Segmental variable speed control: Rotation speed of experimental operation can be selected arbitrarily, with wide application range and convenient speed regulation
6. Aluminum metal casing ensures mechanical accuracy for long-lasting use and electrical performance for continuous use
7. The drive motor adopts a series micro motor with large Power and compact structure, which runs safely and reliably
8. Novel product design, professional manufacturing process, large torque output at low speed, good continuous use performance
9. Multi-stage Non-metallic gears are used to transmit force, torque is doubled, running state is stable, and noise is low
Principle
The Stirrer adopts numerical control touch stepless governor to control the motion state, which is convenient for speed regulation, and digitally displays the running Rotation speed status to ensure correct data collection. The drive motor adopts a series micro motor with large Power and compact structure, which is safe and reliable to operate. The output booster mechanism adopts multi-stage Non-metallic gears to transmit the booster, which doubles the torque, and the running state is stable and the noise is low.
Applications
Biological, physical and chemical, cosmetics, health products, food and other experimental fields, factories, scientific research institutions, Universities & colleges, medical units
Steps
1. Choose the Right Impeller
2. Install Impeller with Special Roller
3. Position the Stirrer in the right place
Step 4 Connect the power supply
5. Rotation speed required by numerical control touch stepless governor
6. Start Stirrer to experiment
7. Turn off the power after the experiment is completed
8. Remove Impeller for Cleaning
Notice
• Power supply voltage is AC 220V 50Hz
• Select the Right Impeller to Adapt to Different Viscosity and Container Requirements
Processing capacity does not exceed 15L
• Speed range controlled within 100~ 1300rpm
• Regularly check the fastening state of the special rolling head for Impeller
• Keep the equipment clean to avoid liquids entering the motor part
• Clean Impeller and Equipment Surface After Use
