Overview

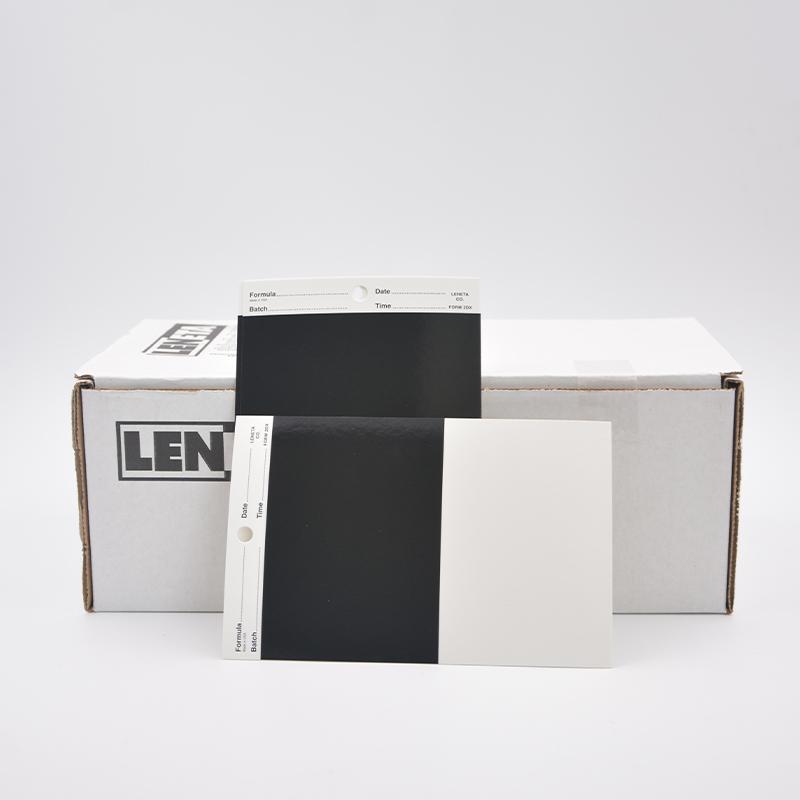

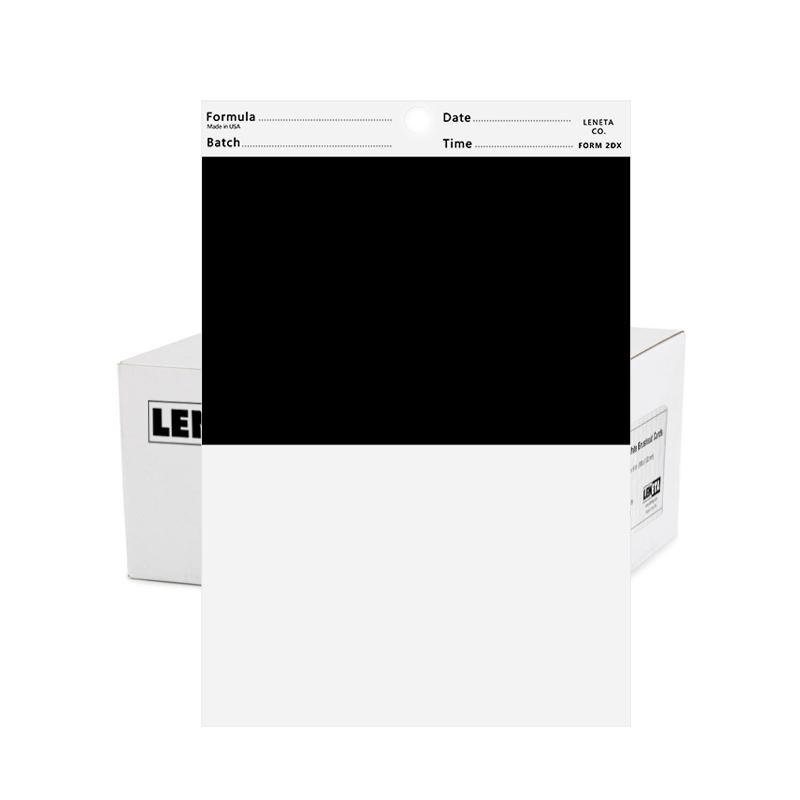

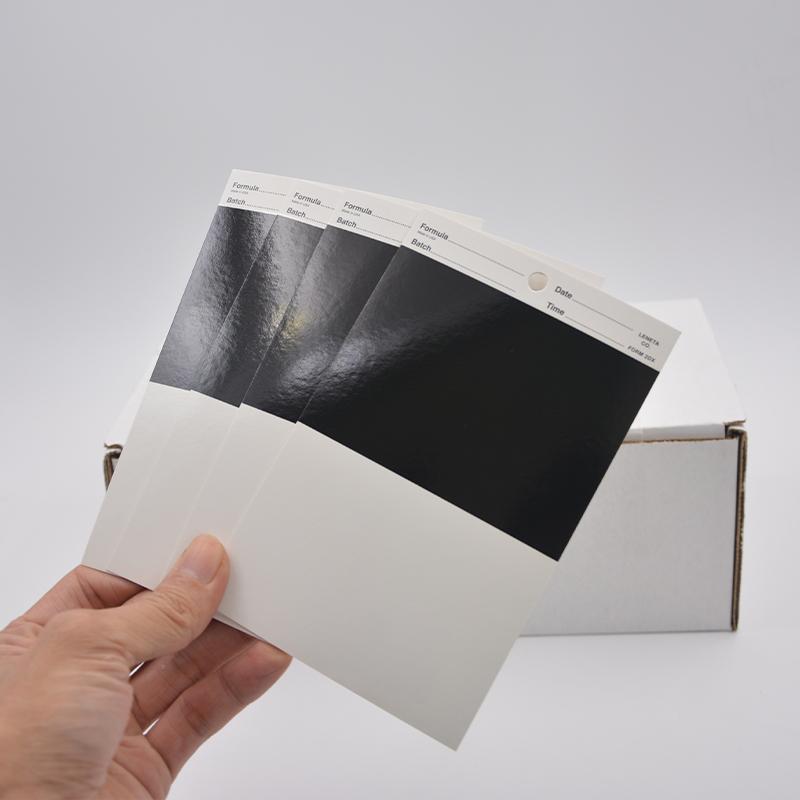

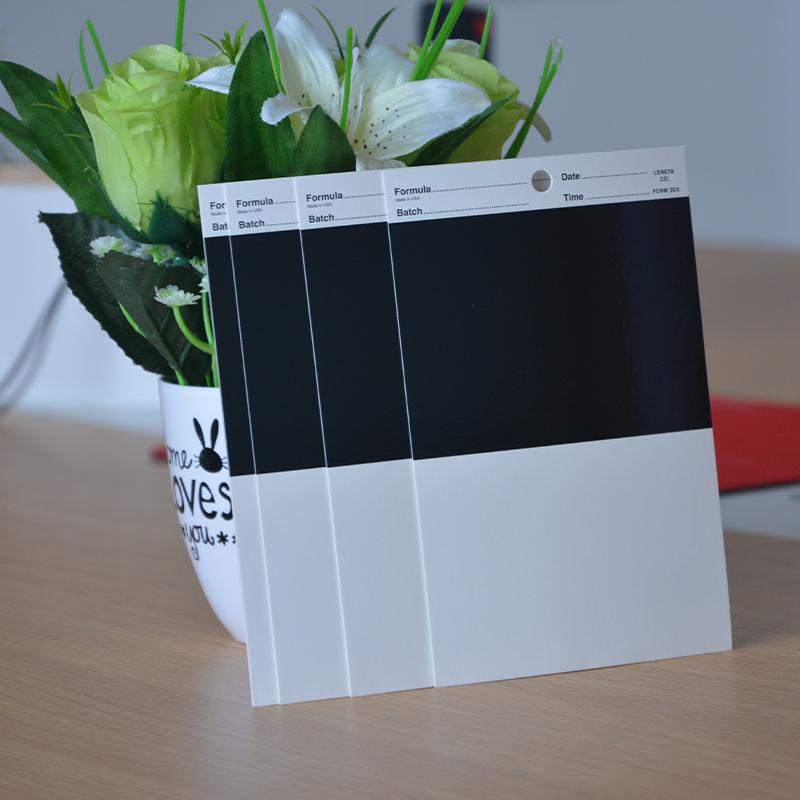

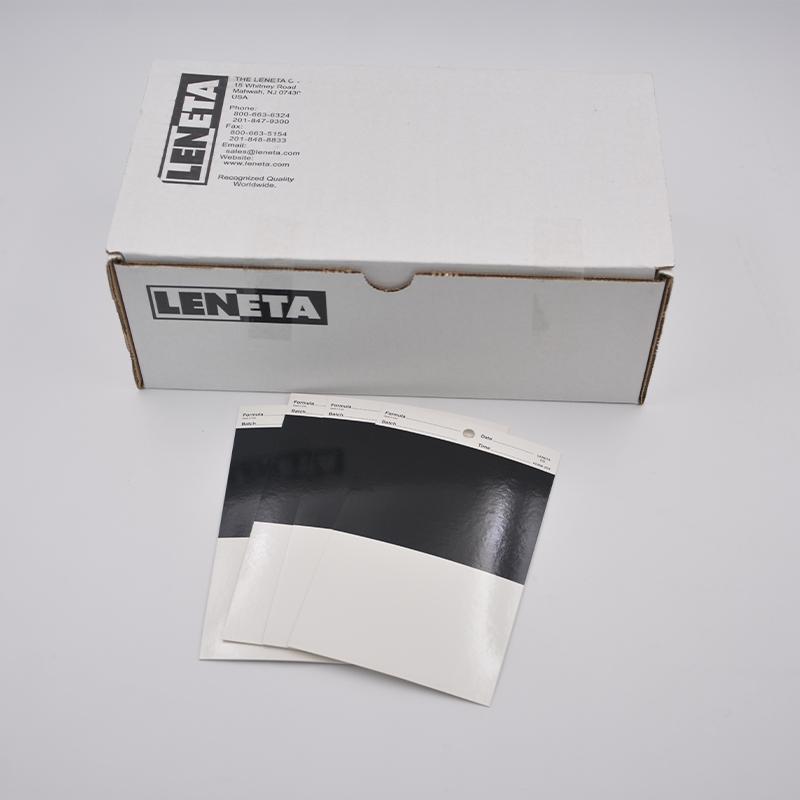

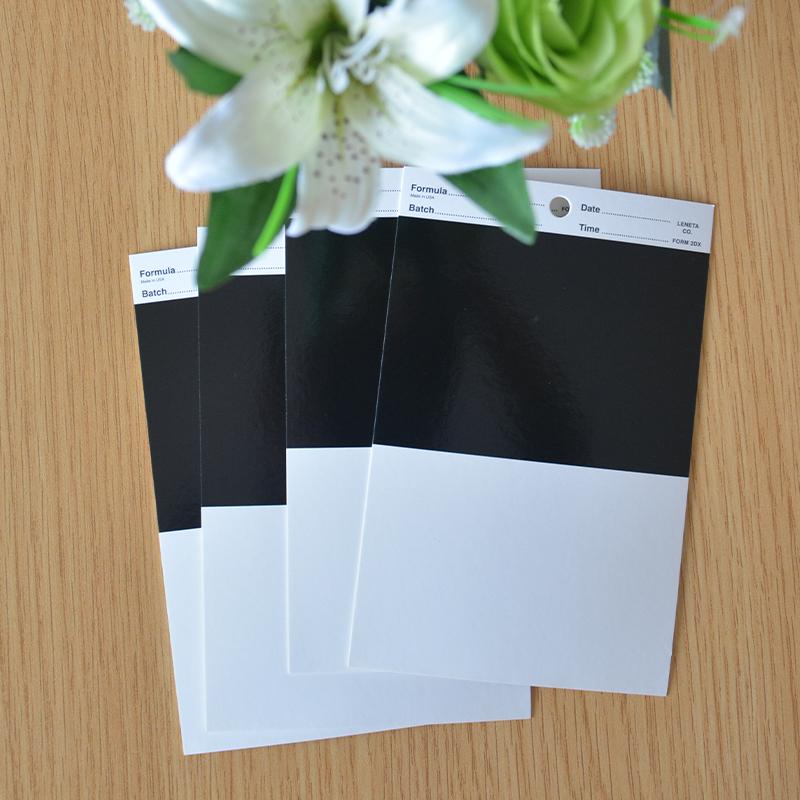

Leneta Form 2DX Opacity Chart is a hot-selling model of the American Leneta brand. It is a sealed Opacity Chart with a size of 98x152mm and meets the ASTM standard. It is mainly used for hiding power testing in the paints and inks industry.
Features
1. Black and white half design, easy to hide power test
2. Meet ASTM standards to ensure test accuracy
3. 500 sheets per box, Encasement specifications are reasonable
4. Moderate size for easy operation
5. Excellent material, good solvent resistance performance
6. Suitable for Multiple Coating Types
7. Test results are objective and reliable
Principle
The Opacity Chart tests the covering ability of the Coating by comparing the black and white areas. Spreader the Coating evenly on the cardboard, and measure the reflectance ratio of the black area to the white area after drying. The calculation formula is: hiding ratio (%) = Y black/Y white × 100%. Hiding ratio 100% means complete covering.
Applications
Coatings, Rubber & plastics, paints, pigments, Hardware, Instruments, printing, Encasement, Gloss oils, Bio
Steps
1. Spreader paints and other Coatings evenly on the paints Opacity Chart according to the film steps
2. After the film is fully dried by air, use the instrument for objective evaluation
3. The hiding power value can be measured within 1 second and automatically displayed
Notice
• Use the correct lame plating method to ensure that the film thickness is appropriate, flat and uniform
• Spray booth space should be suitable, Illumination conditions should be good
• Mix the paints effectively
• Prohibit excessive polishing of the paint film
• Pay special attention to the lame plating mass in the corner area
