Overview

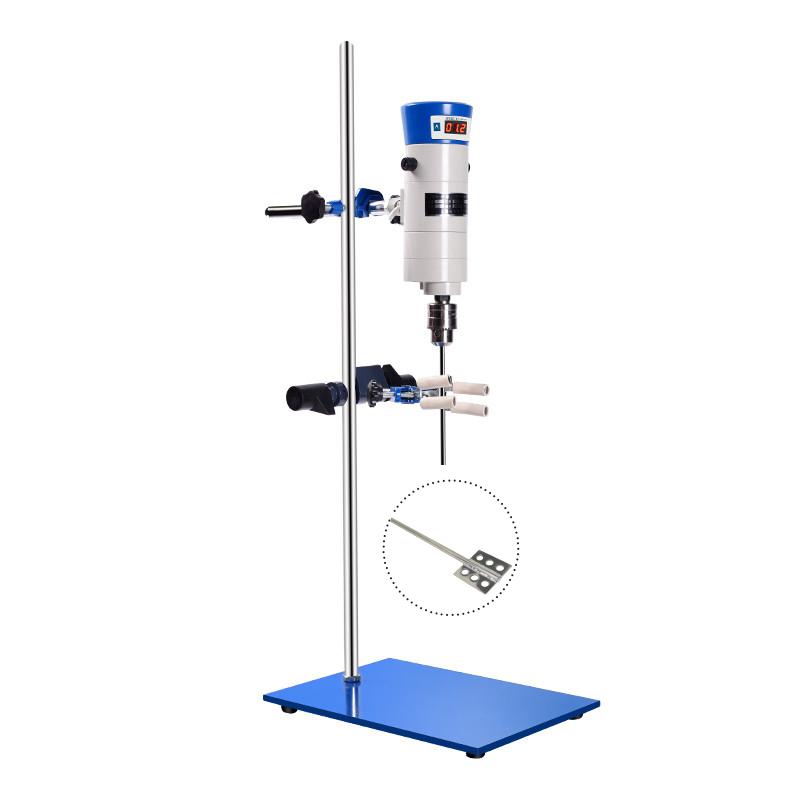

HUXI JB50-SH/20030096 digital display constant speed powerbasic stirrer is a special laboratory stirring equipment, suitable for liquid mixing and stirring experiments in the fields of biology, physicochemistry, cosmetics, health products, food and other fields. The product adopts novel design concepts and professional manufacturing processes, and has the characteristics of large torque output at low speed and good continuous use performance. The drive motor adopts a series micro motor with large Power and compact structure to ensure safe and reliable operation.
Features
1. A wide variety of Impellers, various specifications, and a wide range of adaptations
2. Impeller special rolling head, easy to uninstall and operate
3. Open rack: wide selection of media containers, easy mixing and mixing
4. Various instrument specifications to meet the mixing requirements of different sample capacities and different viscosities
5. Segmental variable speed control: Rotation speed of experimental operation can be selected arbitrarily, with wide application range and convenient speed regulation
6. Aluminum metal casing ensures mechanical accuracy for long-lasting use and electrical performance for continuous use
7. The drive motor adopts a series micro motor with large Power and compact structure, which runs safely and reliably
8. Novel product design, professional manufacturing process, large torque output at low speed, good continuous use performance
9. Multi-stage Non-metallic gears are used to transmit force, torque is doubled, running state is stable, and noise is low
Principle
The Stirrer uses numerical control touch stepless governor to control the motion state, realizes arbitrary Rotation speed adjustment and digital display of the running state; the drive motor uses a series micro motor to provide power, and transmits the booster mechanism through multi-stage Non-metallic gears to double the torque, ensuring stable running state and low noise.
Applications
Biology, Physicochemistry, Cosmetics, Health Products, Food, Factories, Research Institutions, Universities & colleges, Medical Units
Steps
1. Choose the right Impeller according to the experimental needs
2. Install Impeller with Special Roller
3. Position the Stirrer in the right place
Step 4 Connect the power supply
5. Rotation speed set by numerical control touch governor
6. Start the equipment and start stirring
7. Turn off the power after the experiment is completed
8. Remove Impeller for Cleaning
Notice
• Power supply voltage is AC 220V 50Hz
• Select the appropriate Impeller type and specification to meet experimental requirements
• Ensure that the special rolling head is firmly fixed when installing the Impeller
• Rotation speed should be gradually adjusted from low speed to required
Processing capacity should not exceed 15L
• Do not touch swirl/spin parts when the device is running
• Clean Impellers and Equipment After Use
• Please disconnect the power supply when not in use for a long time
