Overview

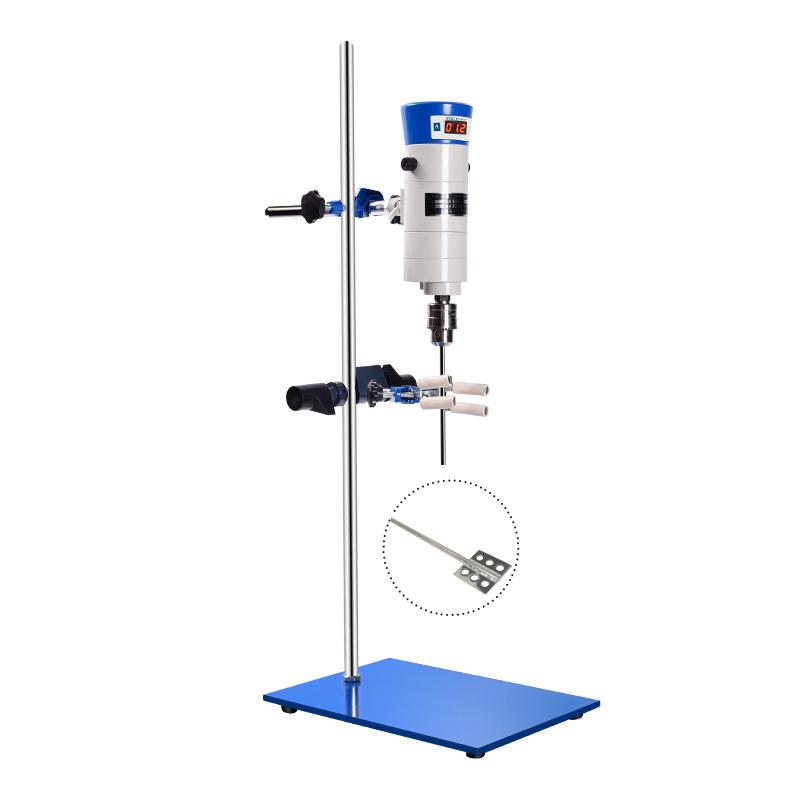

HUXI JB50-SH/20030063 digital display constant speed powerbasic stirrer is a laboratory special stirring equipment, suitable for biological, physical and chemical, cosmetics, health products, food and other experimental fields. The product design is novel and the manufacturing process is professional. It is driven by a series micro motor and controlled by a numerical control touch stepless governor. It has the characteristics of large torque output at low speed, good continuous use performance, and safe and reliable operation.
Features
1. A wide variety of Impellers, various specifications, and a wide range of adaptations
2. Impeller special rolling head, easy to uninstall and operate
3. Open rack: wide selection of media containers, easy mixing and mixing
4. Various instrument specifications to meet the mixing requirements of different sample capacities and different viscosities
5. Segmental variable speed control: Rotation speed of experimental operation can be selected arbitrarily, with wide application range and convenient speed regulation
6. Aluminum metal casing ensures mechanical accuracy for long-lasting use and electrical performance for continuous use
7. The drive motor adopts a series micro motor with large Power and compact structure, which runs safely and reliably
8. Novel product design, professional manufacturing process, large torque output at low speed, good continuous use performance
9. Multi-stage Non-metallic gears are used to transmit force, torque is doubled, running state is stable, and noise is low
Principle
The Stirrer is powered by a series-excited micro-motor, uses a numerical control touch stepless governor to control the operating state, and multiplies the torque through a multi-stage Non-metallic gear transmission booster mechanism. The special pin design of the stirringrod makes unloading easy and flexible, and the digital display of the running Rotation speed status ensures correct data collection.
Applications
Biology, Physicochemistry, Cosmetics, Health Products, Food, Factories, Research Institutions, Universities & colleges, Medical Units
Steps
1. Select the right Impeller and install it on the special rolling head
2. Place the Stirrer on a stable work surface
3. Connect the power supply (AC 220V 50Hz)
4. Rotation speed (100~ 1300rpm) set by numerical control touch stepless governor
5. Start the equipment and start the mixing operation
6. Turn off the power after use and remove the Impeller for cleaning and maintenance
Notice
● Power supply voltage AC 220V 50Hz
Processing capacity does not exceed 15L
● Select the appropriate Impeller type according to the medium viscosity
● Pay attention to the installation firmness of the Impeller
● Pay attention to observe the running state during use
Regularly clean and maintain equipment
Do not overload the equipment
