Overview

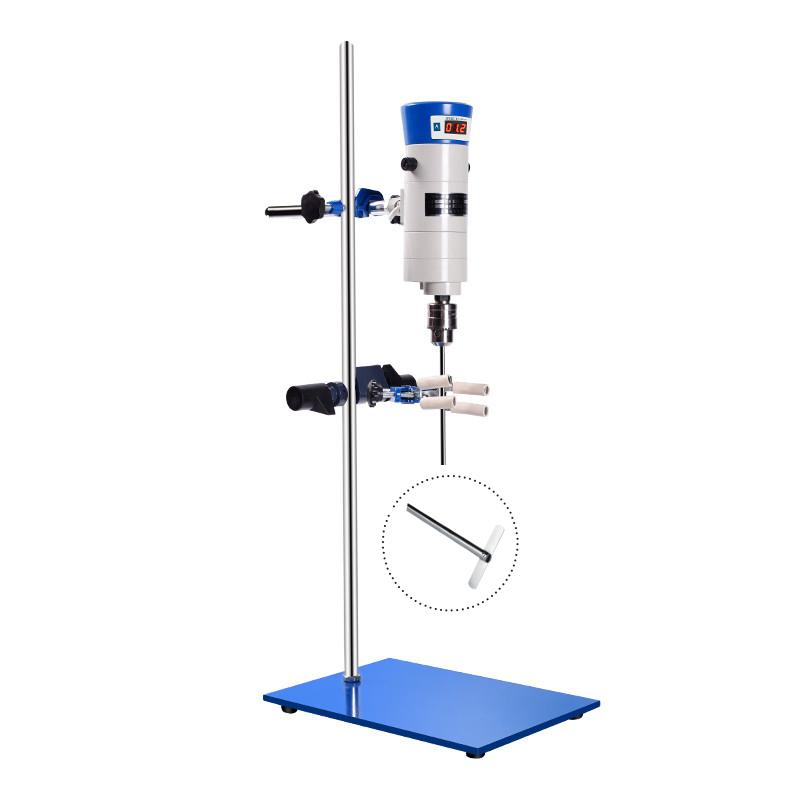

HUXI JB50-SH/20030034 digital display constant speed powerbasic stirrer is a liquid mixing and stirring equipment suitable for biological, physical and chemical, cosmetics, health products, food and other experimental fields. The product design is novel and the manufacturing process is professional. It has the characteristics of large torque output at low speed and good continuous use performance. It adopts a series micro motor to ensure safe and reliable operation. The numerical control touch stepless governor is convenient for speed regulation and digital display Rotation speed. It is an ideal equipment for scientific research, product development, quality control and production process in factories, scientific research institutions, Universities & colleges and medical units.
Features
1. Impellers have a wide range of types, specifications and adaptations;
2. Impeller special rolling head, easy to uninstall and operate;
3. Open rack: media container with wide selectivity, easy mixing and mixing;
4. Instrument specifications are diverse to meet the mixing requirements of different sample capacities and viscosities.
5. Segmental variable speed control: Rotation speed of experimental operation can be selected arbitrarily, with wide application range and convenient speed regulation;
6. Aluminum metal casing ensures mechanical accuracy for long-term use and electrical performance for continuous use;
7. The drive motor adopts a series micro motor with large Power and compact structure, which runs safely and reliably;
8. Novel product design, professional manufacturing process, large torque output at low speed, good continuous use performance;
9. Multi-stage Non-metallic gears are used to transmit force, torque is doubled, running state is stable, and noise is low;
Principle
The Stirrer is powered by a drive motor (serial micro-motor) and adopts a multi-stage Non-metallic gear transmission booster mechanism to double the torque and ensure stable operation and low noise. The control motion state adopts a numerical control touch stepless governor to realize arbitrary Rotation speed adjustment, and real-time Rotation speed status is displayed digitally to ensure correct data collection. The special pin head design of the stirringrod makes it easy and flexible to uninstall, which is suitable for mixing and stirring of various liquid media.
Applications
Biological, physical and chemical, cosmetics, health products, food and other experimental fields, factories, scientific research institutions, Universities & colleges, medical units
Steps
1. Select the appropriate Impeller type and specification according to the experimental requirements.
2. Use the Impeller special rolling head to install the Impeller to ensure convenient and flexible unloading;
3. Place the Stirrer on the open rack and select the appropriate media container.
4. Connect the power supply (AC 220 V 50 Hz);
5. Rotation speed required by numerical control touch stepless governor (range 100~ 1300rpm);
6. Start Stirrer and observe the digital display Rotation speed status;
7. After stirring, turn off the power and remove the Impeller for cleaning.
Notice
• Power supply voltage is AC 220 V 50 Hz to avoid using improper voltage;
• Check whether the Impeller installation is firm before operation to prevent peeling during operation;
• Select the appropriate Impeller type and Rotation speed based on liquid viscosity and sample capacity;
• Pay attention to the temperature of the instrument during continuous use to avoid overheating affecting the performance;
• Disconnect power during cleaning and maintenance to ensure safety.
• Only used in designated experimental areas, do not overload (Max. Torque 94N.cm);
