Overview

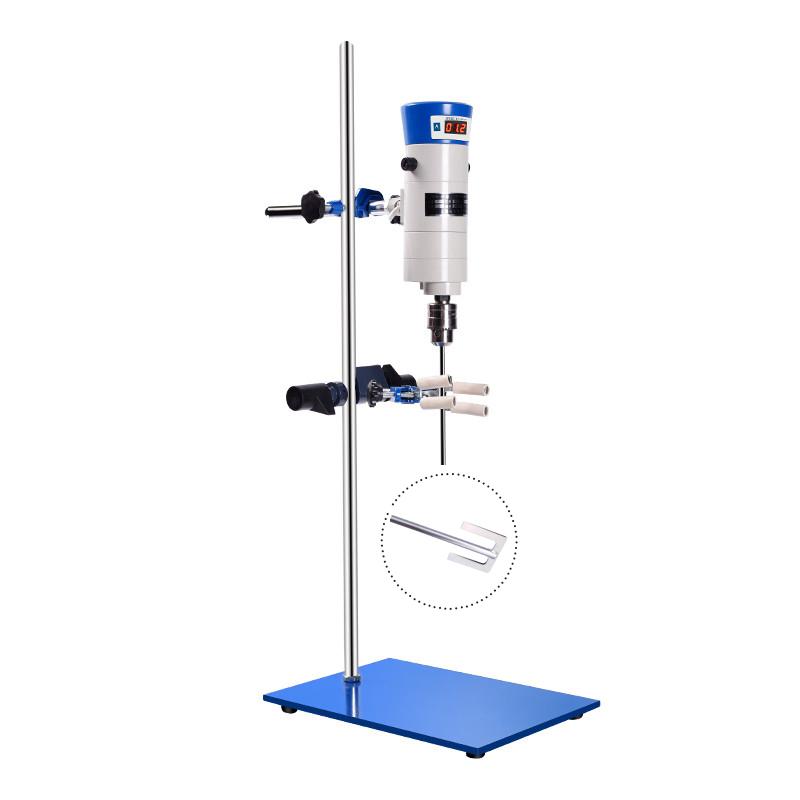

HUXI JB50-SH/20030006 Digital display constant speed powerbasic stirrer is a liquid mixing and stirring equipment suitable for biological, physical and chemical, cosmetics, health products, food and other experimental fields. The product design is novel, the manufacturing process is professional, the low-speed running torque output is large, the continuous practical performance is good, the series micro motor is used to ensure safe and reliable operation, the numerical control touch stepless governor is convenient for speed regulation and digital display Rotation speed. It is an ideal equipment for scientific research, product development, quality control and production process application in factories, scientific research institutions, Universities & colleges and medical units.
Features
1. Impellers have a wide range of types, specifications and adaptations;
2. Impeller special rolling head, easy to uninstall and operate;
3. Open rack: media container with wide selectivity, easy mixing and mixing;
4. Instrument specifications are diverse to meet the mixing requirements of different sample capacities and viscosities.
5. Segmental variable speed control: Rotation speed of experimental operation can be selected arbitrarily, with wide application range and convenient speed regulation;
6. Aluminum metal casing ensures mechanical accuracy for long-term use and electrical performance for continuous use;
7. The drive motor adopts a series micro motor with large Power and compact structure, which runs safely and reliably;
8. Novel product design, professional manufacturing process, large torque output at low speed, good continuous use performance;
9. Multi-stage Non-metallic gears are used to transmit force, torque is doubled, running state is stable, and noise is low;
Principle
The drive motor is powered by a series micro motor, and the torque is multiplied by the multi-stage Non-metallic gear transmission booster mechanism. The control motion state is adjusted by numerical control of the touch type stepless governor without speed change, and the digital display of the running Rotation speed status ensures that the data collection is correct.
Applications
Biological, physical and chemical, cosmetics, health products, food and other experimental fields, factories, scientific research institutions, Universities & colleges, medical units
Steps
1. Select the appropriate Impeller type and specification according to the experimental requirements.
2. Use the Impeller special rolling head to install the Impeller to ensure convenient and flexible unloading;
3. Place the Stirrer on an open rack and select the appropriate media container.
4. Connect the power supply (AC 220 V 50 Hz);
5. Rotation speed (100~ 1300rpm range) is set by numerical control touch stepless governor;
6. Start the device and observe the digital display Rotation speed status;
7. Turn off the power after stirring, and remove the Impeller for cleaning;
Notice
• Power supply voltage is AC 220 V 50 Hz to avoid using improper voltage;
• When selecting Impeller, it should be based on sample capacity and viscosity requirements to avoid overload use;
• Use a special rolling head when installing and uninstalling the Impeller, and the operation should be cautious and flexible;
• Pay attention to observe the digital display Rotation speed during operation to ensure correct data collection;
• Pay attention to the heat dissipation performance of the aluminum case when the equipment is used continuously to avoid overheating;
• Pay attention to the large torque output during low-speed operation to ensure stable running state;
Disconnect the power supply during cleaning and maintenance to ensure safe operation.
