Overview

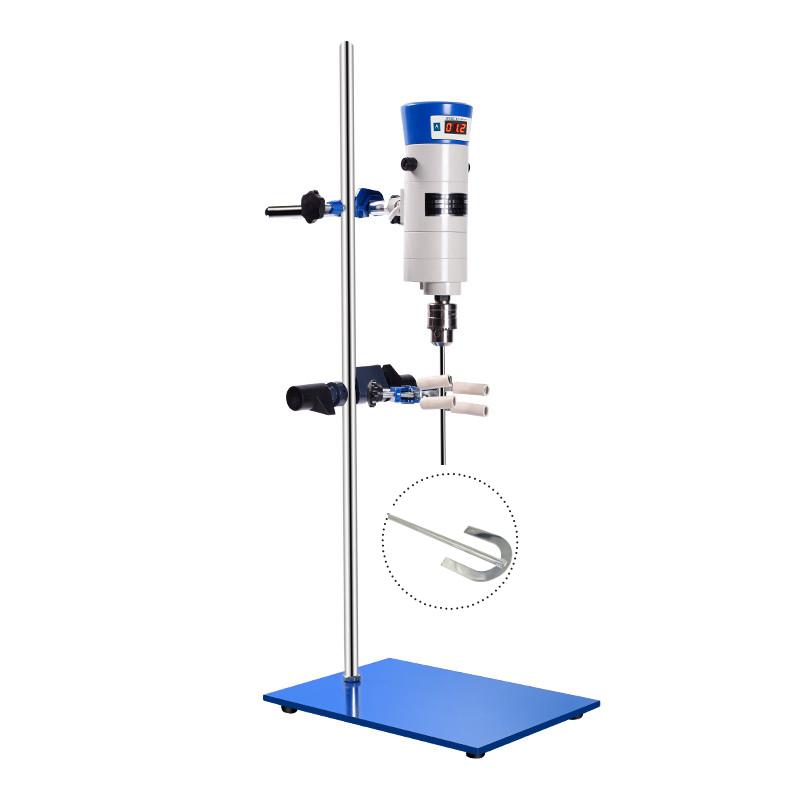

HUXI JB50-SH/20030092 digital display constant speed powerbasic stirrer is a liquid mixing and stirring equipment specially designed for laboratories, suitable for biological, physical and chemical, cosmetics, health products, food and other experimental fields. The product design is novel, the manufacturing process is professional, the series micro motor is used to drive, the operation is safe and reliable, the torque output is large at low speed, and the continuous use performance is good. It is suitable for scientific research, product development, quality control and production process in factories, scientific research institutions, Universities & colleges and medical units.
Features
1. Impellers have a wide range of types, specifications and adaptations;
2. Impeller special rolling head, easy to uninstall and operate;
3. Open rack: media container with wide selectivity, easy mixing and mixing;
4. Instrument specifications are diverse to meet the mixing requirements of different sample capacities and viscosities.
5. Segmental variable speed control: Rotation speed of experimental operation can be selected arbitrarily, with wide application range and convenient speed regulation;
6. Aluminum metal casing ensures mechanical accuracy for long-term use and electrical performance for continuous use;
7. The drive motor adopts a series micro motor with large Power and compact structure, which runs safely and reliably;
8. Novel product design, professional manufacturing process, large torque output at low speed, good continuous use performance;
9. Multi-stage Non-metallic gears are used to transmit force, resulting in a doubling of torque, stable operation, and low noise.
Principle
The Stirrer is driven by a series-excited micro-motor and uses a numerical control touch stepless governor to control the motion state, realizing arbitrary Rotation speed adjustment and digital display. The output booster mechanism uses multi-stage Non-metallic gears to transmit boosting force, which doubles the torque and ensures stable operation and low noise. The special pin design of the stirringrod makes it easy and flexible to unload, and is suitable for mixing and stirring of various liquid media.
Applications
Biology, Physicochemistry, Cosmetics, Health Products, Food, Factories, Research Institutions, Universities & colleges, Medical Units
Steps
1. Select the appropriate Impeller according to the experimental requirements;
2. Use a special rolling head to install the Impeller to ensure flexible unloading;
3. Place the Stirrer on an open rack and select the appropriate media container.
4. Connect the power supply and start the device.
5. Rotation speed is adjusted to the required range by numerical control touch stepless governor;
6. Observe the digital display Rotation speed status and conduct data collection;
7. After stirring, turn off the device and remove the Impeller.
Notice
• Power supply voltage is AC 220 V 50 Hz to avoid voltage mismatch;
• Pay attention to the large torque output during low-speed operation to prevent overload;
• Check whether the Impeller installation is firm before use to avoid loosening;
• When selecting an Impeller, consider the viscosity of the medium and the type of container.
• Monitor the operating status of the equipment during continuous use to ensure stable electrical performance;
• Follow product instructions for cleaning and maintenance to extend service life.
