Overview

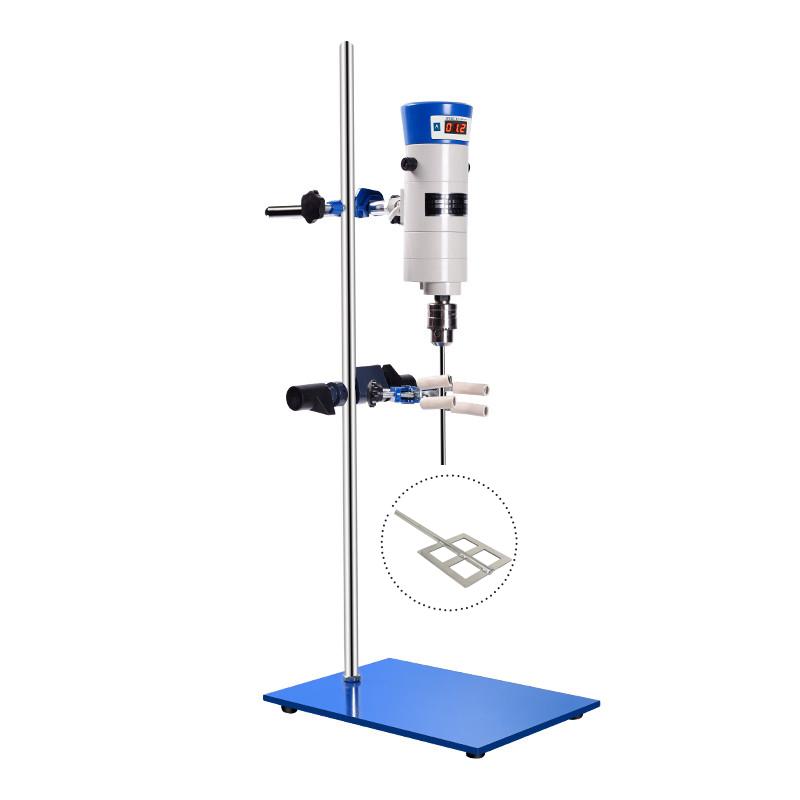

HUXI JB50-SH/20030082 digital display constant speed powerbasic stirrer is a liquid mixing and stirring equipment suitable for biological, physical and chemical, cosmetics, health products, food and other experimental fields. The product design is novel and the manufacturing process is professional. It has the characteristics of large torque output at low speed and good continuous use performance. It adopts a series micro motor to ensure safe and reliable operation. The numerical control touch stepless governor is convenient for speed regulation and digital display Rotation speed. It is an ideal equipment for scientific research, product development, quality control and production process application in factories, scientific research institutions, Universities & colleges and medical units.
Features
1. Impellers have a wide range of types, specifications and adaptations;
2. Impeller special rolling head, easy to uninstall and operate;
3. Open rack: media container with wide selectivity, easy mixing and mixing;
4. Instrument specifications are diverse to meet the mixing requirements of different sample capacities and viscosities.
5. Segmental variable speed control: Rotation speed of experimental operation can be selected arbitrarily, with wide application range and convenient speed regulation;
6. Aluminum metal casing ensures mechanical accuracy for long-term use and electrical performance for continuous use;
7. The drive motor adopts a series micro motor with large Power and compact structure, which runs safely and reliably;
8. Novel product design, professional manufacturing process, large torque output at low speed, good continuous use performance;
9. Multi-stage Non-metallic gears are used to transmit force, torque is doubled, running state is stable, and noise is low;
Principle
The Stirrer is powered by a drive motor and uses a multi-stage Non-metallic gear transmission booster mechanism to double the torque for stable operation and low noise. The control motion state adopts a numerical control touch stepless governor, which can adjust the Rotation speed arbitrarily and display the running status digitally to ensure the correct data collection. The Impeller is easy to uninstall through a special tie and adapts to the mixed needs of different experimental media.
Applications
Biological, physical and chemical, cosmetics, health products, food and other experimental fields, factories, scientific research institutions, Universities & colleges, medical units
Steps
1. Select the appropriate Impeller according to the experimental requirements;
2. Use a special rolling head to install the Impeller to ensure flexible unloading;
3. Place the Stirrer on the open rack and select the appropriate media container.
4. Connect the power supply (AC 220 V 50 Hz);
5. Rotation speed (100~ 1300rpm range) is set by numerical control touch stepless governor;
6. Start the equipment, observe the digital display Rotation speed status, and perform stirring operation;
7. After the experiment is completed, turn off the power and remove the Impeller for cleaning.
Notice
• Power supply voltage is AC 220 V 50 Hz to avoid using improper voltage;
• Check whether the Impeller installation is firm before operation to prevent peeling during operation;
• Choose the appropriate Impeller and Rotation speed according to the medium viscosity and container size;
• Pay attention to the temperature of the equipment during continuous use to avoid overheating affecting the performance;
• Disconnect power during cleaning and maintenance to ensure safety.
• Avoid use under conditions exceeding the maximum Processing capacity of 15L or Max. Torque 94N.cm;
• Keep the equipment drying during storage to prevent corrosion of the aluminum case.
