Overview

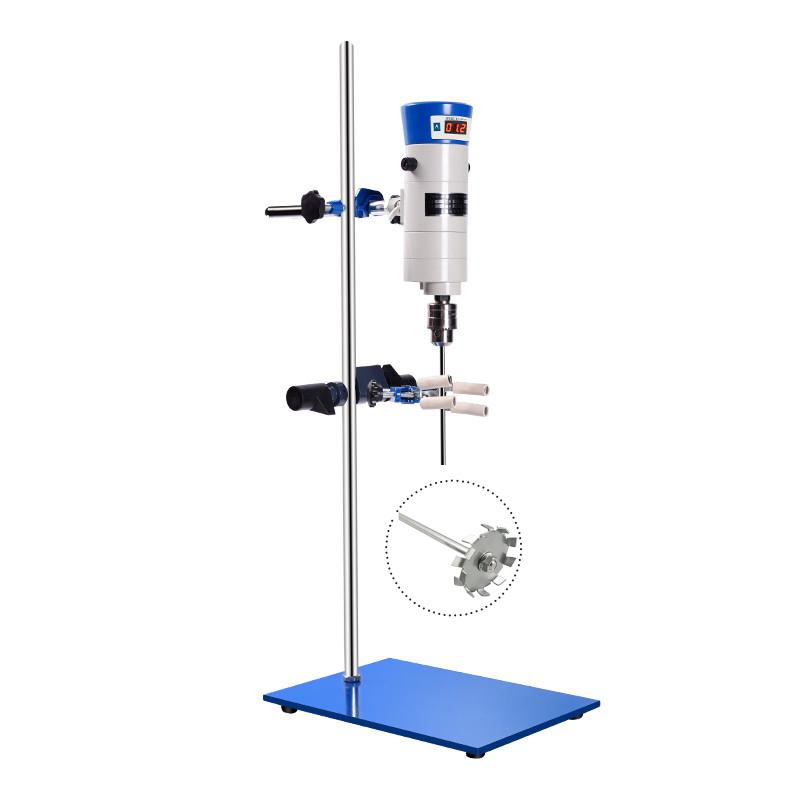

HUXI JB90-SH/20030051 digital display constant speed powerbasic stirrer is a liquid mixing and stirring equipment suitable for biological, physical and chemical, cosmetics, health products, food and other experimental fields. The product design is novel and the manufacturing process is professional. It has the characteristics of large torque output at low speed and good continuous use performance. It adopts a series micro motor to ensure safe and reliable operation. The numerical control touch stepless governor is convenient for speed regulation and digital display Rotation speed. It is an ideal equipment for scientific research, product development, quality control and production process application in factories, scientific research institutions, Universities & colleges and medical units.
Features
1. A wide variety of Impellers, various specifications, and a wide range of adaptations
2. Impeller special rolling head, easy to uninstall and operate
3. Open rack: wide selection of media containers, easy mixing and mixing
4. Various instrument specifications to meet the mixing requirements of different sample capacities and different viscosities
5. Segmental variable speed control: Rotation speed of experimental operation can be selected arbitrarily, with wide application range and convenient speed regulation
6. Aluminum metal casing ensures mechanical accuracy for long-lasting use and electrical performance for continuous use
7. The drive motor adopts a series micro motor with large Power and compact structure, which runs safely and reliably
8. Novel product design, professional manufacturing process, large torque output at low speed, good continuous use performance
9. Multi-stage Non-metallic gears are used to transmit force, torque is doubled, running state is stable, and noise is low
Principle
The Stirrer is powered by a series-excited micro-motor and uses a multi-stage Non-metallic gear transmission booster mechanism to multiply the torque and drive the Impeller swirl/spin to achieve liquid mixing. The control part uses a numerical control touch stepless governor to precisely adjust the Rotation speed and digitally display the operating status, ensuring correct data collection. The open rack design allows the selection of different media containers for flexible stirring operation.
Applications
Biological, physical and chemical, cosmetics, health products, food and other experimental fields, factories, scientific research institutions, Universities & colleges, medical units
Steps
1. Choose the right Impeller according to the experimental needs
2. Install the Impeller with a special rolling head to ensure convenient and flexible unloading
3. Place the Stirrer on a stable work surface
4. Connect the power supply (AC 220 V 50 Hz)
5. Rotation speed required by numerical control touch stepless governor (100~ 1400rpm range)
6. Start the equipment and start the mixing operation
7. Observe the running Rotation speed status of the digital display
8. Turn off the power after the experiment is completed, and remove the Impeller for cleaning and maintenance
Notice
• Power supply voltage AC 220 V 50 Hz before use
Processing capacity does not exceed 28L
• Choose the appropriate Impeller type and Rotation speed based on liquid viscosity
• Ensure that the Impeller is firmly installed to avoid loosening during operation
• Do not touch swirl/spin parts when the device is running
• Regularly check the running status of the equipment and keep it clean
• Rated power range, Input Power 150W, Output Power 90W
• Note that Max. Torque is 94N.cm to avoid overload operation
