Overview

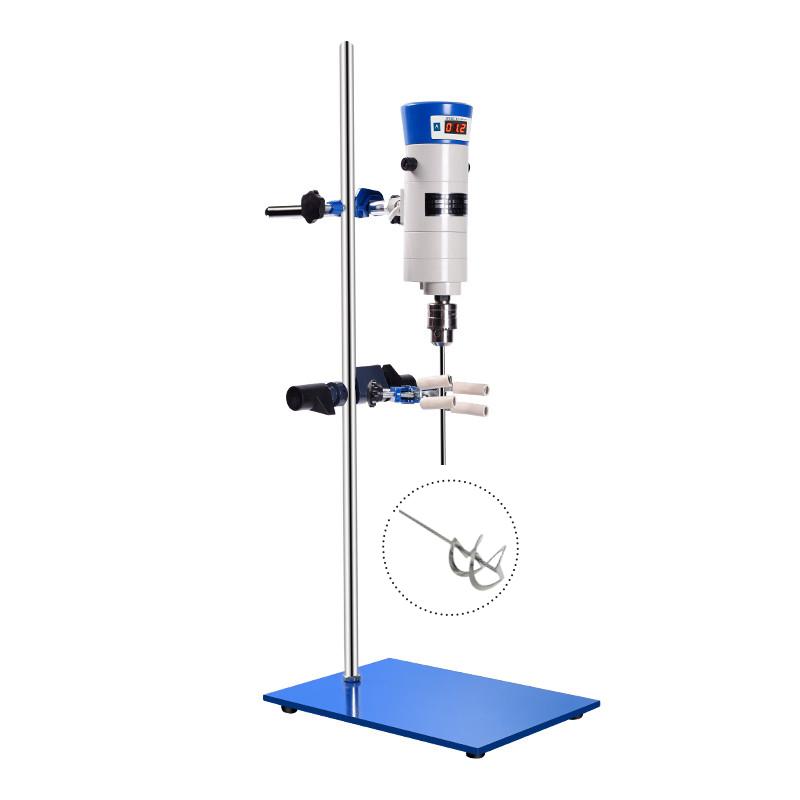

HUXI JB90-SH/20030075 digital display constant speed powerbasic stirrer is a liquid mixing and stirring equipment specially designed for biological, physical and chemical, cosmetics, health products, food and other experimental fields. The product design is novel, the manufacturing process is professional, the low-speed running torque output is large, and the continuous use performance is good. It is suitable for scientific research, product development, quality control and production process applications in factories, scientific research institutions, Universities & colleges and medical units.
Features
1. Impellers have a wide range of types, specifications and adaptations;
2. Impeller special rolling head, easy to uninstall and operate;
3. Open rack: media container with wide selectivity, easy mixing and mixing;
4. Instrument specifications are diverse to meet the mixing requirements of different sample capacities and viscosities.
5. Segmental variable speed control: Rotation speed of experimental operation can be selected arbitrarily, with wide application range and convenient speed regulation;
6. Aluminum metal casing ensures mechanical accuracy for long-term use and electrical performance for continuous use;
7. The drive motor adopts a series micro motor with large Power and compact structure, which runs safely and reliably;
8. Novel product design, professional manufacturing process, large torque output at low speed, good continuous use performance;
9. Multi-stage Non-metallic gears are used to transmit force, torque is doubled, running state is stable, and noise is low;
Principle
The drive motor adopts a series micro motor, and the motion state is controlled by a touch stepless governor through numerical control to realize arbitrary Rotation speed adjustment and digital display of the running Rotation speed. The output booster mechanism adopts multi-stage Non-metallic gears to transmit force, which doubles the torque and ensures stable running state and low noise.
Applications
Biology, physics and chemistry, cosmetics, health products, food
Steps
1. Select the appropriate Impeller and install it on the special rolling head;
2. Place the Stirrer in a stable position and connect the power supply.
3. Rotation speed required by numerical control touch stepless governor;
4. Start the device and observe the digital display Rotation speed;
5. After stirring is complete, turn off the power and remove the Impeller for cleaning.
Notice
• Power supply voltage is AC 220 V 50 Hz to avoid voltage mismatch;
• Check whether the Impeller installation is firm before operation to prevent loosening;
• Select the appropriate Impeller according to the medium viscosity and container type;
• Avoid overload operation to protect the motor and gear system.
• Clean the Impeller and Case in time after use to keep the equipment hygienic;
• Pay attention to the temperature of the equipment during continuous use to prevent overheating;
• Follow laboratory safety practices and wear appropriate protective equipment during operation.
