Overview

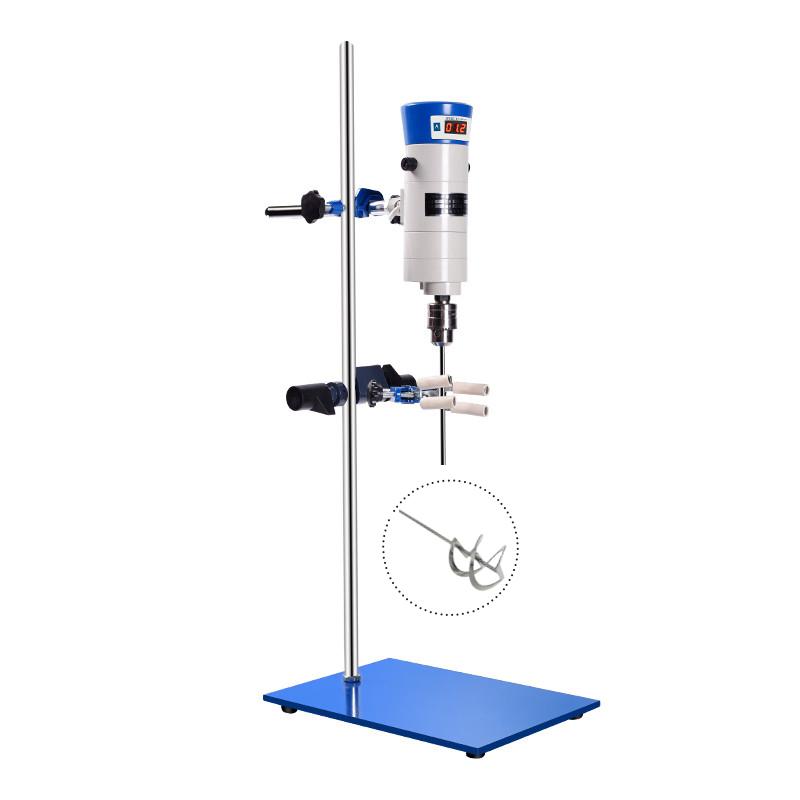

HUXI JB90-SH/20030077 digital display constant speed powerbasic stirrer is a liquid mixing and stirring equipment suitable for biological, physical and chemical, cosmetics, health products, food and other experimental fields. The product design is novel and the manufacturing process is professional. The series micro motor is used to ensure safe and reliable operation. The numerical control touch stepless governor is convenient for speed regulation and digital display of Rotation speed. The multi-stage Non-metallic gear transmission force doubles the torque, stable operation and low noise. The stirringrod special tie head is easy and flexible to unload. It is an ideal equipment for scientific research, product development, quality control and production process applications in factories, scientific research institutions, Universities & colleges and medical units.
Features
1. Impellers have a wide range of types, specifications and adaptations;
2. Impeller special rolling head, easy to uninstall and operate;
3. Open rack: media container with wide selectivity, easy mixing and mixing;
4. Instrument specifications are diverse to meet the mixing requirements of different sample capacities and viscosities.
5. Segmental variable speed control: Rotation speed of experimental operation can be selected arbitrarily, with wide application range and convenient speed regulation;
6. Aluminum metal casing ensures mechanical accuracy for long-term use and electrical performance for continuous use;
7. The drive motor adopts a series micro motor with large Power and compact structure, which runs safely and reliably;
8. Novel product design, professional manufacturing process, large torque output at low speed, good continuous use performance;
9. Multi-stage Non-metallic gears are used to transmit force, torque is doubled, running state is stable, and noise is low;
Principle
The Stirrer provides power through the drive motor, using a series micro motor to ensure high power and compact structure, safe and reliable operation. Control motion state adopts numerical control touch type stepless governor to realize arbitrary Rotation speed selection and digital display. The output booster mechanism adopts multi-stage Non-metallic gears to transmit booster force, which doubles the torque and ensures stable running state and low noise. The stirringrod is fixed by a special tie head, and the unloading is simple and flexible to achieve efficient liquid mixing.
Applications
Biological, physical and chemical, cosmetics, health products, food and other experimental fields, factories, scientific research institutions, Universities & colleges, medical units
Steps
1. Select and install a suitable Impeller, and use a special rolling head to fix the stirringrod;
2. Place the Stirrer on the open rack and select the media container.
3. Connect the power supply and turn on the device;
4. Rotation speed set by numerical control touch stepless governor, observe the digital display;
5. Start mixing and monitor the running status.
6. Turn off the device after use and remove the Impeller for cleaning;
Notice
• Power supply voltage is AC 220 V 50 Hz to avoid voltage mismatch;
• Select the appropriate Impeller and Rotation speed according to the sample volume and viscosity;
• Use a special rolling head to fix the stirringrod to ensure flexible and safe unloading;
• To avoid overload operation, Max. Torque is 94N.cm;
• Regularly check the aluminum metal casing and gear mechanism to ensure mechanical accuracy;
• Pay attention to the heating of the equipment during continuous use to ensure stable electrical performance;
• Disconnect power during cleaning and maintenance to prevent the risk of electric shock.
