Overview

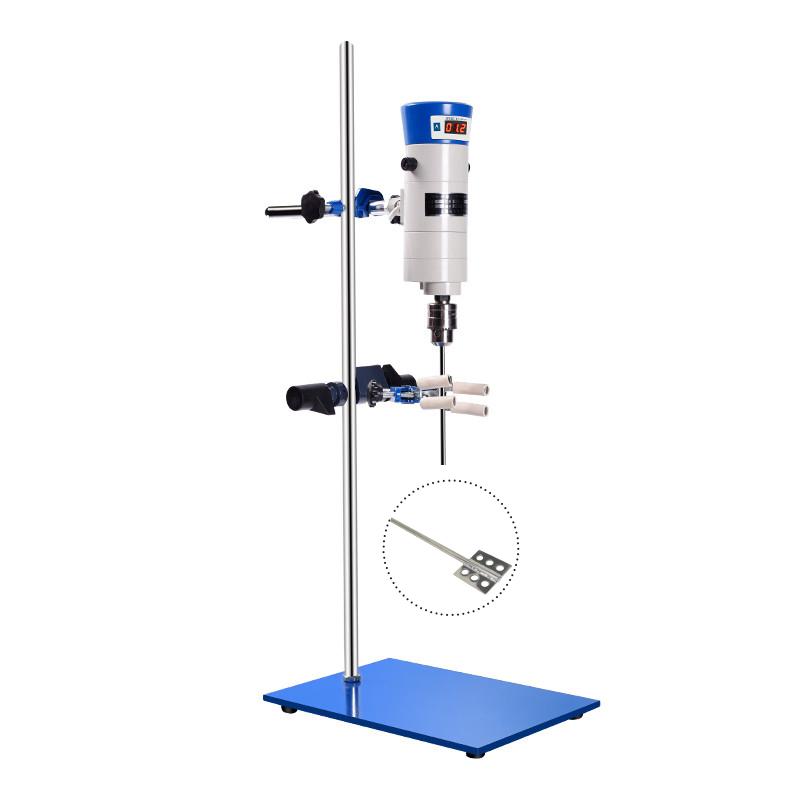

HUXI JB90-SH/20030096 digital display constant speed powerbasic stirrer is a liquid mixing and stirring equipment suitable for biological, physical and chemical, cosmetics, health products, food and other experimental fields. The product design is novel and the manufacturing process is professional. It has the characteristics of large torque output at low speed and good continuous use performance. It adopts a series micro motor to ensure safe and reliable operation. The numerical control touch stepless governor is convenient for speed regulation and digital display of Rotation speed status. It is an ideal equipment for scientific research, product development, quality control and production in factories, scientific research institutions, Universities & colleges and medical units.
Features
1. A wide variety of Impellers, various specifications, and a wide range of adaptations
2. Impeller special rolling head, easy to uninstall and operate
3. Open rack: wide selection of media containers, easy mixing and mixing
4. Various instrument specifications to meet the mixing requirements of different sample capacities and different viscosities
5. Segmental variable speed control: Rotation speed of experimental operation can be selected arbitrarily, with wide application range and convenient speed regulation
6. Aluminum metal casing ensures mechanical accuracy for long-lasting use and electrical performance for continuous use
7. The drive motor adopts a series micro motor with large Power and compact structure, which runs safely and reliably
8. Novel product design, professional manufacturing process, large torque output at low speed, good continuous use performance
9. Multi-stage Non-metallic gears are used to transmit force, torque is doubled, running state is stable, and noise is low
Principle
The Stirrer is powered by a drive motor and adopts a multi-stage Non-metallic gear transmission booster mechanism to double the torque and achieve stable operation and low noise. The control motion state adopts a numerical control touch stepless governor, which can adjust the Rotation speed arbitrarily and display the running status digitally to ensure correct data collection. The Impeller is fixed by a special tie, and the unloading is simple and flexible to meet the mixing and stirring needs of different experimental media.
Applications
Biological, physical and chemical, cosmetics, health products, food and other experimental fields, factories, scientific research institutions, Universities & colleges, medical units
Steps
1. Select the appropriate Impeller type and specification according to the experimental requirements
2. Install the Impeller with a special roll head to ensure firm fixation
3. Place the Stirrer on a stable work surface
4. Connect the power supply and turn on the device switch.
5. Rotation speed required by numerical control touch stepless governor
6. Observe the number display Rotation speed status, start stirring operation
7. After the experiment is completed, turn off the power and remove the Impeller for cleaning and maintenance
Notice
• Power supply voltage meets AC 220V 50Hz requirements before use
• When installing the Impeller, ensure that the special rolling head is firmly fixed to prevent loosening
• Choose the appropriate Impeller type and Rotation speed according to the medium viscosity and container size
Equipment should be kept stable during operation to avoid severe vibration
• Regularly check the motor and transmission mechanism to ensure normal operation
• Please disconnect the power supply during cleaning and maintenance to ensure safety
