Overview

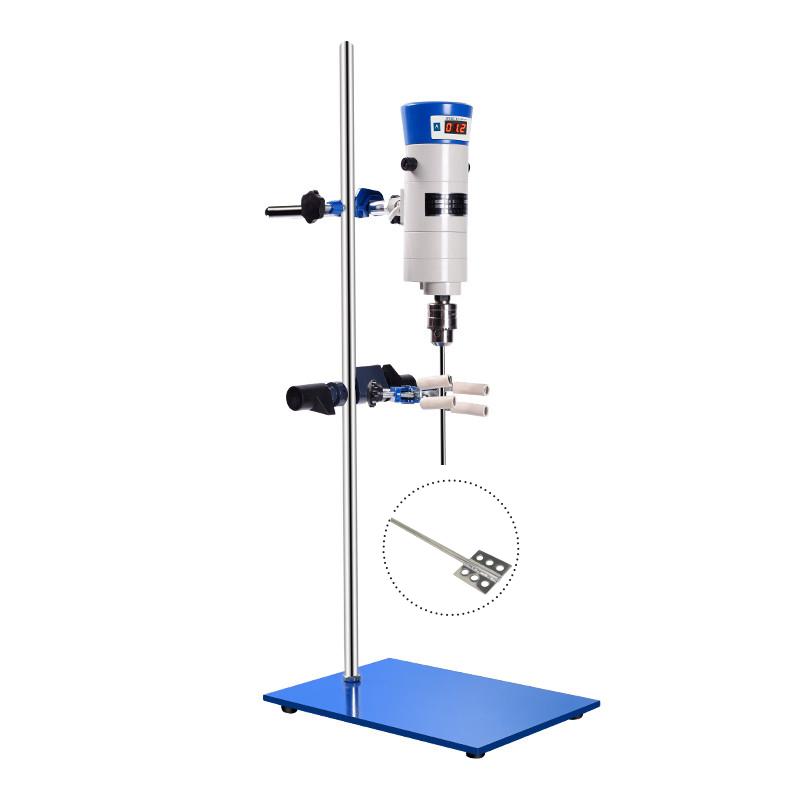

HUXI JB90-SH/20030095 digital display constant speed powerbasic stirrer is a liquid mixing and stirring equipment suitable for biological, physical and chemical, cosmetics, health products, food and other experimental fields. The product design is novel and the manufacturing process is professional. It is driven by a series micro motor and controlled by a numerical control touch stepless governor. It has the characteristics of large torque output at low speed and good continuous use performance. It is an ideal equipment for scientific research, product development, quality control and production process applications in factories, scientific research institutions, Universities & colleges and medical units.
Features
1. Impellers have a wide range of types, specifications and adaptations;
2. Impeller special rolling head, easy to uninstall and operate;
3. Open rack: media container with wide selectivity, easy mixing and mixing;
4. Instrument specifications are diverse to meet the mixing requirements of different sample capacities and viscosities.
5. Segmental variable speed control: Rotation speed of experimental operation can be selected arbitrarily, with wide application range and convenient speed regulation;
6. Aluminum metal casing ensures mechanical accuracy for long-term use and electrical performance for continuous use;
7. The drive motor adopts a series micro motor with large Power and compact structure, which runs safely and reliably;
8. Novel product design, professional manufacturing process, large torque output at low speed, good continuous use performance;
9. Multi-stage Non-metallic gears are used to transmit force, torque is doubled, running state is stable, and noise is low;
Principle
The Stirrer is powered by a series-excited micro-motor, and uses a numerical control touch stepless governor to control the motion state, realizing arbitrary Rotation speed adjustment and digital display of the running Rotation speed. The torque is multiplied by a multi-stage Non-metallic gear transmission booster to ensure stable running state and low noise. The special tie head design of the stirringrod makes it easy and flexible to unload and achieve efficient liquid mixing and stirring.
Applications
Biological, physical and chemical, cosmetics, health products, food and other experimental fields, factories, scientific research institutions, Universities & colleges, medical units
Steps
1. Select the appropriate Impeller according to the experimental requirements;
2. Use a special rolling head to install the Impeller to ensure firm fixation;
3. Place the Stirrer on a stable bench and connect the power supply.
4. Rotation speed required by numerical control touch stepless governor;
5. Start the device and observe the digital display Rotation speed status;
6. After the experiment is completed, turn off the power supply and remove the Impeller for cleaning.
Notice
• Power supply voltage meets AC 220V 50Hz requirements before use
• When installing the Impeller, ensure that the special rolling head is firmly fixed
• Select the appropriate Impeller type based on medium viscosity and container size
• Pay attention to observe the Rotation speed display during operation to avoid overspeed operation
• Pay attention to the motor temperature when the equipment is used continuously to avoid overheating
• Please disconnect the power supply during cleaning and maintenance to ensure safety
