Overview

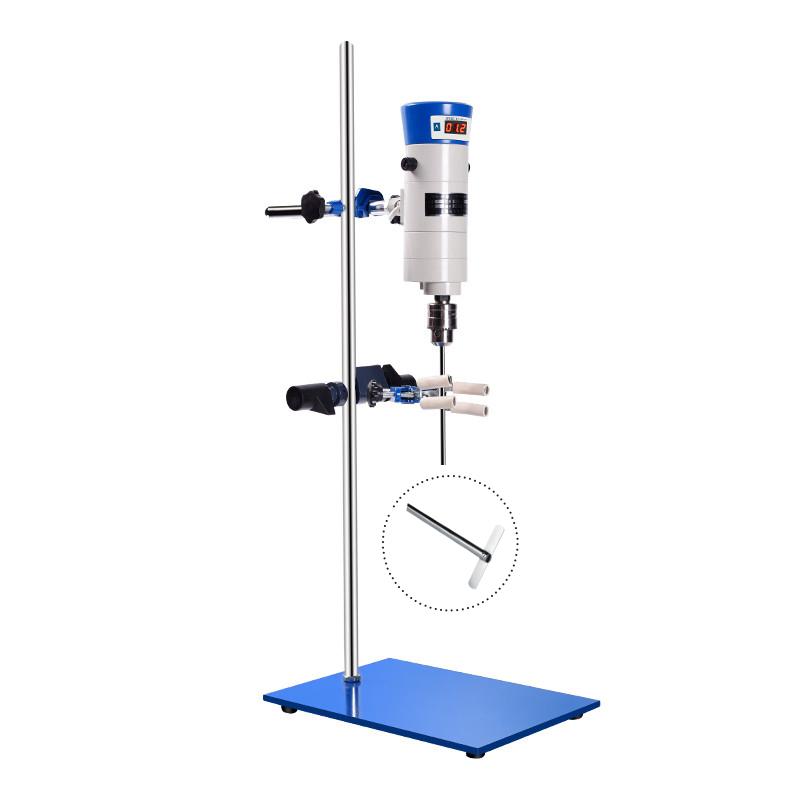

HUXI JB90-SH/20030031 Digital display constant speed powerbasic stirrer is a liquid mixing and stirring equipment suitable for biological, physical and chemical, cosmetics, health products, food and other experimental fields. The product design is novel and the manufacturing process is professional. It has the characteristics of large torque output at low speed and good continuous use performance. It adopts a series micro motor to ensure safe and reliable operation. The numerical control touch stepless governor is convenient for speed regulation and digital display Rotation speed. It is an ideal equipment for scientific research, product development, quality control and production process application in factories, scientific research institutions, Universities & colleges and medical units.
Features
1. Impellers have a wide range of types, specifications and adaptations;
2. Impeller special rolling head, easy to uninstall and operate;
3. Open rack: media container with wide selectivity, easy mixing and mixing;
4. Instrument specifications are diverse to meet the mixing requirements of different sample capacities and viscosities.
5. Segmental variable speed control: Rotation speed of experimental operation can be selected arbitrarily, with wide application range and convenient speed regulation;
6. Aluminum metal casing ensures mechanical accuracy for long-term use and electrical performance for continuous use;
7. The drive motor adopts a series micro motor with large Power and compact structure, which runs safely and reliably;
8. Novel product design, professional manufacturing process, large torque output at low speed, good continuous use performance;
9. Multi-stage Non-metallic gears are used to transmit force, torque is doubled, running state is stable, and noise is low;
Principle
The Stirrer is powered by a drive motor and uses a multi-stage Non-metallic gear transmission booster mechanism to double the torque, ensuring stable operation and low noise. The control motion state adopts a numerical control touch stepless governor to realize arbitrary Rotation speed adjustment, and runs Rotation speed in real time through digital display to ensure correct data collection. Impeller flexibly loads and unloads through special prongs to adapt to different experimental needs.
Applications
Biological, physical and chemical, cosmetics, health products, food and other experimental fields, factories, scientific research institutions, Universities & colleges, medical units
Steps
1. Select the appropriate Impeller type and specification according to the experimental requirements.
2. Use a special rolling head to install the Impeller to ensure flexible loading and unloading.
3. Place the Stirrer in a stable position and connect it to a power supply (AC 220 V 50 Hz).
4. Rotation speed (100~ 1400rpm range) is set by numerical control touch stepless governor;
5. Start the equipment, observe the digital display Rotation speed status, and perform stirring operation;
6. After the experiment is completed, turn off the power and remove the Impeller for cleaning and maintenance.
Notice
• Power supply voltage is AC 220 V 50 Hz to avoid using improper voltage;
• Check whether the Impeller installation is firm before operation to prevent peeling during operation;
• Select the appropriate Impeller according to the viscosity of the medium and the size of the container to avoid overloading;
• Do not touch the swirl/spin parts during the operation of the equipment to ensure safe operation;
• Regularly clean and maintain equipment to maintain mechanical accuracy and electrical performance;
• Turn off the power supply in time after use to avoid idling for a long time.
