Overview

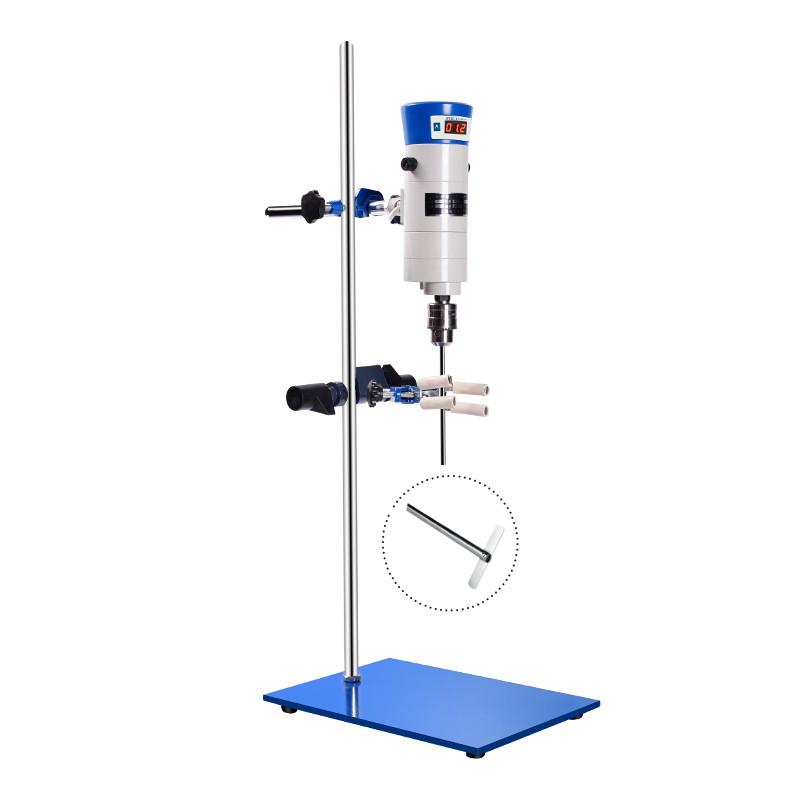

HUXI JB90-SH/20030004 Digital display constant speed powerbasic stirrer is a liquid mixing and stirring equipment suitable for biological, physical and chemical, cosmetics, health products, food and other experimental fields. The product design is novel and the manufacturing process is professional. It adopts series micro motor drive, numerical control touch stepless governor control, multi-stage Non-metallic gear transmission and force enhancement. It has the characteristics of large torque output at low speed, good continuous use performance, safe and reliable operation, convenient speed regulation, digital display Rotation speed, stable operation and low noise. It is an ideal equipment for scientific research, product development, quality control and production process application in factories, scientific research institutions, Universities & colleges and medical units.
Features
1. A wide variety of Impellers, various specifications, and a wide range of adaptations
2. Impeller special rolling head, easy to uninstall and operate
3. Open rack: wide selection of media containers, easy mixing and mixing
4. Various instrument specifications to meet the mixing requirements of different sample capacities and different viscosities
5. Segmental variable speed control: Rotation speed of experimental operation can be selected arbitrarily, with wide application range and convenient speed regulation
6. Aluminum metal casing ensures mechanical accuracy for long-lasting use and electrical performance for continuous use
7. The drive motor adopts a series micro motor with large Power and compact structure, which runs safely and reliably
8. Novel product design, professional manufacturing process, large torque output at low speed, good continuous use performance
9. Multi-stage Non-metallic gears are used to transmit force, torque is doubled, running state is stable, and noise is low
Principle
The Stirrer is powered by a series-excited micro-motor, and uses a numerical control touch stepless governor to control the running state, realizing arbitrary Rotation speed adjustment and digital display of the running Rotation speed. The torque is multiplied by a multi-stage Non-metallic gear transmission booster mechanism to ensure stable running state and low noise. The dedicated pin head design of the stirringrod makes it easy and flexible to unload, and the open rack allows for a wide selection of media containers.
Applications
Biological, physical and chemical, cosmetics, health products, food and other experimental fields, factories, scientific research institutions, Universities & colleges, medical units
Steps
1. Choose the right Impeller according to the experimental needs
2. Install the Impeller with a special rolling head to ensure convenient and flexible unloading
3. Place the Stirrer on an open rack and select the appropriate media container
4. Connect the power supply (AC 220V 50Hz)
5. Rotation speed required by numerical control touch stepless governor (100~ 1400rpm range)
6. Start the device and observe the running Rotation speed status of the digital display
7. Rotation speed adjusted according to experimental requirements, mixing operation
8. Turn off the power after the experiment and remove the Impeller for cleaning and maintenance
Notice
• Power supply voltage is AC 220V 50Hz
• Impeller installation requires special rolling head to ensure firmness and reliability
• Rotation speed adjustment should be carried out within the range of 100~ 1400rpm
Processing capacity should not exceed 28L
• Pay attention to observe the running status when the equipment is used continuously
• Please disconnect the power supply during cleaning and maintenance
• Do not use the device beyond the range of specifications
