Overview

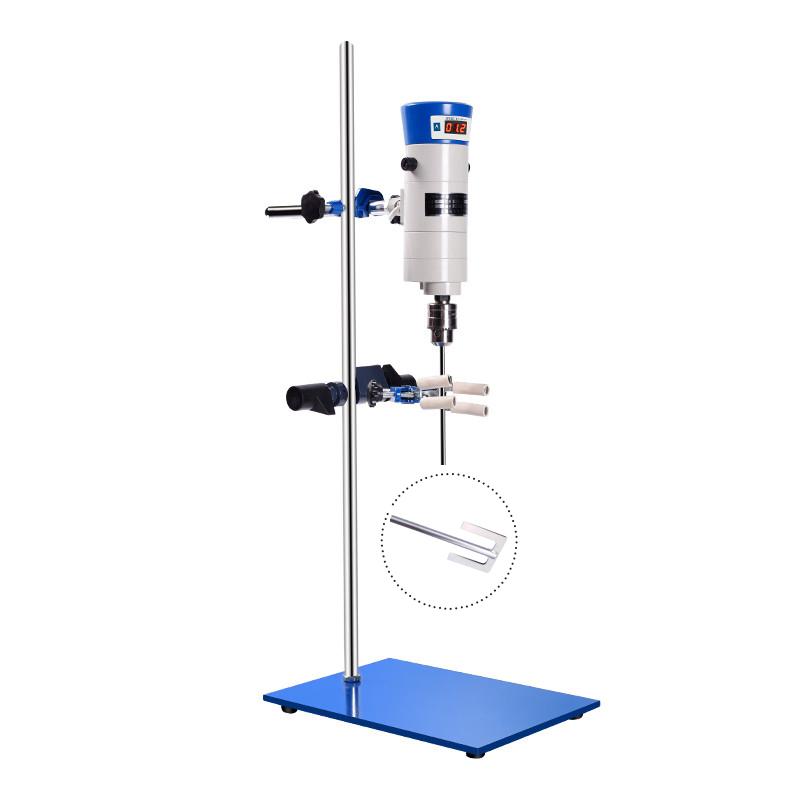

HUXI JB90-SH/20030050 digital display constant speed powerbasic stirrer is a liquid mixing and stirring equipment suitable for biological, physical and chemical, cosmetics, health products, food and other experimental fields. The product design is novel and the manufacturing process is professional. It has the characteristics of large torque output at low speed and good continuous use performance. It adopts a series micro motor to ensure safe and reliable operation. The numerical control touch stepless governor is convenient for speed regulation and digital display Rotation speed. It is an ideal equipment for scientific research, product development, quality control and production process in factories, scientific research institutions, Universities & colleges and medical units.
Features
1. Impellers have a wide range of types, specifications and adaptations;
2. Impeller special rolling head, easy to uninstall and operate;
3. Open rack: media container with wide selectivity, easy mixing and mixing;
4. Instrument specifications are diverse to meet the mixing requirements of different sample capacities and viscosities.
5. Segmental variable speed control: Rotation speed of experimental operation can be selected arbitrarily, with wide application range and convenient speed regulation;
6. Aluminum metal casing ensures mechanical accuracy for long-term use and electrical performance for continuous use;
7. The drive motor adopts a series micro motor with large Power and compact structure, which runs safely and reliably;
8. Novel product design, professional manufacturing process, large torque output at low speed, good continuous use performance;
9. Multi-stage Non-metallic gears are used to transmit force, torque is doubled, running state is stable, and noise is low;
Principle
The Stirrer is powered by a drive motor and uses a multi-stage Non-metallic gear transmission booster mechanism to double the torque for stable operation and low noise. The control motion state adopts a numerical control touch stepless governor, which can adjust the Rotation speed arbitrarily and display the running status digitally to ensure correct data collection. The special pin design of the stirringrod makes it easy and flexible to unload, and is suitable for mixing and stirring of various liquid media.
Applications
Biological, physical and chemical, cosmetics, health products, food and other experimental fields, factories, scientific research institutions, Universities & colleges, medical units
Steps
1. Select the appropriate Impeller type and specification according to the experimental requirements.
2. Use the Impeller special rolling head to install the Impeller to ensure convenient and flexible unloading;
3. Place the Stirrer on an open rack and select the appropriate media container.
4. Connect the power supply (AC 220 V 50 Hz);
5. Rotation speed (100~ 1400rpm range) is set by numerical control touch stepless governor;
6. Start the device and observe the digital display Rotation speed status;
7. Turn off the power after stirring and remove the Impeller for cleaning.
Notice
• Power supply voltage is AC 220 V 50 Hz to avoid mismatched power supply;
• Check whether the Impeller installation is firm before operation to prevent peeling during operation;
• Select the appropriate Impeller type and Rotation speed based on liquid viscosity and sample capacity;
• Avoid overloading, Max. Torque is 94N.cm;
• Pay attention to the temperature of the equipment during continuous use to ensure that it operates within a safe range.
• Disconnect power during cleaning and maintenance to prevent the risk of electric shock.
Keep the equipment drying during storage to avoid humid environment affecting electrical performance.
