Overview

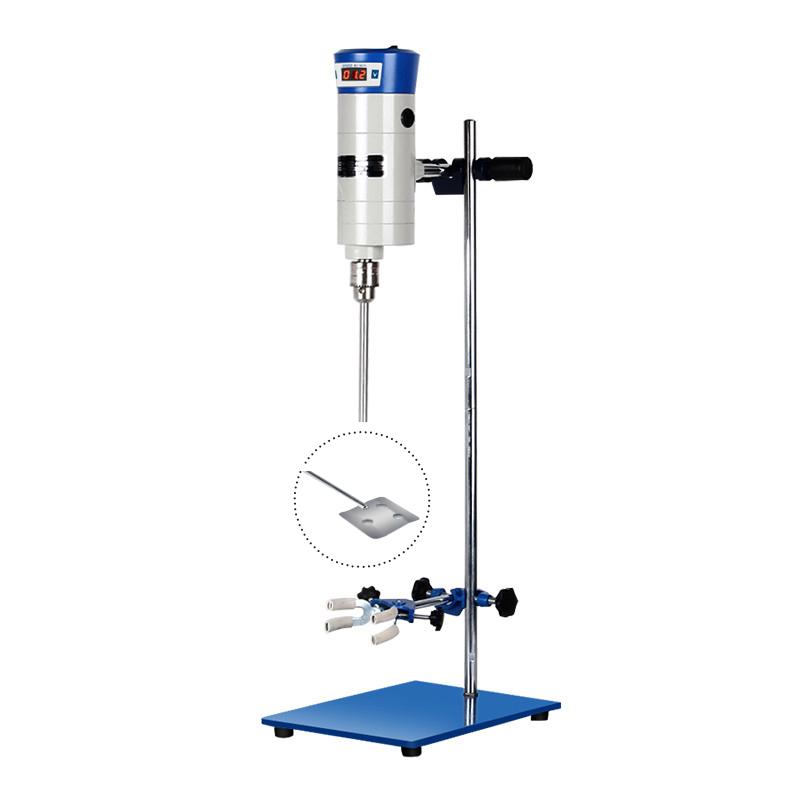

HUXI JB300-SH/20030043 digital display constant speed powerbasic stirrer is a liquid mixing and stirring equipment suitable for biological, physical and chemical, cosmetics, health products, food and other experimental fields. The product design is novel and the manufacturing process is professional. It adopts series micro-motor to provide high power output, low-speed running torque is large, continuous use performance is good, equipped with numerical control touch stepless governor and digital display function. It is an ideal equipment for scientific research, product development, quality control and production process in factories, scientific research institutions, Universities & colleges and medical units.
Features
1. Impellers have a wide range of types, specifications and adaptations;
2. Impeller special rolling head, easy to uninstall and operate;
3. Open rack: media container with wide selectivity, easy mixing and mixing;
4. Instrument specifications are diverse to meet the mixing requirements of different sample capacities and viscosities.
5. Segmental variable speed control: Rotation speed of experimental operation can be selected arbitrarily, with wide application range and convenient speed regulation;
6. Aluminum metal casing ensures mechanical accuracy for long-term use and electrical performance for continuous use;
7. The drive motor adopts a series micro motor with large Power and compact structure, which runs safely and reliably;
8. Novel product design, professional manufacturing process, large torque output at low speed, good continuous use performance;
9. Multi-stage Non-metallic gears are used to transmit force, torque is doubled, running state is stable, and noise is low;
Principle
The Stirrer is powered by a series-excited micro-motor and uses a multi-stage Non-metallic gear transmission booster mechanism to double the torque for stable operation and low noise. The control motion state adopts a numerical control touch stepless governor, which can adjust the Rotation speed arbitrarily and display the running status digitally to ensure correct data collection. The special pin head design of the stirringrod makes unloading easy and flexible.
Applications
Biological, physical and chemical, cosmetics, health products, food and other experimental fields, factories, scientific research institutions, Universities & colleges, medical units
Steps
1. Select the appropriate Impeller type and specification according to the experimental requirements.
2. Install the Impeller with a special rolling head to ensure convenient and flexible unloading;
3. Place the Stirrer on an open rack and select the appropriate media container.
4. Connect the power supply (AC 220 V 50 Hz);
5. Rotation speed (50~ 1500rpm range) set by numerical control touch stepless governor;
6. Start the device and observe the digital display Rotation speed status;
7. Perform mixing operations and monitor the operating status.
8. Turn off the power supply after use, and remove the Impeller for cleaning and maintenance;
Notice
• Power supply voltage is AC 220 V 50 Hz to avoid mismatched power supply;
• Select the appropriate Impeller type and instrument specification based on sample volume and viscosity;
• Pay attention to the large torque output during low-speed operation to ensure that the container is firmly fixed;
• Pay attention to the temperature of the equipment during continuous use to avoid overheating affecting the performance;
• Use special rolling head when loading and unloading Impeller to avoid damage to equipment;
• Regularly check the multi-stage Non-metallic gear transmission mechanism to ensure stable operation;
• Keep the aluminum metal casing clean to ensure lasting mechanical accuracy;
• Pay attention to safety during operation and avoid touching the stirring parts in operation;
