Overview

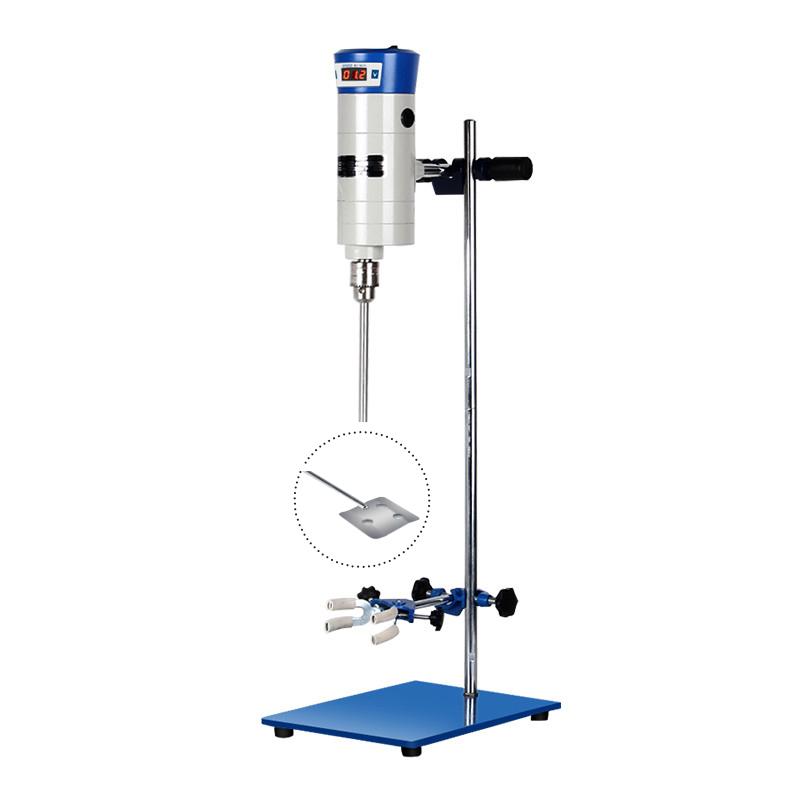

HUXI JB300-SH/20030003 digital display constant speed powerbasic stirrer is a liquid mixing and stirring equipment suitable for biological, physical and chemical, cosmetics, health products, food and other experimental fields. The product design is novel and the manufacturing process is professional. It has the characteristics of large torque output at low speed and good continuous use performance. It adopts a series micro motor to ensure safe and reliable operation. The numerical control touch stepless governor is convenient for speed regulation and digital display Rotation speed. It is an ideal equipment for scientific research, product development, quality control and production process application in factories, scientific research institutions, Universities & colleges and medical units.
Features
1. Impellers have a wide range of types, specifications and adaptations;
2. Impeller special rolling head, easy to uninstall and operate;
3. Open rack: media container with wide selectivity, easy mixing and mixing;
4. Instrument specifications are diverse to meet the mixing requirements of different sample capacities and viscosities.
5. Segmental variable speed control: Rotation speed of experimental operation can be selected arbitrarily, with wide application range and convenient speed regulation;
6. Aluminum metal casing ensures mechanical accuracy for long-term use and electrical performance for continuous use;
7. The drive motor adopts a series micro motor with large Power and compact structure, which runs safely and reliably;
8. Novel product design, professional manufacturing process, large torque output at low speed, good continuous use performance;
9. Multi-stage Non-metallic gears are used to transmit force, torque is doubled, running state is stable, and noise is low;
Principle
The Stirrer is powered by a drive motor and uses a multi-stage Non-metallic gear transmission booster mechanism to double the torque and achieve stable and low-noise operation. The control motion state adopts a numerical control touch stepless governor, which can adjust the Rotation speed arbitrarily, and the Rotation speed status is displayed digitally to ensure correct data collection. The Impeller is flexibly installed through a special pin to adapt to different experimental needs.
Applications
Biological, physical and chemical, cosmetics, health products, food and other experimental fields, factories, scientific research institutions, Universities & colleges, medical units
Steps
1. Select the appropriate Impeller type and specification according to the experimental requirements.
2. Use the Impeller special rolling head to install the Impeller to ensure convenient and flexible unloading;
3. Place the Stirrer in a stable position and connect it to a power supply (AC 220 V 50 Hz).
4. Rotation speed required by numerical control touch stepless governor (50~ 1500rpm range);
5. Start the equipment, observe the digital display Rotation speed status, and perform stirring operation;
6. After the experiment is completed, turn off the power and remove the Impeller for cleaning and maintenance.
Notice
• Power supply voltage is AC 220 V 50 Hz to avoid using improper voltage;
• Check whether the Impeller installation is firm before operation to prevent peeling during operation;
• Select the appropriate Impeller type and Rotation speed according to the medium viscosity and container size;
• Pay attention to observe the running state of the equipment when it is running to avoid overload or abnormal noise.
• Regularly clean and maintain equipment to ensure the long-lasting performance of aluminum enclosures and mechanical components;
• Uninstall the Impeller in time after use to keep the equipment tidy.
