Overview

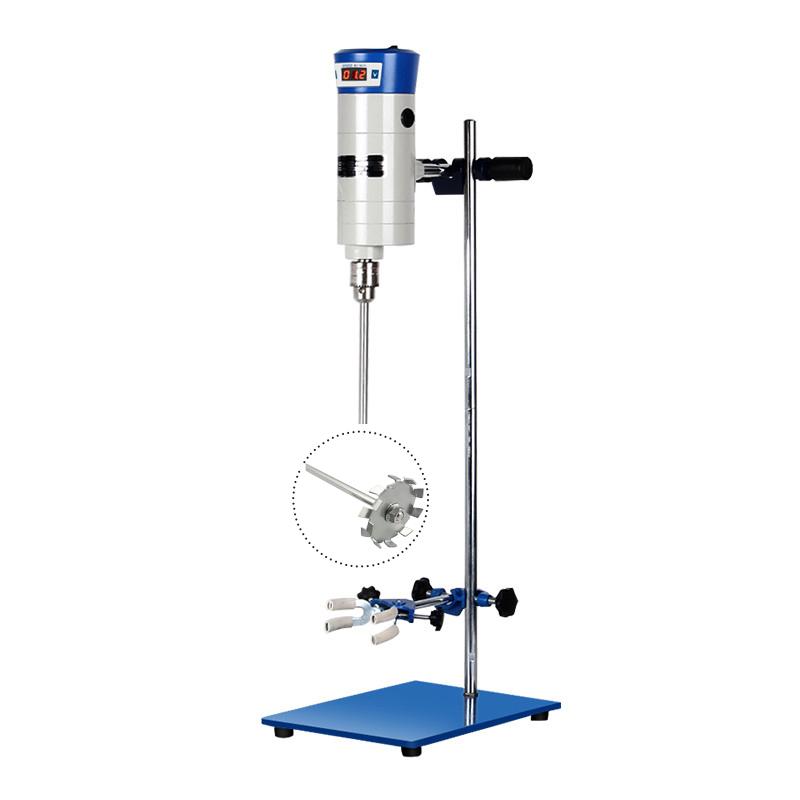

HUXI JB300-SH/20030052 digital display constant speed powerbasic stirrer is a liquid mixing stirrer suitable for biological, physical and chemical, cosmetics, health products, food and other experimental fields. The product design is novel, the manufacturing process is professional, the low-speed running torque output is large, the continuous use performance is good, the series micro motor is safe and reliable, the numerical control touch stepless governor is convenient for speed regulation and digital display Rotation speed, the multi-stage Non-metallic gear transfer force enhances the operation Stable, low noise, the stirringrod special head is easy and flexible to unload, it is an ideal equipment for factories, scientific research institutions, Universities & colleges and medical units.
Features
1. A wide variety of Impellers, various specifications, and a wide range of adaptations
2. Impeller special rolling head, easy to uninstall and operate
3. Open rack: wide selection of media containers, easy mixing and mixing
4. Various instrument specifications to meet the mixing requirements of different sample capacities and different viscosities
5. Segmental variable speed control: Rotation speed of experimental operation can be selected arbitrarily, with wide application range and convenient speed regulation
6. Aluminum metal casing ensures mechanical accuracy for long-lasting use and electrical performance for continuous use
7. The drive motor adopts a series micro motor with large Power and compact structure, which runs safely and reliably
8. Novel product design, professional manufacturing process, large torque output at low speed, good continuous use performance
9. Multi-stage Non-metallic gears are used to transmit force, torque is doubled, running state is stable, and noise is low
Principle
The drive motor is powered by a series micro-motor, and the torque is multiplied by a multi-stage Non-metallic gear transmission booster mechanism. The control motion state is controlled by a numerical control touch stepless governor to achieve arbitrary Rotation speed adjustment. The digital display of the running Rotation speed status ensures that the data collection is correct. Impeller realizes the mixing and stirring of the liquid medium through a special tie head.
Applications
Biological, physical and chemical, cosmetics, health products, food and other experimental fields, factories, scientific research institutions, Universities & colleges, medical units
Steps
1. Select the appropriate Impeller type and specification according to the experimental requirements
2. Install the Impeller with a special roll head to ensure firm fixation
3. Place the Stirrer on an open rack and select the appropriate media container
4. Connect the power supply (AC 220 V 50 Hz)
5. Rotation speed required by numerical control touch stepless governor (50~ 1500rpm range)
6. Start the device and observe the running Rotation speed status of the digital display
7. Turn off the power after stirring, and remove the Impeller for cleaning and maintenance
Notice
• Power supply voltage AC 220 V 50 Hz before use
• Impeller installation needs to ensure that the special rolling head is firmly fixed
• Rotation speed adjustment should be carried out within the range of 50~ 1500rpm
Processing capacity should not exceed 85L
• Pay attention to equipment temperature changes during continuous use
• Please disconnect the power supply during cleaning and maintenance
• When selecting an Impeller, it should be matched according to the viscosity of the medium and the size of the container
• Pay attention to observe the running status of the equipment during operation, and stop the machine in time for inspection if there is any abnormality
