Overview

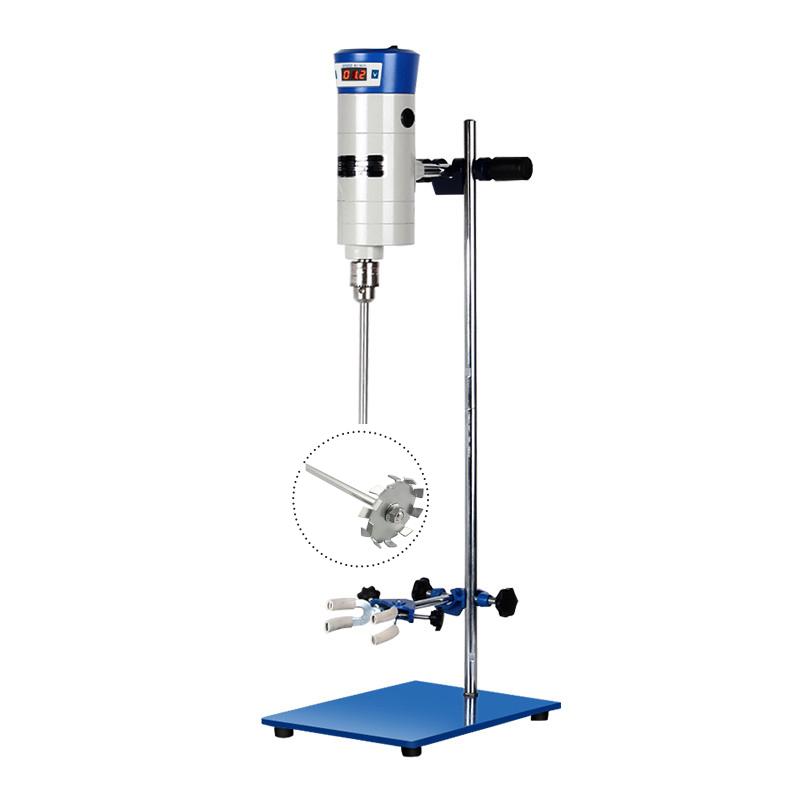

HUXI JB300-SH/20030053 digital display constant speed powerbasic stirrer is a liquid mixing and stirring equipment suitable for biological, physical and chemical, cosmetics, health products, food and other experimental fields. The product design is novel and the manufacturing process is professional. It is driven by a series micro motor and controlled by a numerical control touch stepless governor. It has the characteristics of large torque output at low speed, good continuous use performance, safe and reliable operation, convenient speed regulation, and digital display Rotation speed. It is an ideal equipment for scientific research, product development, quality control and production process application in factories, scientific research institutions, Universities & colleges and medical units.
Features
1. A wide variety of Impellers, various specifications, and a wide range of adaptations
2. Impeller special rolling head, easy to uninstall and operate
3. Open rack: wide selection of media containers, easy mixing and mixing
4. Various instrument specifications to meet the mixing requirements of different sample capacities and different viscosities
5. Segmental variable speed control: Rotation speed of experimental operation can be selected arbitrarily, with wide application range and convenient speed regulation
6. Aluminum metal casing ensures mechanical accuracy for long-lasting use and electrical performance for continuous use
7. The drive motor adopts a series micro motor with large Power and compact structure, which runs safely and reliably
8. Novel product design, professional manufacturing process, large torque output at low speed, good continuous use performance
9. Multi-stage Non-metallic gears are used to transmit force, torque is doubled, running state is stable, and noise is low
Principle
The Stirrer provides power through a series-excited micro-motor, uses a multi-stage Non-metallic gear transmission booster mechanism to double the torque, and controls the operating state through a numerical control touch stepless governor to achieve stepless speed regulation in the range of 50~ 1500rpm. Rotation speed status is displayed digitally to ensure correct data collection.
Applications
Biological, physical and chemical, cosmetics, health products, food and other experimental fields, factories, scientific research institutions, Universities & colleges, medical units
Steps
1. Select the right Impeller and install it on the special rolling head
2. Place the Stirrer on a smooth work surface
3. Connect the power supply (AC 220V 50Hz)
4. Rotation speed set by numerical control touch governor
5. Start the equipment and start the mixing operation
6. Observe the running Rotation speed status of the digital display
7. Turn off the power after use and uninstall the Impeller
Notice
• Power supply voltage AC 220V 50Hz before use
Equipment should be placed on a stable work surface for operation
• Select the appropriate Impeller type and specification according to the experimental requirements
• Note that the Speed range is controlled within 50~ 1500rpm
Processing capacity does not exceed 85L
• Pay attention to safety during operation and avoid touching moving parts
• Clean and maintain the equipment in time after use
