Overview

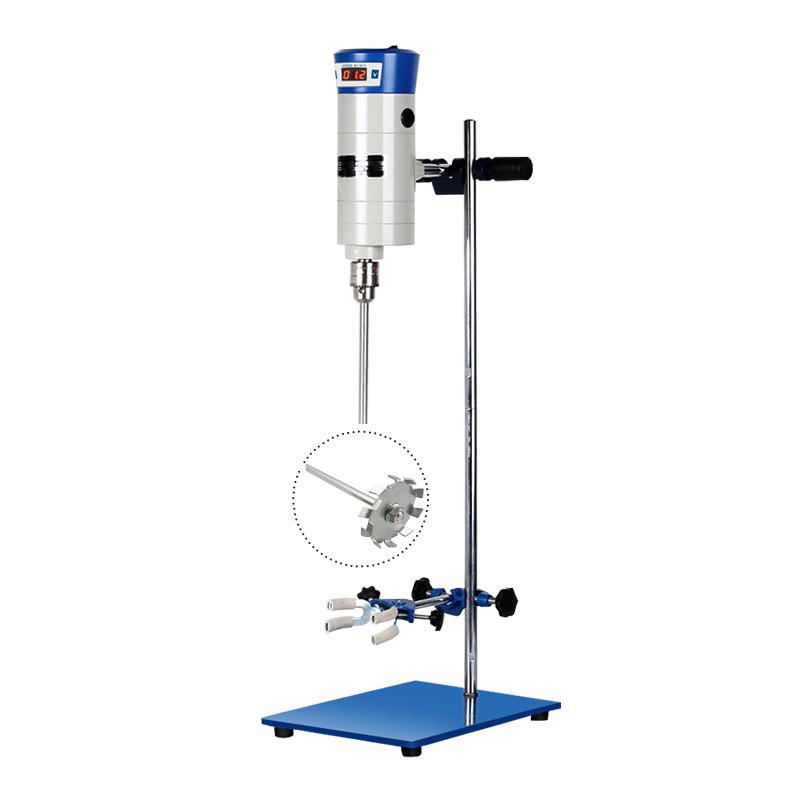

HUXI JB300-SH/20030055 digital display constant speed powerbasic stirrer is a liquid mixing and stirring equipment suitable for biological, physical and chemical, cosmetics, health products, food and other experimental fields. The product design is novel and the manufacturing process is professional. It is driven by a series micro motor and controlled by a numerical control touch type stepless governor. It has the characteristics of large torque output at low speed, good performance in continuous use, and safe and reliable operation.
Features
1. A wide variety of Impellers, various specifications, and a wide range of adaptations
2. Impeller special rolling head, easy to uninstall and operate
3. Open rack: wide selection of media containers, easy mixing and mixing
4. Various instrument specifications to meet the mixing requirements of different sample capacities and different viscosities
5. Segmental variable speed control: Rotation speed of experimental operation can be selected arbitrarily, with wide application range and convenient speed regulation
6. Aluminum metal casing ensures mechanical accuracy for long-lasting use and electrical performance for continuous use
7. The drive motor adopts a series micro motor with large Power and compact structure, which runs safely and reliably
8. Novel product design, professional manufacturing process, large torque output at low speed, good continuous use performance
9. Multi-stage Non-metallic gears are used to transmit force, torque is doubled, running state is stable, and noise is low
Principle
The Stirrer is powered by a series-excited micro-motor and uses a multi-stage Non-metallic gear transmission booster mechanism to double the torque. The motion state is controlled by a touch stepless governor through numerical control to achieve stepless speed regulation in the range of 50~ 1500rpm. Rotation speed status is displayed digitally to ensure correct data collection.
Applications
Biological, physical and chemical, cosmetics, health products, food and other experimental fields, factories, scientific research institutions, Universities & colleges, medical units
Steps
1. Choose the right Impeller according to the experimental needs
2. Install the Impeller with a special rolling head to ensure convenient and flexible unloading
3. Place the Stirrer in a suitable position and connect it to the power supply
4. Rotation speed required by numerical control touch stepless governor
5. Observe the digital display Rotation speed status and start stirring operation
6. Turn off the power after the experiment is completed, disassemble and clean the Impeller
Notice
• Power supply voltage AC 220 V 50 Hz before use
• Select the appropriate Impeller according to the medium viscosity and container size
• Speed range is 50~ 1500rpm
Processing capacity does not exceed 85L
• Regularly check whether the Impeller connection is firm
• Clean and maintain the equipment in time after use
