Overview

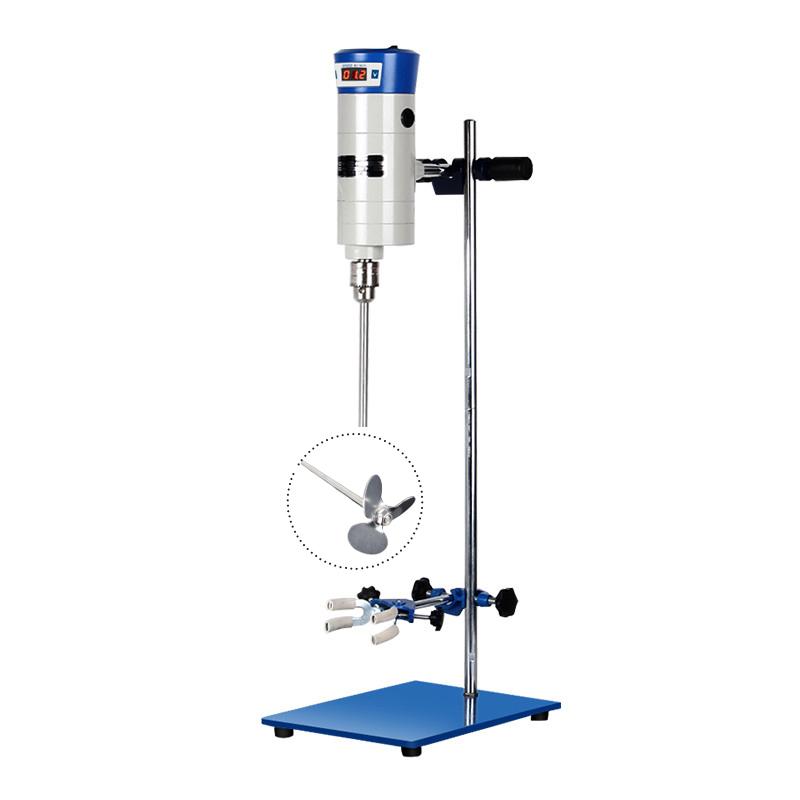

HUXI JB300-SH/20030086 digital display constant speed powerbasic stirrer is a laboratory stirring equipment, suitable for biological, physical and chemical, cosmetics, health products, food and other experimental fields, used for liquid experimental medium mixing and stirring. The product design is novel, the manufacturing process is professional, the low-speed running torque output is large, and the continuous practical performance is good. The drive motor adopts a series micro motor with large Power and compact structure, which runs safely and reliably; the control motion state adopts a numerical control touch type stepless governor, which is convenient for speed regulation, digitally displays the running Rotation speed status, and collects data correctly; the output booster mechanism adopts multi-stage Non-metallic gears to transmit the booster force, which increases the torque exponentially, the running state is stable, and the noise is low; the stirringrod special tie head, which is easy and flexible to unload. It is a satisfactory equipment for scientific research, product development, quality control and production process applications in factories, scientific research institutions, Universities & colleges and medical units.
Features
1. Impellers have a wide range of types, specifications and adaptations;
2. Impeller special rolling head, easy to uninstall and operate;
3. Open rack: media container with wide selectivity, easy mixing and mixing;
4. Instrument specifications are diverse to meet the mixing requirements of different sample capacities and viscosities.
5. Segmental variable speed control: Rotation speed of experimental operation can be selected arbitrarily, with wide application range and convenient speed regulation;
6. Aluminum metal casing ensures mechanical accuracy for long-term use and electrical performance for continuous use;
7. The drive motor adopts a series micro motor with large Power and compact structure, which runs safely and reliably;
8. Novel product design, professional manufacturing process, large torque output at low speed, good continuous use performance;
9. Multi-stage Non-metallic gears are used to transmit force, torque is doubled, running state is stable, and noise is low;
Principle
The Stirrer is powered by a drive motor (serial micro-motor) and adopts a multi-stage Non-metallic gear transmission booster mechanism to double the torque and achieve stable operation and low noise. The control motion state adopts a numerical control touch-type stepless governor, which can adjust the Rotation speed arbitrarily, and the digital display of the running status ensures the correct data collection. The Impeller is unloaded through a special tie head, which is flexible and simple, and is suitable for mixing and stirring of various liquid media.
Applications
Biology, Physicochemistry, Cosmetics, Health Products, Food, Factories, Research Institutions, Universities & colleges, Medical Units
Steps
1. Select the appropriate Impeller type and specification according to the experimental requirements.
2. Use the Impeller special rolling head to install the Impeller on the equipment to ensure flexible unloading;
3. Place the media container under the open rack and adjust the position.
4. Connect the power supply and turn on the device;
5. Rotation speed set by numerical control touch stepless governor, observe the digital display;
6. Start stirring and monitor the running status.
7. After the experiment, turn off the device, remove the Impeller, and clean it.
Notice
• Power supply voltage is AC 220 V 50 Hz to avoid voltage mismatch;
• Check whether the Impeller installation is firm before operation to prevent loosening;
• Select the appropriate Impeller type and Rotation speed according to the liquid viscosity and capacity;
• Pay attention to Noise and Stability when the equipment is running, and stop for inspection in time if there is any abnormality;
• Monitor the temperature of the equipment during continuous use to avoid overheating.
When cleaning and maintaining equipment, disconnect the power supply first.
• Only for use in laboratory environments, avoid use in humid or corrosion environments;
• Follow manufacturer specifications such as Speed range 50~ 1500rpm, Maximum Processing capacity 85L.
