Overview

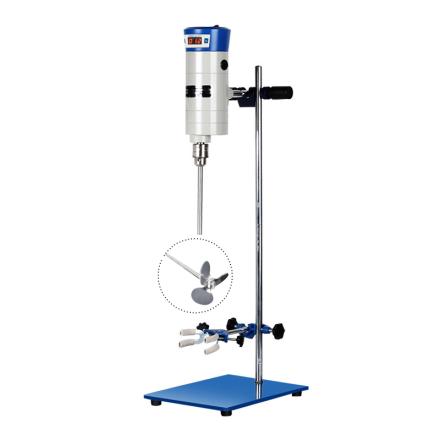

HUXI JB300-SH/20030089 digital display constant speed powerbasic stirrer is a liquid mixing and stirring equipment suitable for biological, physical and chemical, cosmetics, health products, food and other experimental fields. The product design is novel, the manufacturing process is professional, the low-speed running torque output is large, the continuous use performance is good, the series micro motor is used to ensure safe and reliable operation, the numerical control touch stepless governor is convenient for speed regulation and digital display Rotation speed, which is an ideal equipment for factories, scientific research institutions, Universities & colleges and medical units.
Features
1. Impellers have a wide range of types, specifications and adaptations;
2. Impeller special rolling head, easy to uninstall and operate;
3. Open rack: media container with wide selectivity, easy mixing and mixing;
4. Instrument specifications are diverse to meet the mixing requirements of different sample capacities and viscosities.
5. Segmental variable speed control: Rotation speed of experimental operation can be selected arbitrarily, with wide application range and convenient speed regulation;
6. Aluminum metal casing ensures mechanical accuracy for long-term use and electrical performance for continuous use;
7. The drive motor adopts a series micro motor with large Power and compact structure, which runs safely and reliably;
8. Novel product design, professional manufacturing process, large torque output at low speed, good continuous use performance;
9. Multi-stage Non-metallic gears are used to transmit force, torque is doubled, running state is stable, and noise is low;
Principle
Driven by a series micro motor, the Stirrer uses multi-stage Non-metallic gears to transmit force, doubling the torque, achieving stable operation and low noise. The control part adopts a numerical control touch stepless governor, which can adjust the Rotation speed arbitrarily and display the running status digitally to ensure the correct data collection.
Applications
Biological, physical and chemical, cosmetics, health products, food and other experimental fields, factories, scientific research institutions, Universities & colleges, medical units
Steps
1. Select the appropriate Impeller according to the experimental requirements;
2. Install the Impeller with a special rolling head to ensure convenient and flexible unloading;
3. Place the Stirrer on an open rack and select the appropriate media container.
4. Connect the power supply (AC 220 V 50 Hz);
Rotation speed (50~ 1500rpm range) set by numerical control touch stepless governor;
6. Start the device and observe the digital display Rotation speed status;
7. Turn off the power after stirring and remove the Impeller for cleaning.
Notice
• Power supply voltage is AC 220 V 50 Hz to avoid using improper voltage;
• Select the appropriate Impeller type and specification based on sample volume and viscosity;
• Use a special rolling head when installing and uninstalling the Impeller, and operate with caution;
• Pay attention to observe the Rotation speed display during operation to ensure that it is within the range of 50~ 1500rpm;
• Pay attention to the temperature of the equipment during continuous use to avoid overheating affecting the performance;
• Keep the aluminum casing clean to maintain mechanical accuracy and electrical performance;
• Clean Impellers and Equipment in time after use to prevent media residue.
