Overview

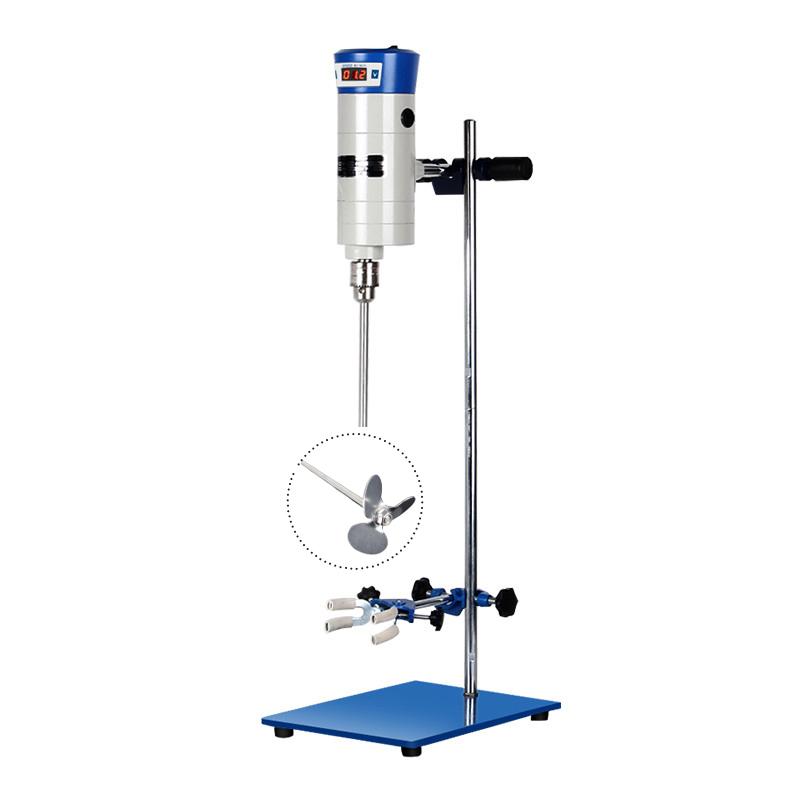

HUXI JB300-SH/20030002 Digital display constant speed powerbasic stirrer is a special laboratory equipment, suitable for liquid mixing and stirring experiments in the fields of biology, physics and chemistry, cosmetics, health products, food and other fields. The product has a novel design and adopts a professional manufacturing process. It has the characteristics of large torque output at low speed and good continuous use performance. The drive motor is a series micro motor with large Power and compact structure. It is safe and reliable to operate. It is an ideal equipment for scientific research, product development, quality control and production process applications in factories, scientific research institutions, Universities & colleges and medical units.
Features
1. Impellers have a wide range of types, specifications and adaptations;
2. Impeller special rolling head, easy to uninstall and operate;
3. Open rack: media container with wide selectivity, easy mixing and mixing;
4. Instrument specifications are diverse to meet the mixing requirements of different sample capacities and viscosities.
5. Segmental variable speed control: Rotation speed of experimental operation can be selected arbitrarily, with wide application range and convenient speed regulation;
6. Aluminum metal casing ensures mechanical accuracy for long-term use and electrical performance for continuous use;
7. The drive motor adopts a series micro motor with large Power and compact structure, which runs safely and reliably;
8. Novel product design, professional manufacturing process, large torque output at low speed, good continuous use performance;
9. Multi-stage Non-metallic gears are used to transmit force, torque is doubled, running state is stable, and noise is low;
Principle
The Stirrer provides power through the drive motor, adopts a series micro motor to ensure safe and reliable operation, and the control motion state is realized by the numerical control touch stepless governor. Rotation speed can be adjusted arbitrarily and the running status can be displayed digitally to ensure correct data collection. The output booster mechanism uses multi-stage Non-metallic gears to transmit booster force, which doubles the torque, stable operation and low noise. The special pin head design of the stirringrod makes unloading simple and flexible.
Applications
Biology, physics and chemistry, cosmetics, health products, food
Steps
1. Select the appropriate Impeller type and specification according to the experimental requirements.
2. Use the Impeller special rolling head to install the Impeller to ensure convenient and flexible unloading;
3. Place the media container under the open rack to ensure that the container is properly selected.
4. Connect the power supply and start the device.
5. Rotation speed is adjusted to the required range by the numerical control touch stepless governor, and the digital display operation status is observed;
6. Start the mixing experiment and monitor the running process.
7. After the experiment, turn off the power and remove the Impeller for cleaning and maintenance.
Notice
• Power supply voltage is AC 220 V 50 Hz to avoid equipment damage due to voltage mismatch;
• Check whether the Impeller installation is firm before operation to prevent peeling during operation;
• Choose the appropriate Impeller type and Rotation speed according to the viscosity and capacity of the medium to avoid overload operation;
• Pay attention to the digital display status when the equipment is running to ensure that the Rotation speed is within the range of 50~ 1500rpm;
• Avoid use in humid or flammable environments to ensure safe operation;
• Regularly clean and maintain equipment to maintain the aluminum metal casing and internal components in good condition.
• Impeller unloaded in time after use to prevent corrosion or damage to parts caused by long-term storage.
