Overview

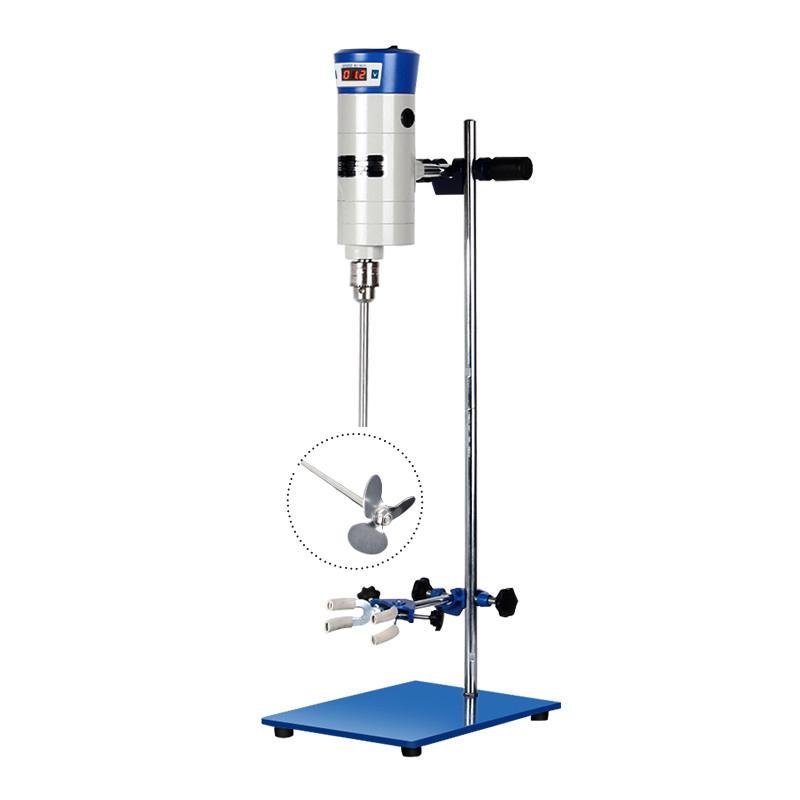

HUXI JB300-SH/20030091 digital display constant speed powerbasic stirrer is a liquid mixing and stirring equipment suitable for biological, physical and chemical, cosmetics, health products, food and other experimental fields. The product design is novel, the manufacturing process is professional, the low-speed running torque output is large, the continuous use performance is good, the series micro motor is used to ensure safe and reliable operation, the numerical control touch stepless governor is convenient for speed regulation and digital display Rotation speed, which is an ideal equipment for scientific research, product development, quality control and production process application in factories, scientific research institutions, Universities & colleges and medical units.
Features
1. A wide variety of Impellers, various specifications, and a wide range of adaptations
2. Impeller special rolling head, easy to uninstall and operate
3. Open rack: wide selection of media containers, easy mixing and mixing
4. Various instrument specifications to meet the mixing requirements of different sample capacities and different viscosities
5. Segmental variable speed control: Rotation speed of experimental operation can be selected arbitrarily, with wide application range and convenient speed regulation
6. Aluminum metal casing ensures mechanical accuracy for long-lasting use and electrical performance for continuous use
7. The drive motor adopts a series micro motor with large Power and compact structure, which runs safely and reliably
8. Novel product design, professional manufacturing process, large torque output at low speed, good continuous use performance
9. Multi-stage Non-metallic gears are used to transmit force, torque is doubled, running state is stable, and noise is low
Principle
The Stirrer is driven by a series-excited micro-motor and adopts a multi-stage Non-metallic gear transmission booster mechanism to double the torque and achieve stable operation and low noise. The control motion state adopts a numerical control touch stepless governor, which can adjust the Rotation speed arbitrarily and display the running status digitally to ensure the correct data collection.
Applications
Biological, physical and chemical, cosmetics, health products, food and other experimental fields, factories, scientific research institutions, Universities & colleges, medical units
Steps
1. Choose the right Impeller according to the experimental needs
2. Install the Impeller with a special rolling head to ensure convenient and flexible unloading
3. Place the Stirrer on the open rack and select the appropriate media container
4. Rotation speed required by numerical control touch stepless governor
5. Observe the digital display Rotation speed status and start stirring operation
6. Turn off the power after the experiment is completed, and remove the Impeller for cleaning and maintenance
Notice
• Power supply voltage AC 220 V 50 Hz before use
• Select the appropriate Impeller specification based on sample volume and viscosity
• Ensure that the special rolling head is firmly fixed when installing the Impeller
• Rotation speed should be gradually adjusted from low speed to required
• Pay attention to the temperature of the equipment during continuous use to avoid overheating
• Regularly check the abrasion of multi-stage Non-metallic gears
• Please disconnect the power supply during cleaning and maintenance to ensure safety
