Overview

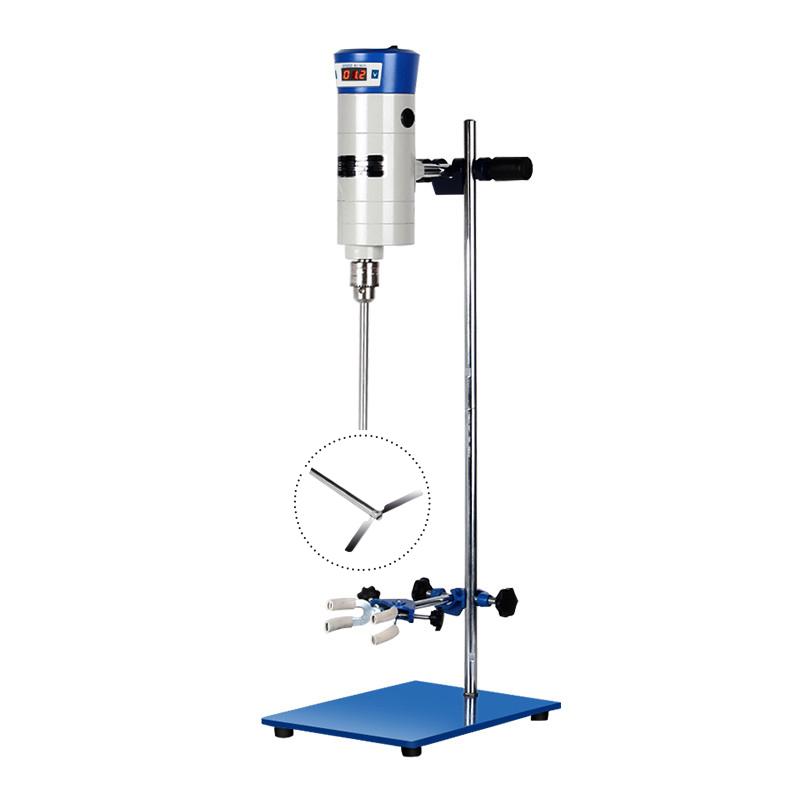

HUXI JB300-SH/20030005 digital display constant speed powerbasic stirrer is a liquid mixing and stirring equipment suitable for biological, physical and chemical, cosmetics, health products, food and other experimental fields. The product design is novel and the manufacturing process is professional. It has the characteristics of large torque output at low speed and good continuous use performance. It adopts a series micro motor to ensure safe and reliable operation. The numerical control touch stepless governor is convenient for speed regulation and digital display Rotation speed. It is an ideal equipment for scientific research, product development, quality control and production process in factories, scientific research institutions, Universities & colleges and medical units.
Features
1. Impellers have a wide range of types, specifications and adaptations;
2. Impeller special rolling head, easy to uninstall and operate;
3. Open rack: media container with wide selectivity, easy mixing and mixing;
4. Instrument specifications are diverse to meet the mixing requirements of different sample capacities and viscosities.
5. Segmental variable speed control: Rotation speed of experimental operation can be selected arbitrarily, with wide application range and convenient speed regulation;
6. Aluminum metal casing ensures mechanical accuracy for long-term use and electrical performance for continuous use;
7. The drive motor adopts a series micro motor with large Power and compact structure, which runs safely and reliably;
8. Novel product design, professional manufacturing process, large torque output at low speed, good continuous use performance;
9. Multi-stage Non-metallic gears are used to transmit force, torque is doubled, running state is stable, and noise is low;
Principle
The Stirrer is powered by a drive motor and uses a multi-stage Non-metallic gear transmission booster mechanism to double the torque, ensuring stable operation and low noise. The control motion state adopts a numerical control touch stepless governor to realize arbitrary Rotation speed adjustment, and the running Rotation speed status is displayed digitally to ensure correct data collection.
Applications
Biology, Physicochemistry, Cosmetics, Health Products, Food, Factories, Research Institutions, Universities & colleges, Medical Units
Steps
1. Select the appropriate Impeller according to the experimental requirements;
2. Use a special rolling head to install the Impeller to ensure flexible unloading;
3. Place the Stirrer on the open rack and select the appropriate media container.
4. Connect the power supply and start the device.
5. Rotation speed required by numerical control touch stepless governor;
6. Observe the digital display Rotation speed status, mixing operation;
7. After the experiment, turn off the power and remove the Impeller for cleaning.
Notice
• Power supply voltage is AC 220 V 50 Hz to avoid voltage mismatch;
• Pay attention to large torque output during low-speed operation to avoid overload;
• Check whether the Impeller installation is firm before use to prevent loosening;
• Select the appropriate Impeller and Rotation speed according to the viscosity and capacity of the medium;
• Pay attention to the temperature of the equipment during continuous use to avoid overheating;
• Disconnect power during cleaning and maintenance to ensure safety.
