Overview

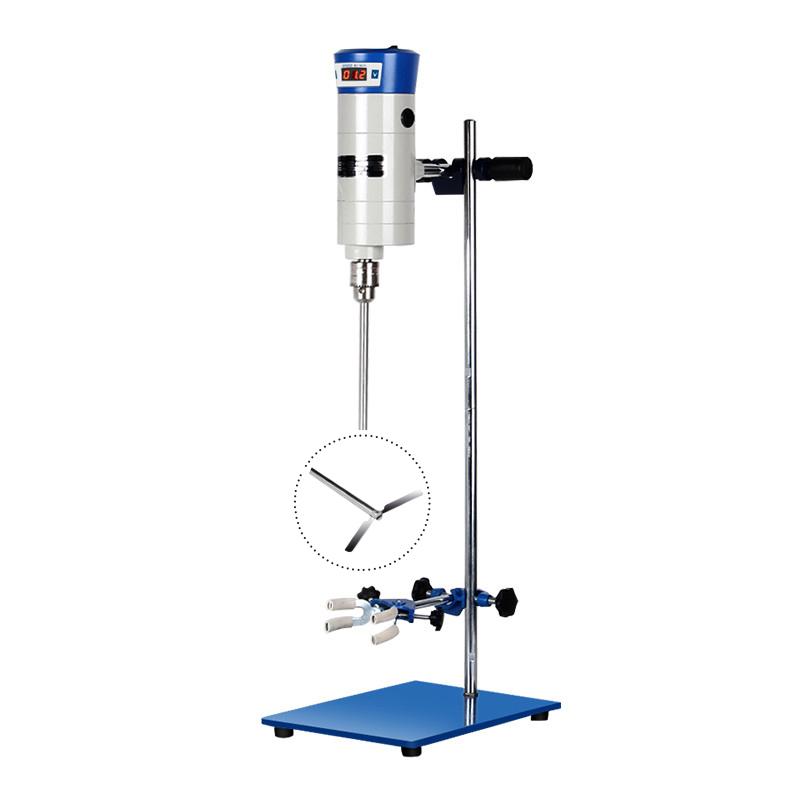

HUXI JB300-SH/20030073 digital display constant speed powerbasic stirrer is a liquid mixing and stirring equipment suitable for biological, physical and chemical, cosmetics, health products, food and other experimental fields. The product design is novel, the manufacturing process is professional, the low-speed running torque output is large, the continuous use performance is good, the series micro motor is used to ensure safe and reliable operation, the numerical control touch stepless governor is convenient for speed regulation and digital display Rotation speed, which is an ideal equipment for scientific research, product development, quality control and production process application in factories, scientific research institutions, Universities & colleges and medical units.
Features
1. A wide variety of Impellers, various specifications, and a wide range of adaptations
2. Impeller special rolling head, easy to uninstall and operate
3. Open rack: wide selection of media containers, easy mixing and mixing
4. Various instrument specifications to meet the mixing requirements of different sample capacities and different viscosities
5. Segmental variable speed control: Rotation speed of experimental operation can be selected arbitrarily, with wide application range and convenient speed regulation
6. Aluminum metal casing ensures mechanical accuracy for long-lasting use and electrical performance for continuous use
7. The drive motor adopts a series micro motor with large Power and compact structure, which runs safely and reliably
8. Novel product design, professional manufacturing process, large torque output at low speed, good continuous use performance
9. Multi-stage Non-metallic gears are used to transmit force, torque is doubled, running state is stable, and noise is low
Principle
The Stirrer is powered by a drive motor and uses a multi-stage Non-metallic gear transmission booster mechanism to double the torque for stable operation and low noise. The control motion state adopts a numerical control touch stepless governor, which can adjust the Rotation speed arbitrarily and display the running status digitally to ensure correct data collection. The special pin design of the stirringrod makes unloading easy and flexible.
Applications
Biological, physical and chemical, cosmetics, health products, food and other experimental fields, factories, scientific research institutions, Universities & colleges, medical units
Steps
1. Select the appropriate Impeller type and specification according to the experimental requirements
2. Install the Impeller with a special rolling head to ensure convenient and flexible unloading
3. Place the Stirrer on an open rack and select the appropriate media container
4. Connect the power supply and turn on the device.
5. Adjust the required Rotation speed through numerical control touch stepless governor, observe the digital display operation status
6. Start the mixing experiment and monitor the running process
7. Turn off the equipment after the experiment and remove the Impeller for cleaning and maintenance
Notice
• Power supply voltage meets AC 220 V 50 Hz requirements before use
• Select the appropriate Impeller type and specification based on sample volume and viscosity
• Use a special rolling head when installing the Impeller to ensure that it is firmly fixed
• Gradually adjust the speed through the stepless governor to avoid sudden high-speed start
• Pay attention to observe the digital display status during operation to ensure correct data collection
• Pay attention to the temperature of the equipment during continuous use to avoid overheating
• Disconnect the power supply during cleaning and maintenance to ensure safe operation
