Overview

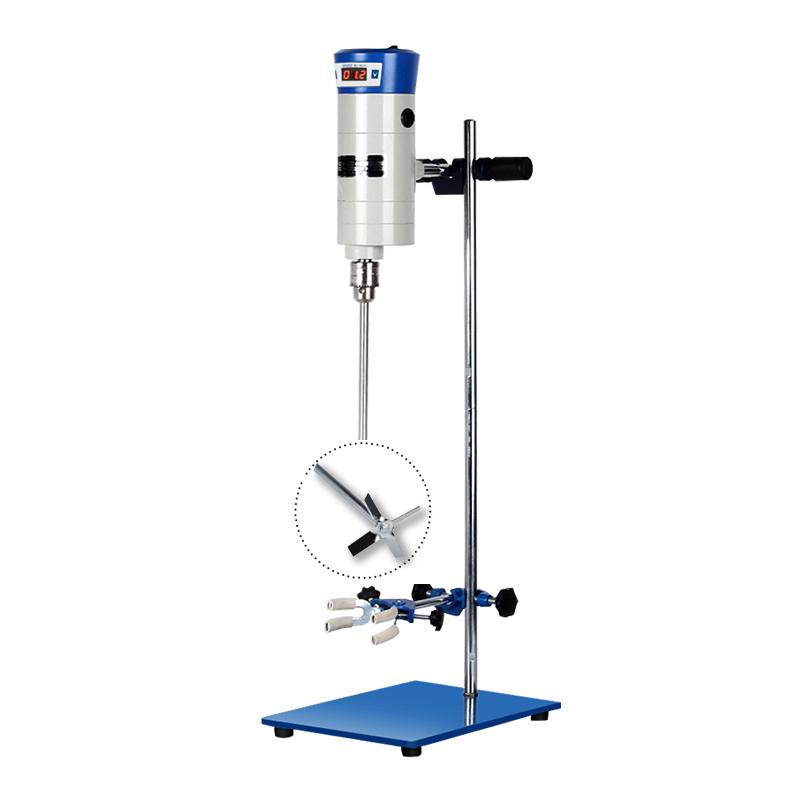

HUXI JB300-SH/20030035 digital display constant speed powerbasic stirrer is a liquid mixing and stirring equipment suitable for biological, physical and chemical, cosmetics, health products, food and other experimental fields. The product design is novel, the manufacturing process is professional, the low-speed running torque output is large, and the continuous use performance is good. The series micro motor is used to ensure safe and reliable operation. The numerical control touch stepless governor is convenient for speed regulation and digital display Rotation speed. It is an ideal equipment for scientific research, product development, quality control and production process in factories, scientific research institutions, Universities & colleges and medical units.
Features
1. Impellers have a wide range of types, specifications and adaptations;
2. Impeller special rolling head, easy to uninstall and operate;
3. Open rack: media container with wide selectivity, easy mixing and mixing;
4. Instrument specifications are diverse to meet the mixing requirements of different sample capacities and viscosities.
5. Segmental variable speed control: Rotation speed of experimental operation can be selected arbitrarily, with wide application range and convenient speed regulation;
6. Aluminum metal casing ensures mechanical accuracy for long-term use and electrical performance for continuous use;
7. The drive motor adopts a series micro motor with large Power and compact structure, which runs safely and reliably;
8. Novel product design, professional manufacturing process, large torque output at low speed, good continuous use performance;
9. Multi-stage Non-metallic gears are used to transmit force, torque is doubled, running state is stable, and noise is low;
Principle
The drive motor is powered by a series micro motor, and the torque is multiplied by a multi-stage Non-metallic gear transmission booster mechanism to ensure stable operation and low noise. The control motion state adopts a numerical control touch stepless governor to realize arbitrary Rotation speed adjustment, and the running Rotation speed status is displayed digitally to ensure correct data collection.
Applications
Biological, physical and chemical, cosmetics, health products, food and other experimental fields, factories, scientific research institutions, Universities & colleges, medical units
Steps
1. Select the appropriate Impeller type and specification according to the experimental requirements.
2. Use the Impeller special rolling head to install the Impeller to ensure convenient and flexible unloading;
3. Place the Stirrer on the open rack and select the appropriate media container.
4. Connect the power supply (AC 220 V 50 Hz);
5. Rotation speed (50~ 1500rpm range) set by numerical control touch stepless governor;
6. Start the equipment, observe the digital display Rotation speed status, and perform stirring operation;
7. After the experiment is completed, turn off the power and remove the Impeller for cleaning.
Notice
• Power supply voltage is AC 220 V 50 Hz to avoid equipment damage due to voltage mismatch;
• Select the appropriate Impeller type and Rotation speed according to the liquid viscosity and sample capacity to avoid overload operation;
• Use a special rolling head when installing and uninstalling the Impeller to ensure safe and flexible operation;
• Pay attention to observe the digital display Rotation speed when the equipment is running to ensure that the data collection is correct;
• Pay attention to the temperature of the equipment during continuous use to avoid overheating affecting the performance;
• Regularly check the aluminum casing and multi-stage Non-metallic gears to ensure mechanical accuracy and stable operation;
• Suitable for medium and low speed or medium high speed mixing, adjust Speed range according to Impeller type.
