Overview

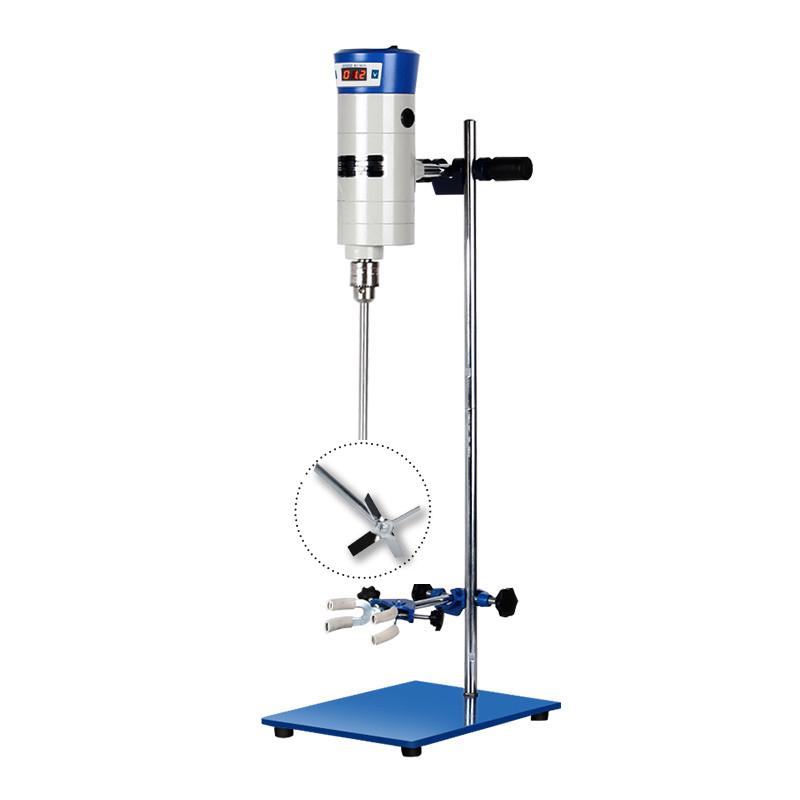

HUXI JB300-SH/20030038 digital display constant speed powerbasic stirrer is a liquid mixing and stirring equipment suitable for biological, physical and chemical, cosmetics, health products, food and other experimental fields. The product design is novel and the manufacturing process is professional. It adopts series micro-motor to provide high power output, low-speed running torque is large, continuous use performance is good, equipped with numerical control touch stepless governor and digital display, safe and reliable operation. It is an ideal equipment for scientific research, product development, quality control and production process in factories, scientific research institutions, Universities & colleges and medical units.
Features
1. Impellers have a wide range of types, specifications and adaptations;
2. Impeller special rolling head, easy to uninstall and operate;
3. Open rack: media container with wide selectivity, easy mixing and mixing;
4. Instrument specifications are diverse to meet the mixing requirements of different sample capacities and viscosities.
5. Segmental variable speed control: Rotation speed of experimental operation can be selected arbitrarily, with wide application range and convenient speed regulation;
6. Aluminum metal casing ensures mechanical accuracy for long-term use and electrical performance for continuous use;
7. The drive motor adopts a series micro motor with large Power and compact structure, which runs safely and reliably;
8. Novel product design, professional manufacturing process, large torque output at low speed, good continuous use performance;
9. Multi-stage Non-metallic gears are used to transmit force, resulting in a doubling of torque, stable operation, and low noise.
Principle
The Stirrer is driven by a series micro-motor and adopts a multi-stage Non-metallic gear transmission booster mechanism to double the torque and achieve stable operation and low noise. The control part adopts a numerical control touch stepless governor, which can adjust the Rotation speed arbitrarily, and monitors the running status in real time through digital display to ensure correct data collection. Impeller flexibly loads and unloads through a special tie to adapt to different experimental needs.
Applications
Biological, physical and chemical, cosmetics, health products, food and other experimental fields, factories, scientific research institutions, Universities & colleges, medical units
Steps
1. Select the appropriate Impeller type and specification according to the experimental requirements.
2. Use a special rolling head to install the Impeller on the equipment to ensure flexible unloading.
3. Place the media container under the open rack and adjust the position.
4. Connect the power supply and start the device.
5. Rotation speed set by numerical control touch stepless governor, observe the digital display to confirm the running status;
6. After running, turn off the power and remove the Impeller for cleaning.
Notice
• Power supply voltage is AC 220 V 50 Hz to avoid equipment damage due to voltage mismatch;
• Check whether the Impeller installation is firm before operation to prevent peeling during operation;
• Choose the appropriate Impeller type and Rotation speed according to the viscosity and capacity of the medium to avoid overload operation;
• Pay attention to the digital display when the equipment is running to ensure that the Rotation speed is within the range of 50~ 1500rpm;
• Impeller and case cleaning after use to maintain equipment hygiene and performance;
• Avoid use in humid or flammable environments to ensure safe operation;
• Regularly check the motor and gear mechanism to ensure stable operation and low noise.
