Overview

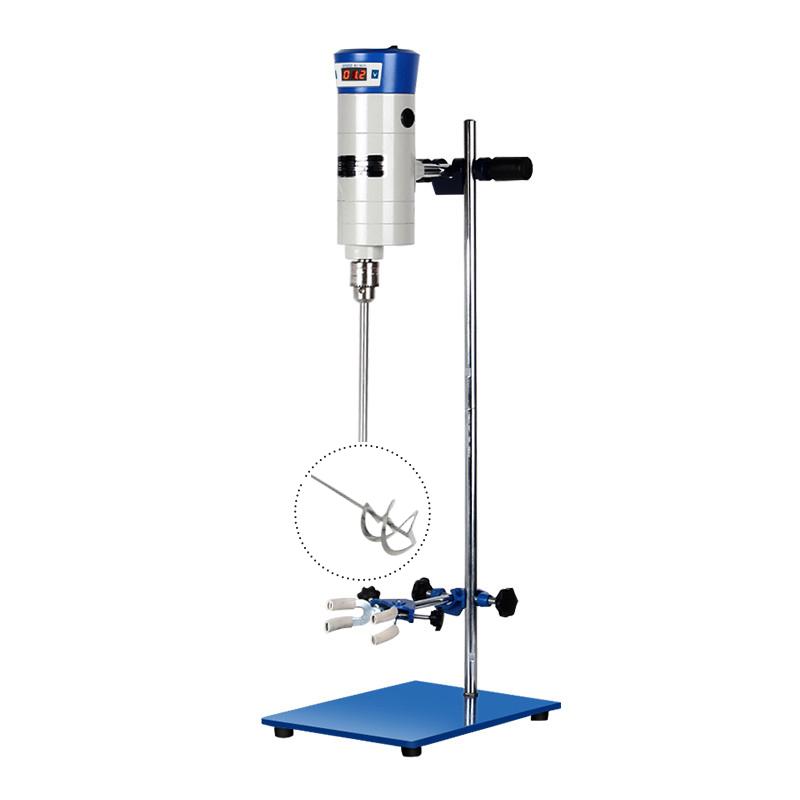

HUXI JB300-SH/20030080 digital display constant speed powerbasic stirrer is a liquid mixing and stirring equipment suitable for biological, physical and chemical, cosmetics, health products, food and other experimental fields. The product design is novel and the manufacturing process is professional. It has the characteristics of large torque output at low speed and good continuous use performance. It is an ideal equipment for scientific research, product development, quality control and production process application in factories, scientific research institutions, Universities & colleges and medical units.
Features
1. A wide variety of Impellers, various specifications, and a wide range of adaptations
2. Impeller special rolling head, easy to uninstall and operate
3. Open rack: wide selection of media containers, easy mixing and mixing
4. Various instrument specifications to meet the mixing requirements of different sample capacities and different viscosities
5. Segmental variable speed control: Rotation speed of experimental operation can be selected arbitrarily, with wide application range and convenient speed regulation
6. Aluminum metal casing ensures mechanical accuracy for long-lasting use and electrical performance for continuous use
7. The drive motor adopts a series micro motor with large Power and compact structure, which runs safely and reliably
8. Novel product design, professional manufacturing process, large torque output at low speed, good continuous use performance
9. Multi-stage Non-metallic gears are used to transmit force, torque is doubled, running state is stable, and noise is low
Principle
The drive motor adopts a series micro motor with large Power and compact structure, which runs safely and reliably; the control motion state adopts a numerical control touch type stepless governor, which is convenient for speed regulation, and the digital display of the running Rotation speed status, and the collection data is correct; the output booster mechanism adopts multi-stage Non-metallic gears to transmit booster force, and the torque increases exponentially.
Applications
Biological, physical and chemical, cosmetics, health products, food and other experimental fields, factories, scientific research institutions, Universities & colleges, medical units
Steps
1. Choose the right Impeller according to the experimental needs
2. Install the Impeller with a special rolling head to ensure convenient and flexible unloading
3. Place the Stirrer in a suitable experimental location
4. Connect the power supply and turn on the device.
5. Rotation speed required by numerical control touch stepless governor
6. Observe the digital display Rotation speed status to ensure that the data is correct
Step 7 Start the mixing experiment
Notice
• Please select the appropriate Impeller type and specification according to the experimental needs
• Ensure that the special rolling head is firmly fixed when installing the Impeller
• Select a suitable medium container for stirring and mixing
Speed range is between 50~ 1500rpm
• Power supply voltage AC 220V 50Hz
• Note that the device Max. Torque is 195N.cm
• Pay attention to the running status of the equipment when using it continuously
• Keep the equipment clean and maintain it regularly
