Overview

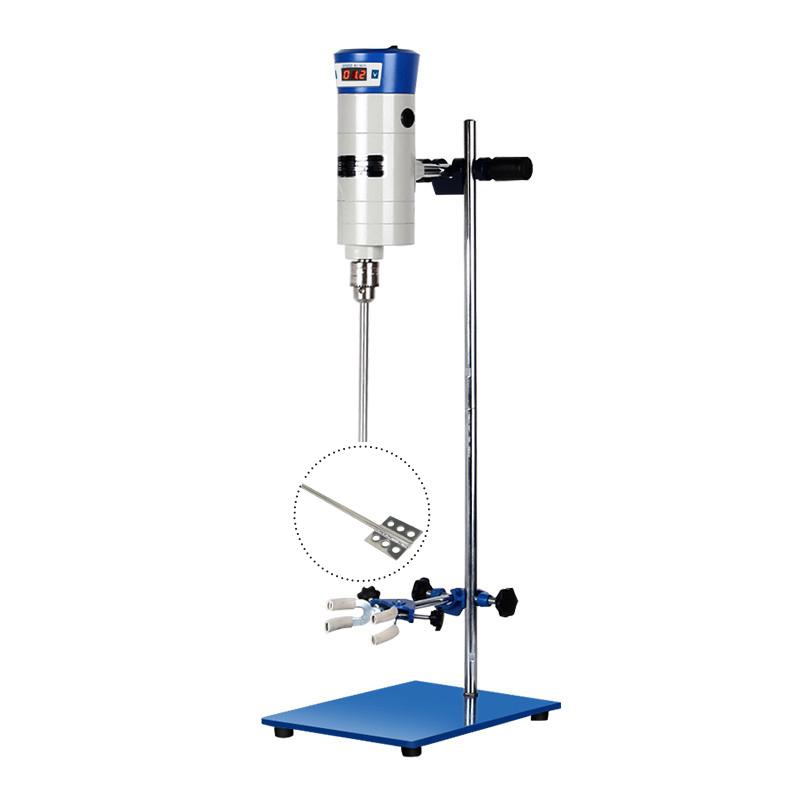

HUXI JB300-SH/20030095 digital display constant speed powerbasic stirrer is a liquid mixing and stirring equipment suitable for biological, physical and chemical, cosmetics, health products, food and other experimental fields. The product design is novel and the manufacturing process is professional. It is driven by a series micro motor and controlled by a numerical control touch stepless governor. It has the characteristics of large torque output at low speed, good continuous use performance, safe and reliable operation. It is an ideal equipment for scientific research, product development, quality control and production process application in factories, scientific research institutions, Universities & colleges and medical units.
Features
1. A wide variety of Impellers, various specifications, and a wide range of adaptations
2. Impeller special rolling head, easy to uninstall and operate
3. Open rack: wide selection of media containers, easy mixing and mixing
4. Various instrument specifications to meet the mixing requirements of different sample capacities and different viscosities
5. Segmental variable speed control: Rotation speed of experimental operation can be selected arbitrarily, with wide application range and convenient speed regulation
6. Aluminum metal casing ensures mechanical accuracy for long-lasting use and electrical performance for continuous use
7. The drive motor adopts a series micro motor with large Power and compact structure, which runs safely and reliably
8. Novel product design, professional manufacturing process, large torque output at low speed, good continuous use performance
9. Multi-stage Non-metallic gears are used to transmit force, torque is doubled, running state is stable, and noise is low
Principle
The Stirrer is powered by a series-excited micro-motor with large power and compact structure. It uses a numerical control touch stepless governor to control the motion state, and realizes arbitrary Rotation speed adjustment and digital display of the running state. The booster mechanism is transmitted through multi-stage Non-metallic gears to double the torque and ensure stable running state and low noise. The special pin design of the stirringrod makes it easy and flexible to unload and achieve efficient liquid mixing and stirring.
Applications
Biological, physical and chemical, cosmetics, health products, food and other experimental fields, factories, scientific research institutions, Universities & colleges, medical units
Steps
1. Select the appropriate Impeller type and specification according to the experimental requirements
2. Install the Impeller with a special roll head to ensure firm fixation
3. Place the Stirrer in a suitable position and connect it to the power supply
4. Rotation speed required by numerical control touch stepless governor
5. Observe the digital display Rotation speed status and start stirring operation
6. Turn off the power after the experiment is completed, and remove the Impeller for cleaning and maintenance
