Overview

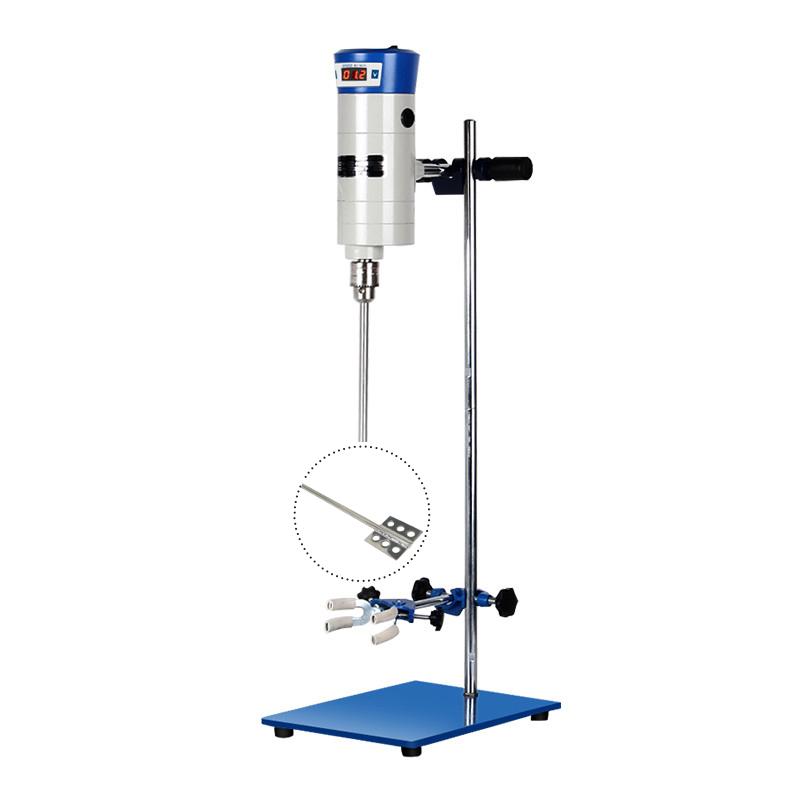

HUXI JB300-SH/20030063 digital display constant speed powerbasic stirrer is a laboratory special stirring equipment, suitable for biological, physical and chemical, cosmetics, health products, food and other experimental fields. The product design is novel, the manufacturing process is professional, the series micro motor provides high power output, low-speed running torque is large, continuous use performance is good, equipped with numerical control touch stepless governor and digital display function, safe and reliable operation.
Features
1. A wide variety of Impellers, various specifications, and a wide range of adaptations
2. Impeller special rolling head, easy to uninstall and operate
3. Open rack: wide selection of media containers, easy mixing and mixing
4. Various instrument specifications to meet the mixing requirements of different sample capacities and different viscosities
5. Segmental variable speed control: Rotation speed of experimental operation can be selected arbitrarily, with wide application range and convenient speed regulation
6. Aluminum metal casing ensures mechanical accuracy for long-lasting use and electrical performance for continuous use
7. The drive motor adopts a series micro motor with large Power and compact structure, which runs safely and reliably
8. Novel product design, professional manufacturing process, large torque output at low speed, good continuous use performance
9. Multi-stage Non-metallic gears are used to transmit force, torque is doubled, running state is stable, and noise is low
Principle
The Stirrer is powered by a series-excited micro-motor and uses a multi-stage Non-metallic gear transmission booster mechanism to double the torque. The motion state is controlled by a touch stepless governor through numerical control to achieve stepless speed regulation in the range of 50~ 1500rpm. Rotation speed status is displayed digitally to ensure correct data collection.
Applications
Biological, physical and chemical, cosmetics, health products, food and other experimental fields, factories, scientific research institutions, Universities & colleges, medical units
Steps
1. Select the appropriate Impeller and install it on the special rolling head
2. Place the Stirrer on a stable work surface
3. Connect the power supply (AC 220V 50Hz)
4. Rotation speed set by numerical control touch governor
5. Observe the digital display to confirm the running status
Step 6 Start the mixing experiment
7. Turn off the power after the experiment and remove the Impeller for cleaning
Notice
• Power supply voltage is AC 220V 50Hz
• Impeller should be firmly fixed on the special rolling head when installing
• Select the appropriate Impeller according to the medium viscosity and container size
• Pay attention to the digital display during operation to ensure stable Rotation speed
• Pay attention to the temperature of the equipment during continuous use to avoid overheating
• Disconnect the power supply when cleaning the Impeller to ensure safety
Equipment should be placed on a stable work surface for use
