Overview

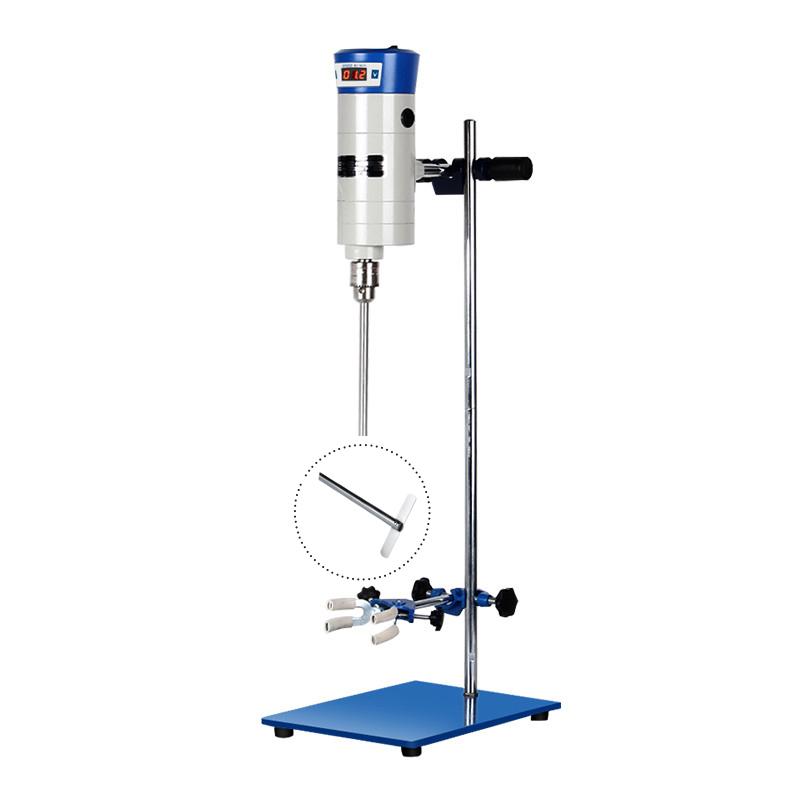

HUXI JB300-SH/20030031 Digital display constant speed powerbasic stirrer is a liquid mixing and stirring equipment suitable for biological, physical and chemical, cosmetics, health products, food and other experimental fields. Novel product design, professional manufacturing process, low-speed running torque output, continuous use of good performance, the use of series micro motor to ensure safe and reliable operation, numerical control touch stepless governor convenient speed regulation and digital display Rotation speed, multi-stage Non-metallic gear transmission force to make torque doubling, stable operation, low noise, stirringrod special head unloading simple and flexible, is the factory, scientific research institutions, Universities & colleges and medical units for scientific research, product development, quality control and production process application ideal equipment.
Features
1. Impellers have a wide range of types, specifications and adaptations;
2. Impeller special rolling head, easy to uninstall and operate;
3. Open rack: media container with wide selectivity, easy mixing and mixing;
4. Instrument specifications are diverse to meet the mixing requirements of different sample capacities and viscosities.
5. Segmental variable speed control: Rotation speed of experimental operation can be selected arbitrarily, with wide application range and convenient speed regulation;
6. Aluminum metal casing ensures mechanical accuracy for long-term use and electrical performance for continuous use;
7. The drive motor adopts a series micro motor with large Power and compact structure, which runs safely and reliably;
8. Novel product design, professional manufacturing process, large torque output at low speed, good continuous use performance;
9. Multi-stage Non-metallic gears are used to transmit force, torque is doubled, running state is stable, and noise is low;
Principle
The Stirrer is powered by a drive motor and adopts a multi-stage Non-metallic gear transmission booster mechanism to multiply the torque and achieve stable operation and low noise. The control motion state adopts a numerical control touch stepless governor, which can adjust the Rotation speed arbitrarily and display the running status digitally to ensure correct data collection. The stirringrod is fixed by a special tie head, which is easy and flexible to uninstall, and is suitable for mixing and stirring of various liquid media.
Applications
Biological, physical and chemical, cosmetics, health products, food and other experimental fields, factories, scientific research institutions, Universities & colleges, medical units
Steps
1. Select the appropriate Impeller type and specification according to the experimental requirements.
2. Use the Impeller special rolling head to install the Impeller to ensure convenient and flexible unloading;
3. Place the Stirrer on an open rack and select the appropriate media container.
4. Connect the power supply and turn on the device;
5. Rotation speed set by numerical control touch stepless governor, observe the digital display running status;
6. Start mixing and monitor the mixing process.
7. After the experiment, turn off the device and remove the Impeller for cleaning.
Notice
• Power supply voltage is AC 220 V 50 Hz to avoid mismatched power supply;
• Check whether the Impeller installation is firm before operation to prevent peeling during operation;
• Select the appropriate Impeller type and Rotation speed according to the liquid viscosity and sample capacity to avoid overload operation;
• Keep the surrounding environment clean when the equipment is running to avoid foreign objects entering and affecting the performance;
• Pay attention to monitoring the temperature of the equipment during continuous use to ensure that it is within a safe range;
• Regularly check the aluminum casing and multi-stage gear mechanism to maintain mechanical accuracy and electrical performance;
• Handle with care when unloading the Impeller to avoid damage to the special rolling head;
• Follow laboratory safety practices and wear appropriate protective equipment during operation.
