Overview

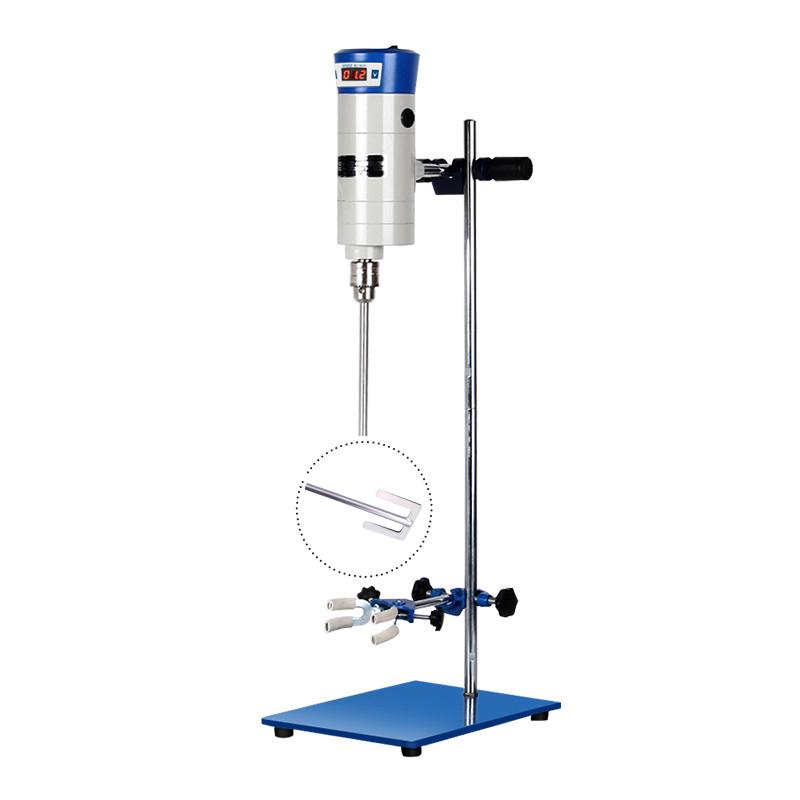

HUXI JB300-SH/20030006 digital display constant speed powerbasic stirrer is a laboratory stirring equipment, suitable for biological, physical and chemical, cosmetics, health products, food and other experimental fields, used for mixing and stirring of liquid experimental media. The product design is novel, the manufacturing process is professional, the low-speed running torque output is large, and the continuous use performance is good. The drive motor adopts a series micro motor with large Power and compact structure, which runs safely and reliably; the control motion state adopts a numerical control touch type stepless governor, which is convenient for speed regulation, digitally displays the running Rotation speed status, and collects data correctly; the output booster mechanism adopts multi-stage Non-metallic gears to transmit the booster force, which increases the torque exponentially, the running state is stable, and the noise is low; the stirringrod special tie head, which is easy and flexible to unload. It is a satisfactory equipment for scientific research, product development, quality control and production process applications in factories, scientific research institutions, Universities & colleges and medical units.
Features
1. Impellers have a wide range of types, specifications and adaptations;
2. Impeller special rolling head, easy to uninstall and operate;
3. Open rack: media container with wide selectivity, easy mixing and mixing;
4. Instrument specifications are diverse to meet the mixing requirements of different sample capacities and viscosities.
5. Segmental variable speed control: Rotation speed of experimental operation can be selected arbitrarily, with wide application range and convenient speed regulation;
6. Aluminum metal casing ensures mechanical accuracy for long-term use and electrical performance for continuous use;
7. The drive motor adopts a series micro motor with large Power and compact structure, which runs safely and reliably;
8. Novel product design, professional manufacturing process, large torque output at low speed, good continuous use performance;
9. Multi-stage Non-metallic gears are used to transmit force, torque is doubled, running state is stable, and noise is low;
Principle
The Stirrer provides power by driving the motor, and adopts a series-excited micro-motor to ensure safe and reliable operation; the control motion state realizes stepless speed regulation through numerical control of the touch stepless governor, and the digital display of the running Rotation speed status is convenient for data collection; the output booster mechanism uses multi-stage Non-metallic gears to transmit force, which doubles the torque to ensure stable operation and low noise; the stirringrod is unloaded through a special tie head, which is easy and flexible to operate and realizes efficient mixing and stirring.
Applications
Biology, Physicochemistry, Cosmetics, Health Products, Food, Factories, Research Institutions, Universities & colleges, Medical Units
Steps
1. Select the appropriate Impeller type and specification according to the experimental requirements.
2. Use the Impeller special rolling head to install the Impeller to ensure convenient and flexible unloading;
3. Place the Stirrer on an open rack and select the appropriate media container.
4. Connect the power supply and ensure that the voltage is AC 220 V 50 Hz.
5. Rotation speed required by numerical control touch stepless governor, range 50~ 1500rpm;
6. Start Stirrer and observe the digital display Rotation speed status;
7. Rotation speed is adjusted according to the experimental requirements, and mixing operation is carried out;
8. Turn off the power after use, remove the Impeller and clean the device.
Notice
- Power supply voltage is AC 220 V 50 Hz to avoid equipment damage due to voltage mismatch;
- Check whether the Impeller installation is firm before operation to prevent peeling during operation;
- Choose the appropriate Impeller type and Rotation speed according to the medium viscosity and capacity to avoid overload;
- Pay attention to the state of the equipment during operation, and immediately stop for inspection if there is any abnormal noise or vibration.
- Clean Impellers and Equipment in a timely manner after use to maintain hygiene;
- Avoid use in humid or flammable environments to ensure safe operation;
- Regularly check the mechanical and electrical components of the equipment to ensure long-term performance;
Adhere to laboratory safety regulations and wear appropriate protective gear.
