Overview

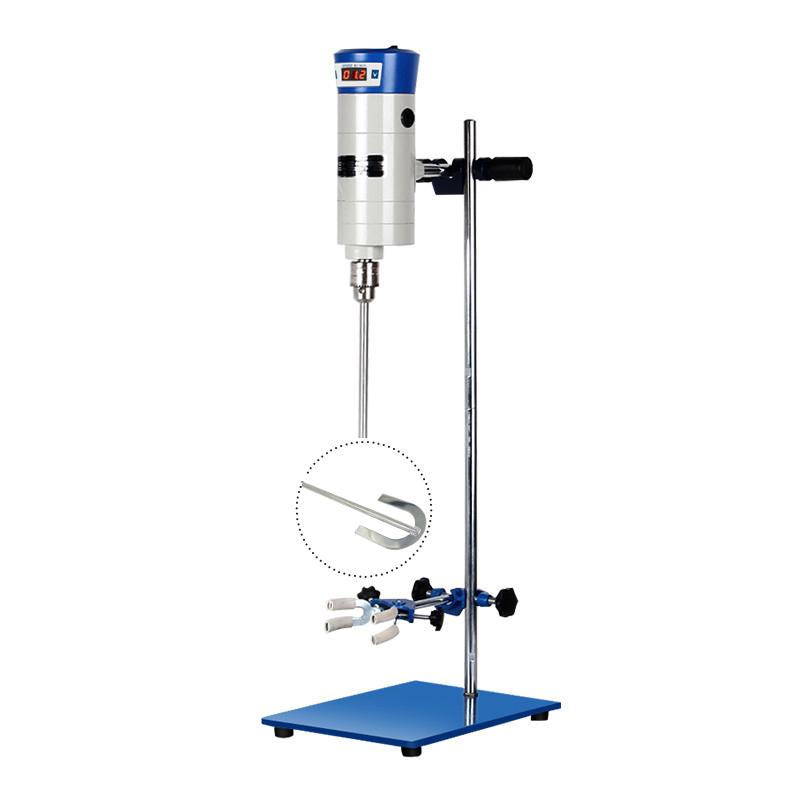

HUXI JB300-SH/20030093 digital display constant speed powerbasic stirrer is a liquid mixing and stirring equipment suitable for biological, physical and chemical, cosmetics, health products, food and other experimental fields. The product design is novel, the manufacturing process is professional, the low-speed running torque output is large, the continuous use performance is good, the series micro motor is used to ensure safe and reliable operation, the numerical control touch stepless governor is convenient for speed regulation and digital display Rotation speed. It is an ideal equipment for scientific research, product development, quality control and production process application in factories, scientific research institutions, Universities & colleges and medical units.
Features
1. Impellers have a wide range of types, specifications and adaptations;
2. Impeller special rolling head, easy to uninstall and operate;
3. Open rack: media container with wide selectivity, easy mixing and mixing;
4. Instrument specifications are diverse to meet the mixing requirements of different sample capacities and viscosities.
5. Segmental variable speed control: Rotation speed of experimental operation can be selected arbitrarily, with wide application range and convenient speed regulation;
6. Aluminum metal casing ensures mechanical accuracy for long-term use and electrical performance for continuous use;
7. The drive motor adopts a series micro motor with large Power and compact structure, which runs safely and reliably;
8. Novel product design, professional manufacturing process, large torque output at low speed, good continuous use performance;
9. Multi-stage Non-metallic gears are used to transmit force, torque is doubled, running state is stable, and noise is low;
Principle
The Stirrer is powered by a drive motor and uses a multi-stage Non-metallic gear transmission booster mechanism to double the torque for stable operation and low noise. The control motion state adopts a numerical control touch stepless governor, which can adjust the Rotation speed arbitrarily and display the running status digitally to ensure the correct data collection. The Impeller is flexibly loaded and unloaded through a special tie to adapt to different experimental needs.
Applications
Biological, physical and chemical, cosmetics, health products, food and other experimental fields, factories, scientific research institutions, Universities & colleges, medical units
Steps
1. Select the appropriate Impeller type and specification according to the experimental requirements.
2. Use a special rolling head to install the Impeller on the equipment to ensure flexible loading and unloading.
3. Place the media container under the open rack and adjust the position.
4. Connect the AC 220V 50Hz power supply;
5. Rotation speed (50~ 1500rpm range) set by numerical control touch stepless governor;
6. Start the device and observe the digital display Rotation speed status;
7. After stirring, turn off the equipment and remove the Impeller for cleaning.
Notice
• Power supply voltage is AC 220V 50Hz to avoid voltage mismatch;
• Select the appropriate Impeller type and Rotation speed according to the medium viscosity and container size;
• Pay attention to large torque output during low-speed operation to avoid overload;
• Monitor the operating status of the equipment during continuous use to ensure stable electrical performance;
• Use a special rolling head when loading and unloading the Impeller, and the operation needs to be cautious and flexible;
• Keep the aluminum metal casing clean to maintain mechanical accuracy;
• Pay attention to the noise level during operation, and check in time if there is any abnormality.
• Avoid use under conditions exceeding Processing capacity 85L or Max. Torque 195N.cm.
