Overview

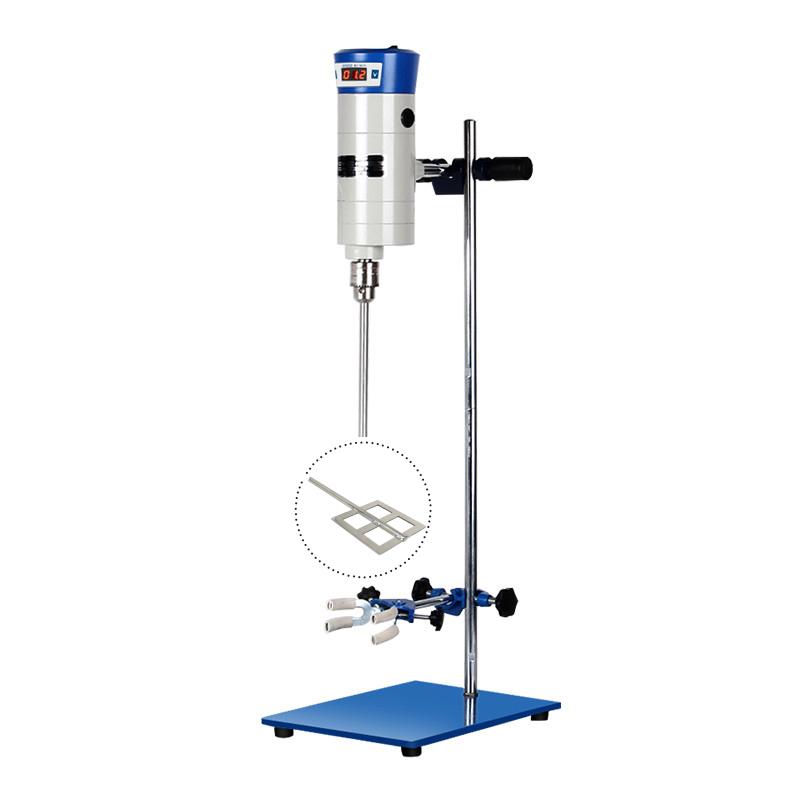

HUXI JB300-SH/20030081 digital display constant speed powerbasic stirrer is a special laboratory equipment, suitable for liquid mixing and stirring experiments in biology, physics and chemistry, cosmetics, health products, food and other fields. The product design is novel, the manufacturing process is professional, the low-speed running torque output is large, and the continuous use performance is good. It is an ideal equipment for factories, scientific research institutions, Universities & colleges and medical units to conduct scientific research, product development, quality control and production process applications.
Features
1. A wide variety of Impellers, various specifications, and a wide range of adaptations
2. Impeller special rolling head, easy to uninstall and operate
3. Open rack: wide selection of media containers, easy mixing and mixing
4. Various instrument specifications to meet the mixing requirements of different sample capacities and different viscosities
5. Segmental variable speed control: Rotation speed of experimental operation can be selected arbitrarily, with wide application range and convenient speed regulation
6. Aluminum metal casing ensures mechanical accuracy for long-lasting use and electrical performance for continuous use
7. The drive motor adopts a series micro motor with large Power and compact structure, which runs safely and reliably
8. Novel product design, professional manufacturing process, large torque output at low speed, good continuous use performance
9. Multi-stage Non-metallic gears are used to transmit force, torque is doubled, running state is stable, and noise is low
Principle
The Stirrer adopts numerical control touch stepless governor to control the motion state, which is convenient for speed regulation, and digitally displays the running Rotation speed status to ensure correct data collection. The drive motor adopts a series micro motor with large Power and compact structure, which is safe and reliable to operate. The output booster mechanism adopts multi-stage Non-metallic gears to transmit the booster, which doubles the torque, and the running state is stable and the noise is low.
Applications
Biological, physical and chemical, cosmetics, health products, food and other experimental fields
Standards
Power supply voltage: AC 220 V 50 Hz
Steps
1. Choose the right Impeller according to the experimental needs
2. Install the Impeller with a special rolling head to ensure convenient and flexible unloading
3. Place the Stirrer on an open rack and select the appropriate media container
4. Rotation speed required by numerical control touch stepless governor
5. Start the equipment for mixing operation
6. Observe the running Rotation speed status of the digital display and collect experimental data
Notice
• Please select the appropriate Impeller type and specification according to the experimental needs
• Ensure that the special rolling head is firmly fixed when installing the Impeller
• Select a suitable medium container for stirring operation
• When adjusting the speed, please use the numerical control touch stepless governor for stepless speed change control
• Pay attention to observe the running Rotation speed status of the digital display to ensure that the data collection is correct
• Pay attention to monitoring the operating status when the equipment is used continuously
Do not exceed the Max. Torque 195N.cm
• Power supply voltage AC 220 V 50 Hz
