Overview

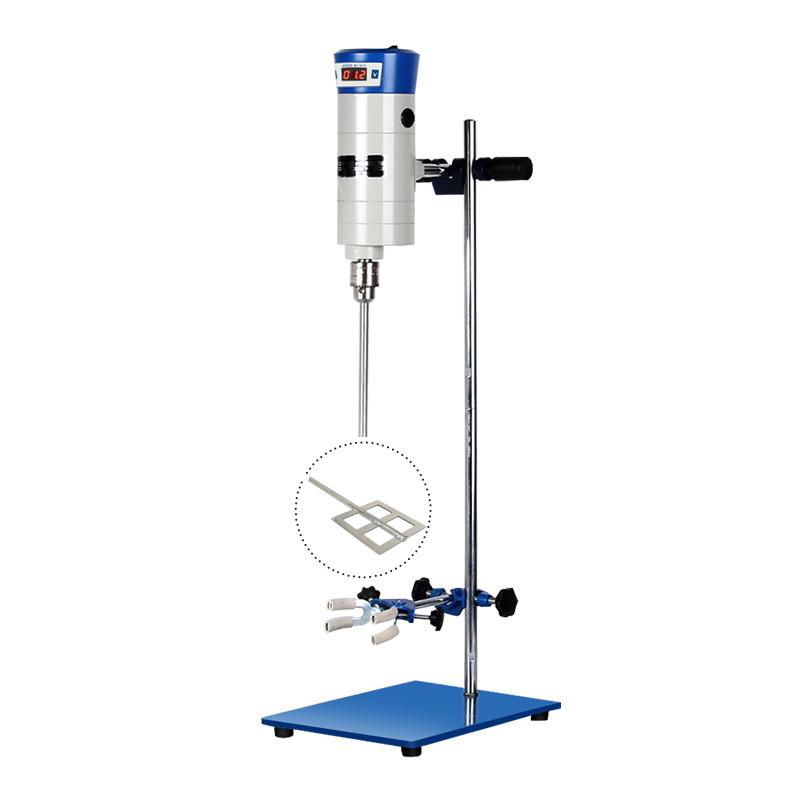

HUXI JB300-SH/20030083 digital display constant speed powerbasic stirrer is a liquid mixing and stirring equipment suitable for biological, physical and chemical, cosmetics, health products, food and other experimental fields. The product design is novel and the manufacturing process is professional. It has the characteristics of large torque output at low speed and good continuous use performance. It adopts a series micro motor to ensure safe and reliable operation. The numerical control touch stepless governor is convenient for speed regulation and digital display Rotation speed. It is an ideal equipment for scientific research, product development, quality control and production process in factories, scientific research institutions, Universities & colleges and medical units.
Features
1. A wide variety of Impellers, various specifications, and a wide range of adaptations
2. Impeller special rolling head, easy to uninstall and operate
3. Open rack: wide selection of media containers, easy mixing and mixing
4. Various instrument specifications to meet the mixing requirements of different sample capacities and different viscosities
5. Segmental variable speed control: Rotation speed of experimental operation can be selected arbitrarily, with wide application range and convenient speed regulation
6. Aluminum metal casing ensures mechanical accuracy for long-lasting use and electrical performance for continuous use
7. The drive motor adopts a series micro motor with large Power and compact structure, which runs safely and reliably
8. Novel product design, professional manufacturing process, large torque output at low speed, good continuous use performance
9. Multi-stage Non-metallic gears are used to transmit force, torque is doubled, running state is stable, and noise is low
Principle
The Stirrer is powered by a drive motor and uses a multi-stage Non-metallic gear transmission booster mechanism to double the torque for stable operation and low noise. The control motion state adopts a numerical control touch stepless governor, which can adjust the Rotation speed arbitrarily and display the running status digitally to ensure correct data collection. The special pin design of the stirringrod makes it easy and flexible to unload, and the open rack allows a wide selection of media containers for stirring and mixing.
Applications
Biological, physical and chemical, cosmetics, health products, food and other experimental fields, factories, scientific research institutions, Universities & colleges, medical units
Steps
1. Select the appropriate Impeller type and specification according to the experimental requirements
2. Install the Impeller with a special rolling head to ensure convenient and flexible unloading
3. Place the Stirrer on an open rack and select the appropriate media container
4. Connect the power supply (AC 220 V 50 Hz)
5. Rotation speed required by numerical control touch stepless governor (50~ 1500rpm range)
6. Start the device and observe the running Rotation speed status of the digital display
7. Turn off the power after stirring and remove the Impeller for cleaning
Notice
• Power supply voltage AC 220 V 50 Hz before use
• Select the appropriate Impeller type and specification based on sample volume and viscosity
• Use a special rolling head when installing the Impeller to ensure that it is firmly fixed
• When adjusting the speed, it should be stepless within the range of 50~ 1500rpm
Processing capacity should not exceed 85L
• Pay attention to the running status of the equipment during continuous use to avoid overload
• Disconnect the power supply during cleaning and maintenance
