Overview

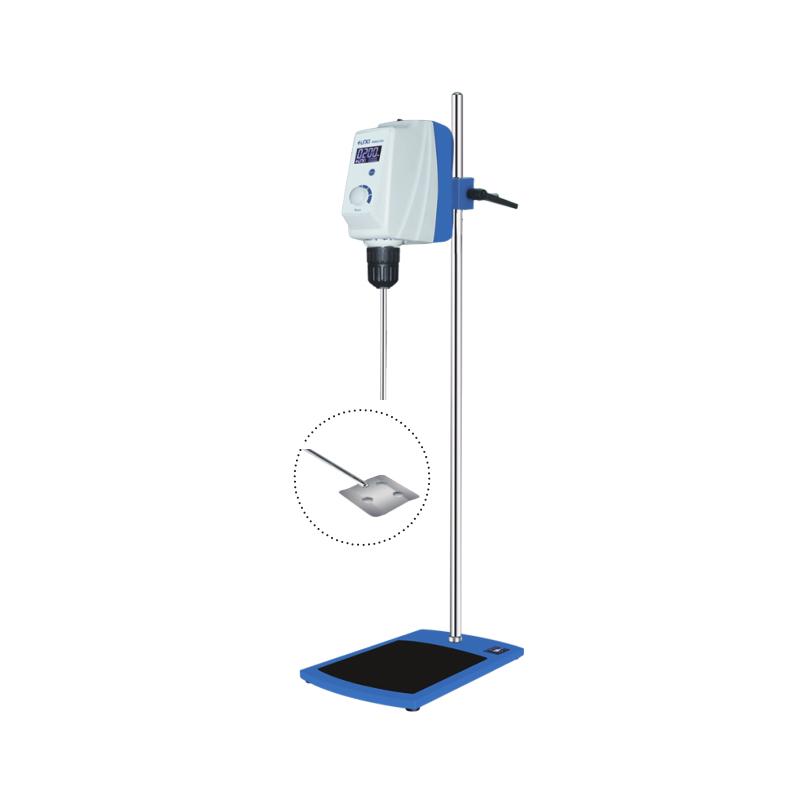

HUXI LCD top-mounted Stirrer (model RWD50/20030041/20030012) is a laboratory equipment suitable for mixing medium and high viscosity liquids. The product adopts LCD display and self-locking chuck design, which is more high-end safety than LED series. It can handle high load and long-term continuous work. It has automatic protection function for overload and abnormal conditions to ensure laboratory safety.
Features
1. LCD screen display, Rotation speed and time can be coarsely adjusted, Working time can be fine-tuned under working conditions
2. Speed range 30-2200rpm, constant Rotation speed, high and low speed controllable
3. Adopt brushless DC motor for long-term safe operation
4. Overload and motor protection, if there is an abnormality, automatically cut off the circuit and alarm
5. Configure Impeller penetration hole, no need to adjust the installation height of the instrument
6. The torque can be automatically adjusted according to the sample viscosity
7. Multiple Impellers and Bracket Available
Principle
The Stirrer drives the Impeller swirl/spin with a brushless DC motor to mix solid-liquid, liquid-liquid or medium to high viscosity samples. With stepless speed regulation, the torque can be automatically adjusted according to the viscosity of the sample to ensure the mixing effect.
Applications
Chemical synthesis, physical and chemical analysis, petrochemical, cosmetics, health products, food, biotechnology
Steps
1. Select the right Impeller and install it
Step 2 Connect the power supply
3. Rotation speed and Working time set by LCD screen
4. Start Stirrer for mixing operations
5. Turn off the power after the work is completed
Notice
• Power supply voltage 100-240VAC before use
• Ambient Temperature should be kept within 5-40 ℃
• The relative humidity should not exceed 80%
• Note that the clamping diameter of the Impeller ranges from 0.5 to 10mm
• When there is a failure, the device will automatically stop and display the fault information
• Do not use under conditions exceeding the maximum viscosity of 10000mPa · s
• Please pay attention to safety measures when using
